Charnwood 305DB 305mm Double Bevel Mitre Saw

Charnwood 305DB - 305mm Double Bevel Mitre Saw

• 12" Sliding compound double bevel mitre saw
• Twin Bar Bearing Guided Sliding Head
• Double Bevel Facility

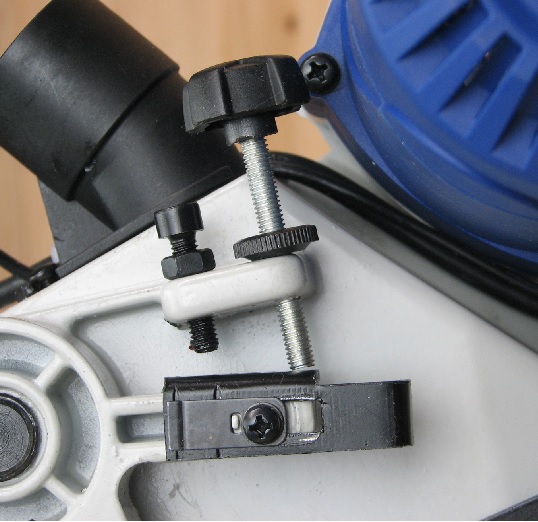

• Adjustable Trenching Stop
• Twin Laser Guide Precision
• Built-in Carrying Handle
• Spindle Lock For Blade Changing

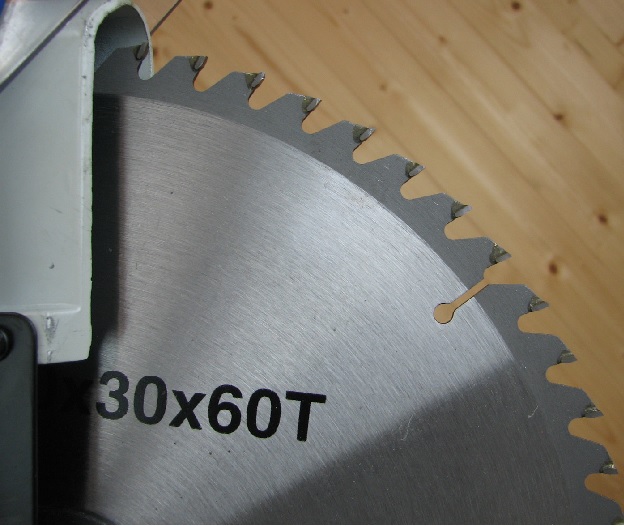

• 60 Tooth TCT Blade Included
• Vertical Work Clamp Included
• Horizontal Work Clamp Included
• Retractable Extension Wings Included
• Dust Collection Bag Included

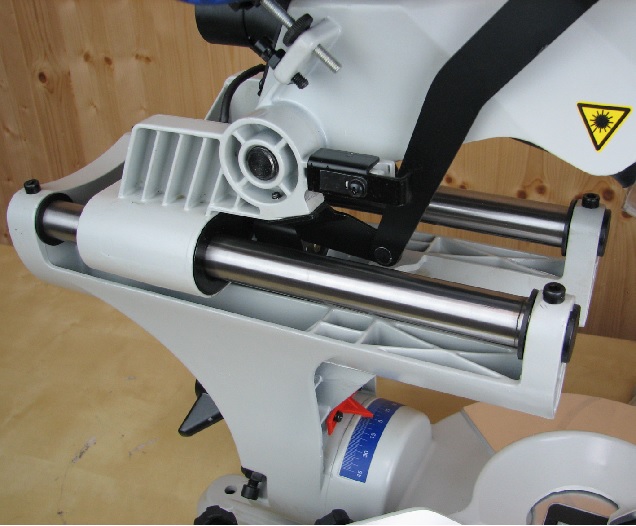

• The design of this double bevel mitre saw gives a huge cutting capacity but uses clever design to minimise the amount of space it requires in the workshop. To create the compact size, the two guide bars remain stationary and the head slides along the bars on smooth linear bearings.

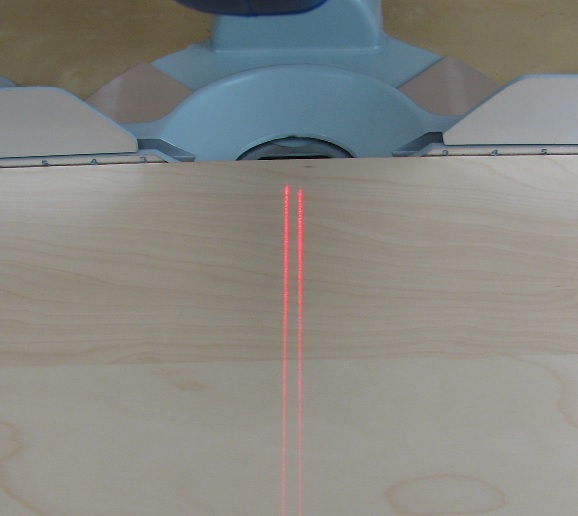

• The mitre saw is capable of a 4" deep cut in timber and a width of over 12". To speed up cutting we include a mains powered (no batteries!) twin laser guide with one laser aligned to each side of the blade. Pencil lines drawn on timber ready to cut can quickly be lined up with the blade.

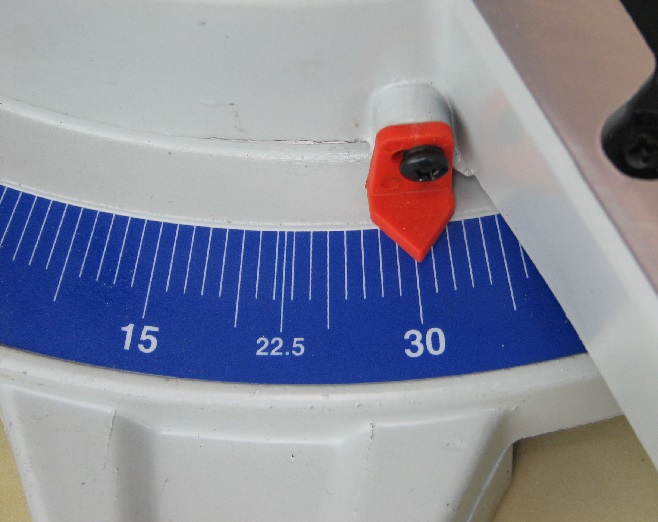

• The required mitre angle can be quickly and accurately locked in, using the large comfy rubber grip at the front of the table. A large scale marked out in degrees allows any angle up to 48 degrees left or right to be set and locked off, although the most commonly used angles are pre-set and will engage automatically.

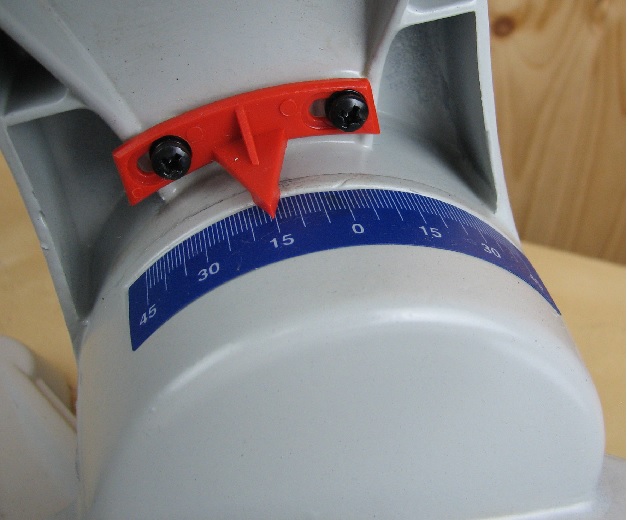

• The double bevel feature which allows the blade to tilt to the left or right is a great benefit when doing jobs requiring lots of bevel cuts such as fitting skirting boards. Any angle can be locked off, although once again the most commonly used angled have pre-set stops which locate automatically.

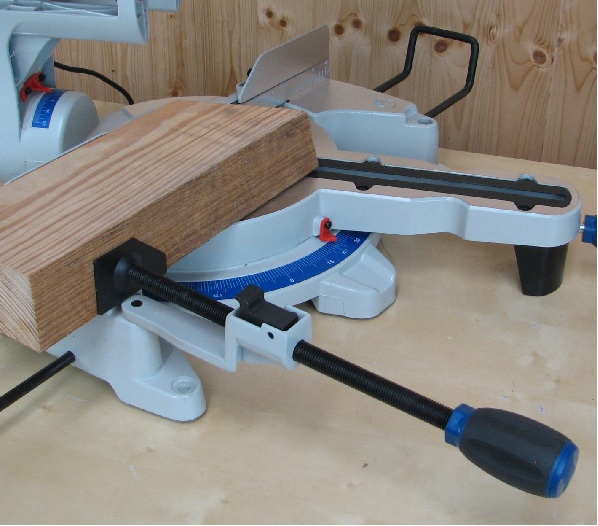

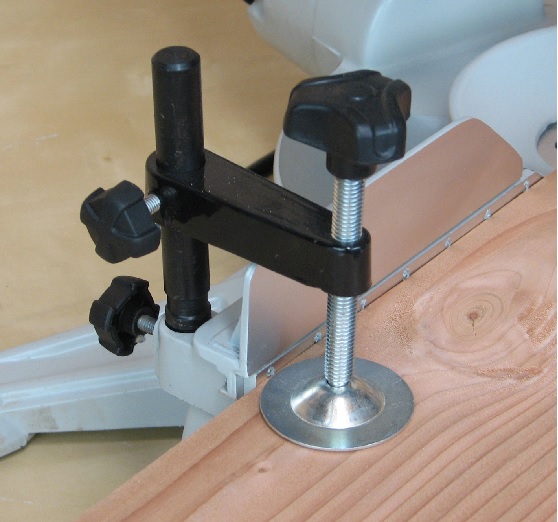

• The vertical clamp for holding the work piece down to the table can be fitted on either side of the blade, has a capacity of 105mm, particularly useful when working with longer timbers. In addition there is a horizontal clamp for holding timber up against the back fence. The clamp has a capacity of 220mm with a quick action adjusting system and a strong screw thread lock.

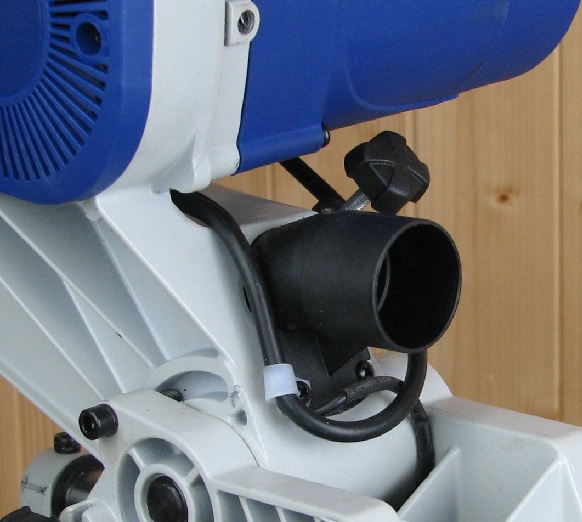

• The base has four rubber feet, which are removable to reveal four fixing points for securing the mitre saw to a workshop bench, workmate or quick action clamps for use with a saw stand. The dust bag provided will collect some dust but whenever possible it is recommended an extractor is connected to the outlet. Depending on the diameter of the hose on the extractor, an adapter or Reducer will be required.
• Supplied with 60 tooth TCT blade, 40mm diameter extraction outlet, dust collection bag, vertical work clamp, horizontal work clamp, left & right work piece supports, cable and plug.

• Motor (Carbon Brush) 2000w, 240v
• Blade Diameter 305mm
• Blade Bore 30mm
• Blade Speed 4500rpm
• Depth of Cut at 90 degrees 105mm
• Depth of Cut at 45 degree bevel 65mm
• Width of Cut at 90 degrees 340mm
• Width of Cut at 45 degree mitre 240mm
• Blade Mitre Adjustment 0-48 Left & Right
• Pre-set Mitre Angles 0, 15, 22.5, 30, 45
• Blade Bevel Adjustment 0-45 Left & Right
• Pre-set Bevel Angles 0, 15, 30, 45
• Dimensions (W x D x H) 930mm x 850mm x 760mm
• Weight 24Kg
• Rating Hobby
• Warranty 1 Year
