Shogun JPS1 Ultimate Japanese Pull Saw Package

X
Product Code: CH/JPS1-PK
Brand: SHOGUN
Stock Available
Delivery typically 3-4 days
Was £94.00 Inc. VAT
Now £75.00!
£62.50 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
SHOGUN

Sogun JPS1 Ultimate Japanese Pull Saw Package

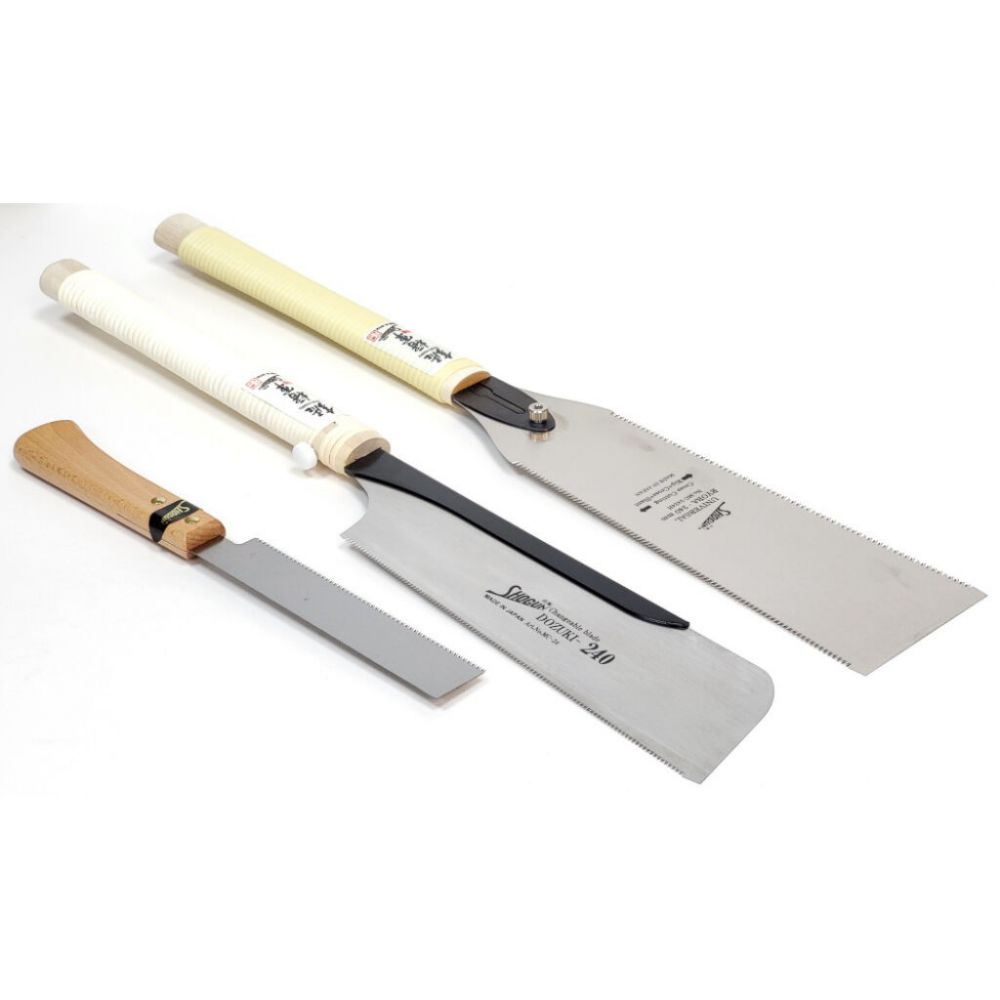

Items included

  • Shogun MC2424H - Shogun Japanese 240mm Ryoba Double Edged Saw
  • Shogun MC24 - Shogun 240mm Dozuki Saw
  • Shogun FL150 - Shogun Japanese 150mm Flush Cut Pull Saw

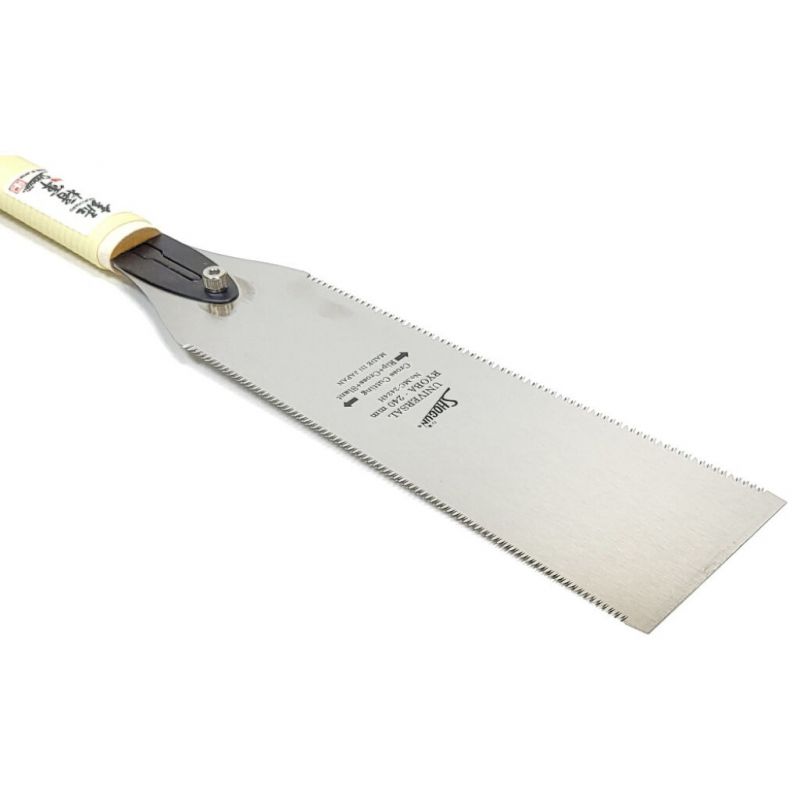

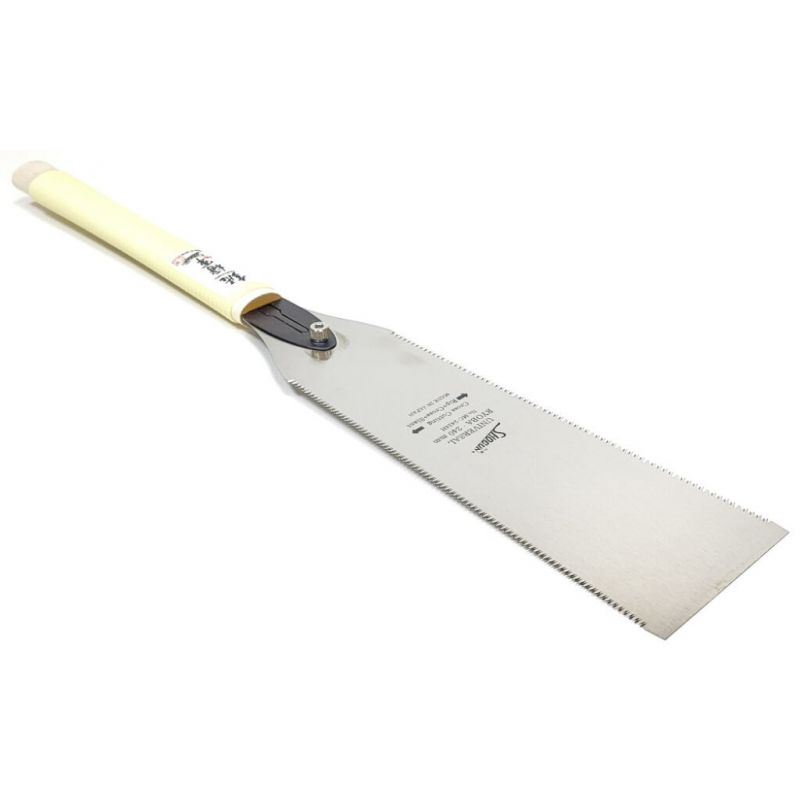

Shogun Japanese 240mm Ryoba Double Edged Saw - (Ref: MC2424H)



Key Features

  • Possibly the most versatile of all the Japanese saws, the Shogun Ryoba, double edged saw, is a true all round work horse for carpentry and Joinery.
  • The blade is a little thicker than most in the range allowing a very aggressive feed rate when you want to cut fast, but still retaining the legendary accuracy of Japanese tools.
  • The high quality blade is nickel plated to resist corrosion and resin build up. It is equally at home in softwoods, hardwoods, green or oily timbers.

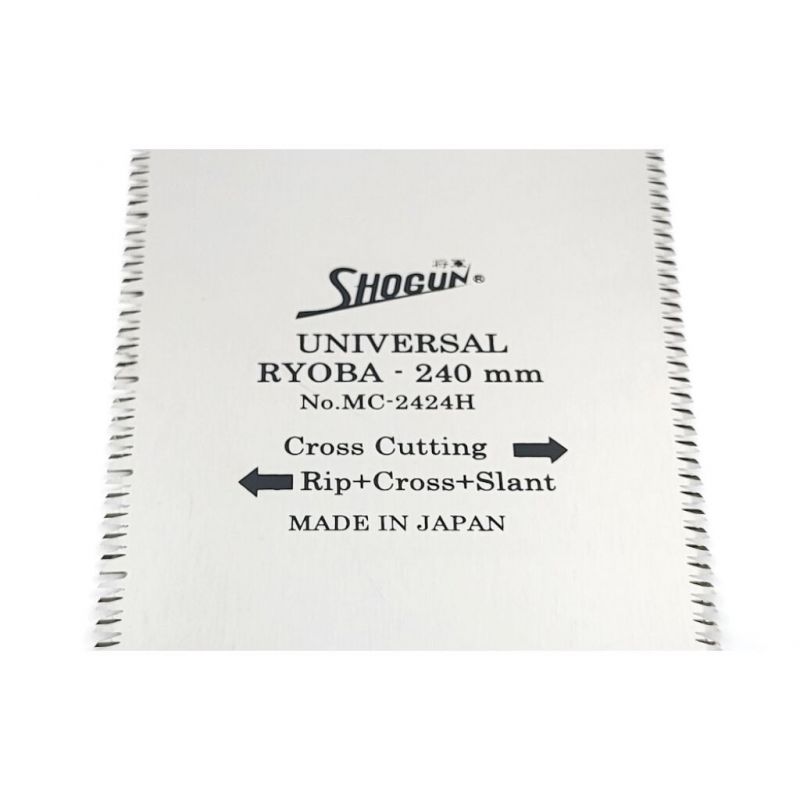

  • The Ryoba saw has two cutting edges, with differing tooth patterns. They are clearly marked for Cross Cutting and Rip cutting.

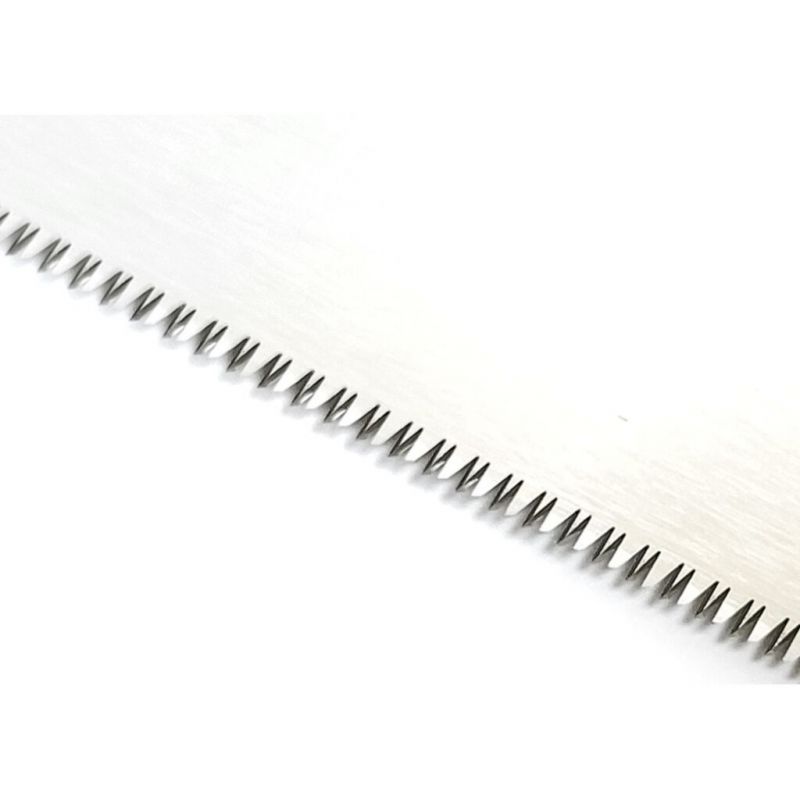

  • The Cross Cutting edge has 16tpi toothing.

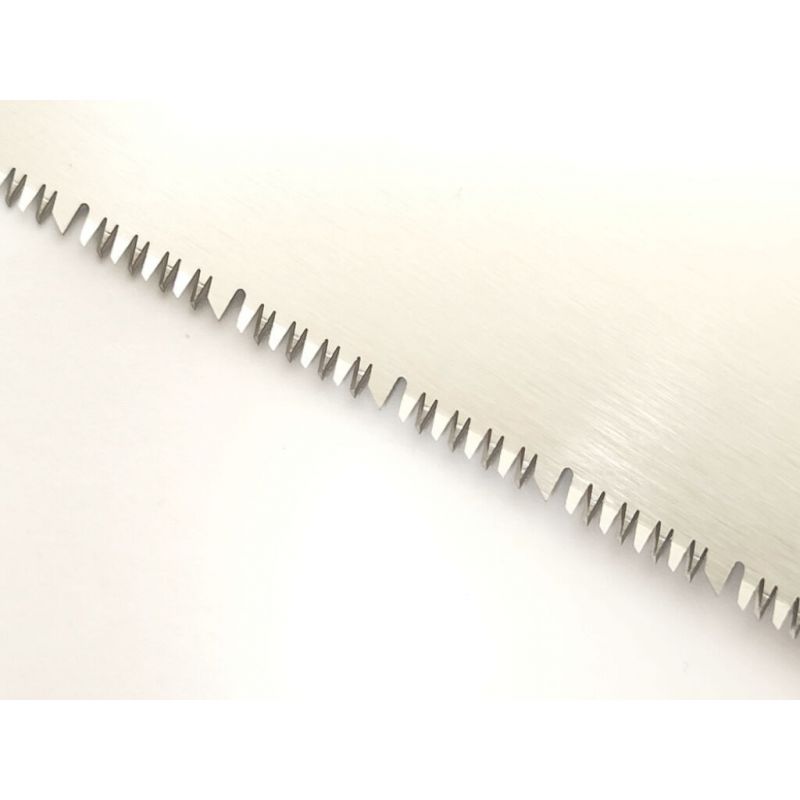

  • The Rip cutting edge has 10tpi toothing with periodic pairs of rip teeth that act as rakers. The result is highly efficient waste clearance which helps keep the cut on track. It can be used for rip, cross and slant cuts.
  • The 240mm blade fixes to a traditional rattan wrapped paulownia wooden handle that offers fantastic control.
  • Japanese saws are made from very high quality steel with hard and long lasting teeth. With a little care the saw will last for many years of daily use. They should not be considered disposable like the Western equivalents.



Specification

  • Blade Length: 240mm
  • Blade Thickness: (Plate) 0.6mm
  • Blade Thickness (Kerf): 0.7mm & 0.9mm
  • Cross Cutting Edge: 1.45mm (16tpi)
  • Rip Cutting Edge: 1.75mm (10tpi)
  • Overall Length; 600mm
  • For a shorter length, more economical version of this saw, look at M-180R.

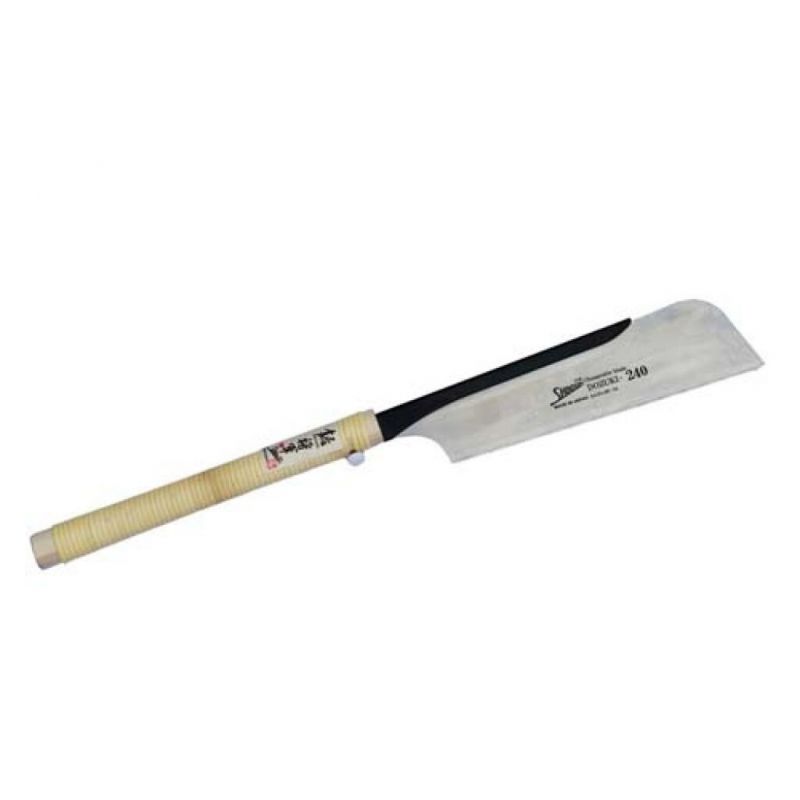

Shogun Japanese Precision Dozuki Saw 240mm - (Ref: MC24)



Key Features

  • One of the most popular of the Japanese saws, is the Dozuki style precision saw. It has a back spine which supports the blade during the pull cut allowing an incredibly thin plate to be used, only 0.3mm.
  • The thin plate means less material is removed and so the resulting cut requires very little effort whilst giving very high accuracy and a smooth finish, thanks to the fine 20tpi tooth pattern.
  • Applications include dovetailing, tenoning, cross-cutting, box making and general cabinet making.
  • The MC24 is the larger brother to our best selling mini Dozuki saw MP150.
  • This Dozuki saw can cut to a depth up to 50mm, so is suitable for cutting tenon shoulders.
  • The blade fixes to a traditional rattan wrapped paulownia wooden handle that offers fantastic control.



Specification

  • Blade Length: 240mm
  • Blade Thickness (Plate): 0.3mm
  • Blade Thickness (Kerf): 0.45mm
  • Toothing: 1mm (25tpi)
  • Maximum Cutting Depth: 50mm
  • Overall Length: 560mm

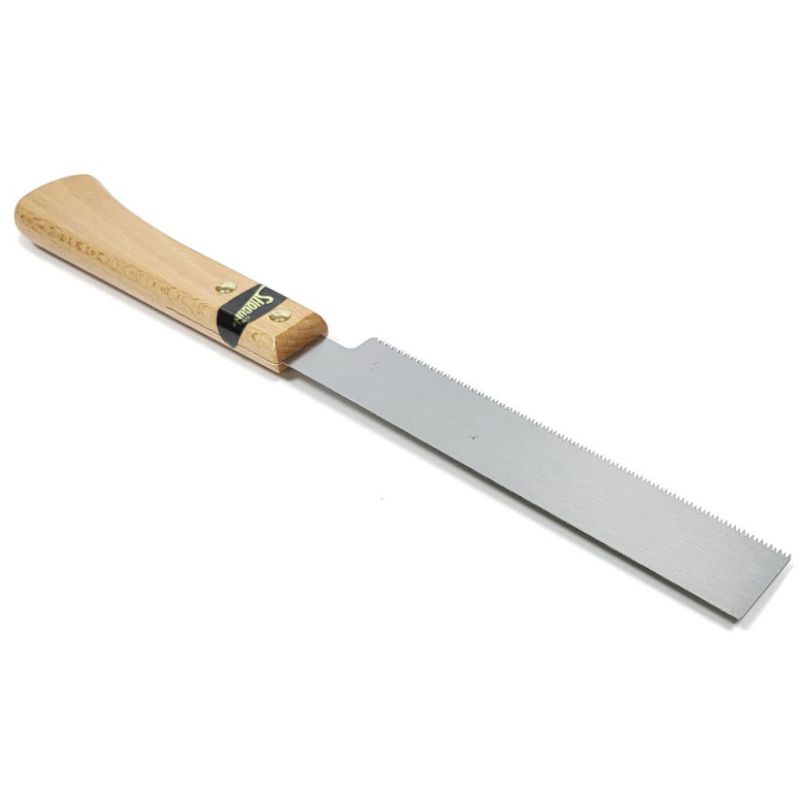

Shogun Japanese 150mm Flush Cut Pull Saw - (Ref: FL150)



Key Features

  • The Shogun FL150 flush cut pull saw features a 150mm long ultra thin flexible blade with no set.

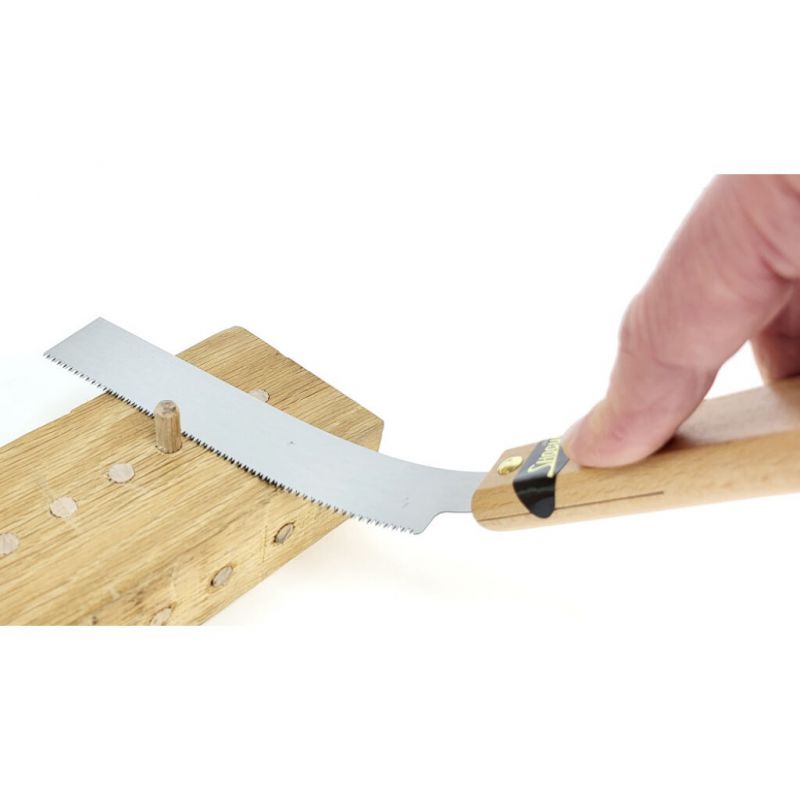

  • Specifically designed for the flush trimming of wooden dowels and plugs without the risk of scratching the surrounding surface.
  • The highly flexible blade allows access into tight corners.
  • A wooden handle provides a comfortable grip.
  • Woodturners use these saws as an alternative parting tool.

Specification
  • Overall Length: 240mm
  • Blade Length: 150mm
  • Blade Thickness: 0.5mm
  • Kerf: 0.5mm
  • Tooth Spacing: 1.2mm (21tpi)



Japanese Saws Explained

Items Included
Click For Bigger Image
1 X Shogun MC2424H - Shogun Japanese 240mm Ryoba Double Edged Saw
Click For Bigger Image
1 X Shogun MC24 - Shogun 240mm Dozuki Saw
Click For Bigger Image
1 X Shogun FL150 - Shogun Japanese 150mm Flush Cut Pull Saw
