Shogun JPS2 Starter Japanese Pull Saw Package

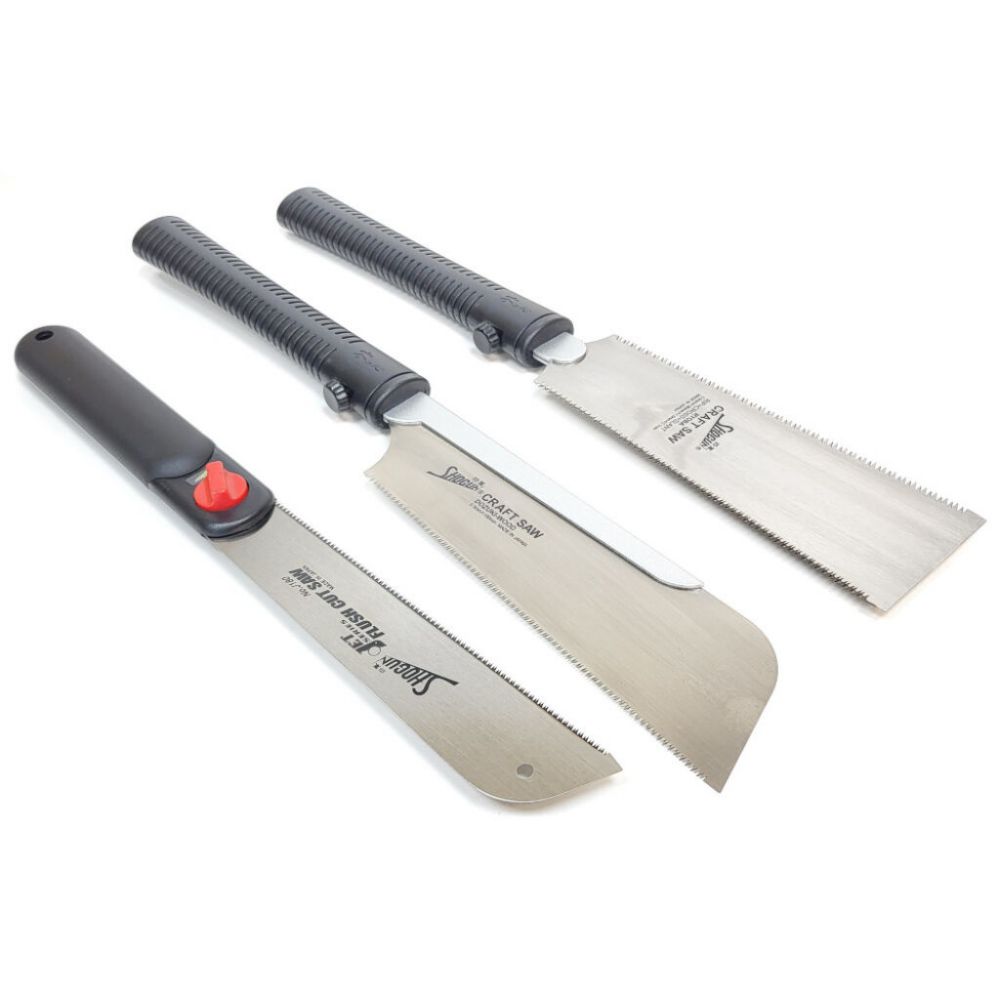

Shogun JPS2 Starter Japanese Pull Saw Package

• Shogun M-180R - Shogun Japanese 180mm Ryoba Double Edged Saw
• M-190D - Shogun Japanese Precision Dozuki Craft Pull Saw 190mm
• Shogun J-180 - Shogun 180mm Flush Cut Pull Saw

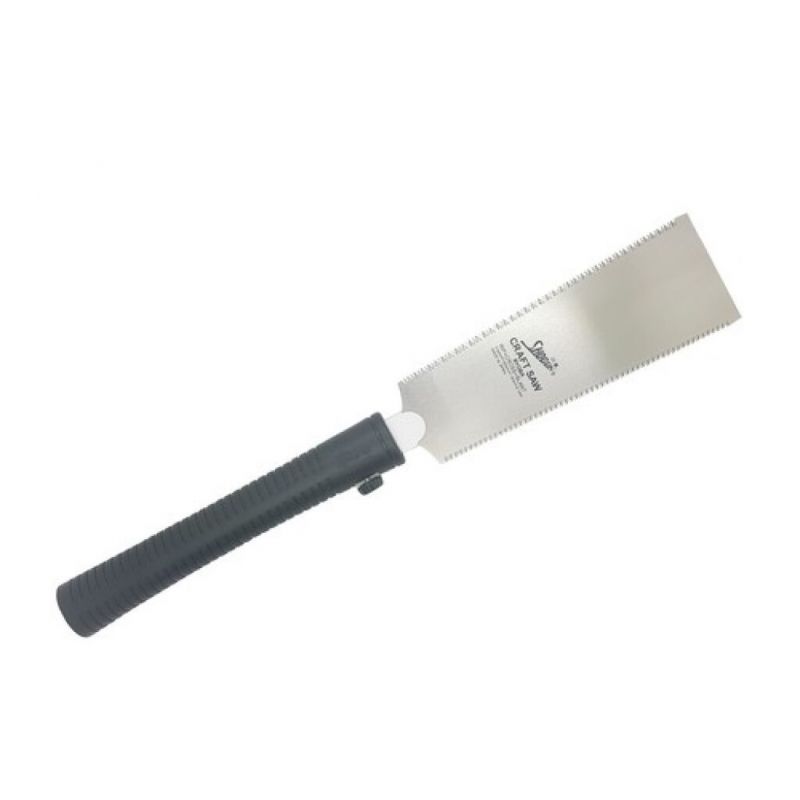

Shogun Japanese 180mm Ryoba Double Edged Saw - (Ref: M-180R)

• Possibly the most versatile of all the Japanese saws, the Shogun Ryoba, double edged saw, is a true all round work horse for carpentry and Joinery.
• The blade is a little thicker than most in the range allowing a very aggressive feed rate when you want to cut fast, but still retaining the legendary accuracy of Japanese tools.
• The high quality blade is nickel plated to resist corrosion and resin build up. It is equally at home in softwoods, hardwoods, green or oily timbers.
• The Ryoba saw has two cutting edges, with differing tooth patterns. The finer 16tpi toothing for crosscutting and 10tpi for rip cutting.
• The 180mm blade fixes to an economic and durable plastic handle.
• Japanese saws are made from very high quality steel with hard and long lasting teeth. With a little care the saw will last for many years of daily use. They should not be considered disposable like the Western equivalents.

• Blade Length: 180mm
• Blade Thickness (Plate): 0.6mm
• Blade Thickness (Kerf): 0.9mm
• Cross Cutting Edge: 1.5mm (17tpi)
• Rip Cutting Edge: 2.14mm (12tpi)
• Overall Length: 390mm
• For a longer length version of this saw, look at MC2424H.

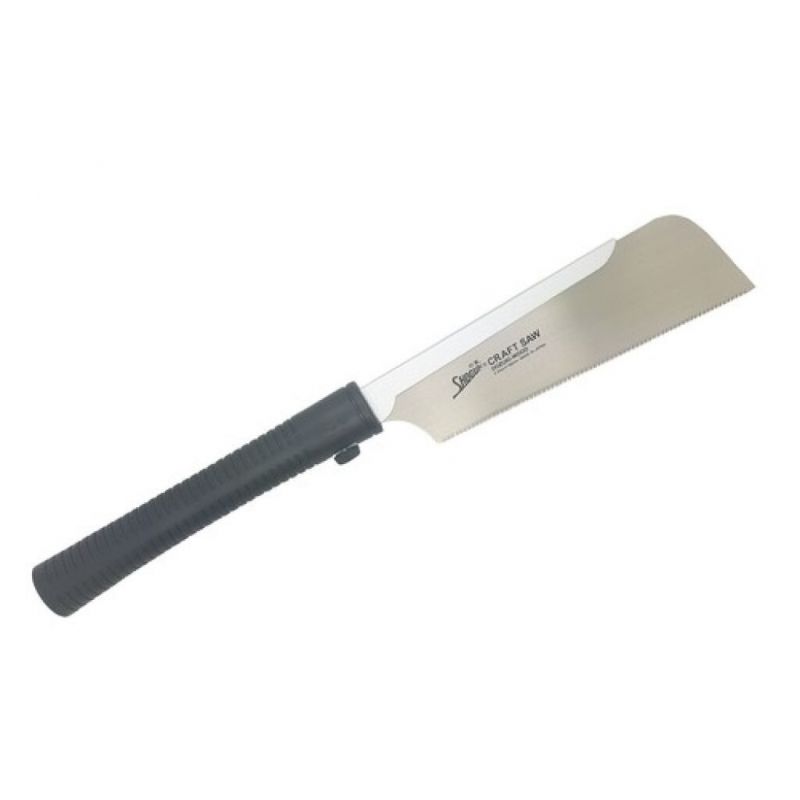

Shogun Japanese Precision Dozuki Craft Pull Saw 190mm - (Ref: M-190D)

• One of the most popular of the Japanese saws, is this Dozuki style precision saw. It has a back spine which supports the blade during the pull cut allowing an incredibly thin plate to be used, only 0.3mm.
• The thin plate means less material is removed and so the resulting cut requires very little effort whilst giving very high accuracy and a smooth finish.
• Applications include dovetailing, tenoning, cross-cutting, box making and general cabinet making.
• This medium sized Dozuki saw can cut to a depth up to 40mm. The blade fixes to a comfortable plastic handle.

• Blade Length: 190mm
• Blade Thickness (Plate): 0.3mm
• Blade Thickness (Kerf): 0.5mm
• Toothing: 1.25mm (20tpi)
• Maximum Cutting Depth: 40mm
• Overall Length: 410mm

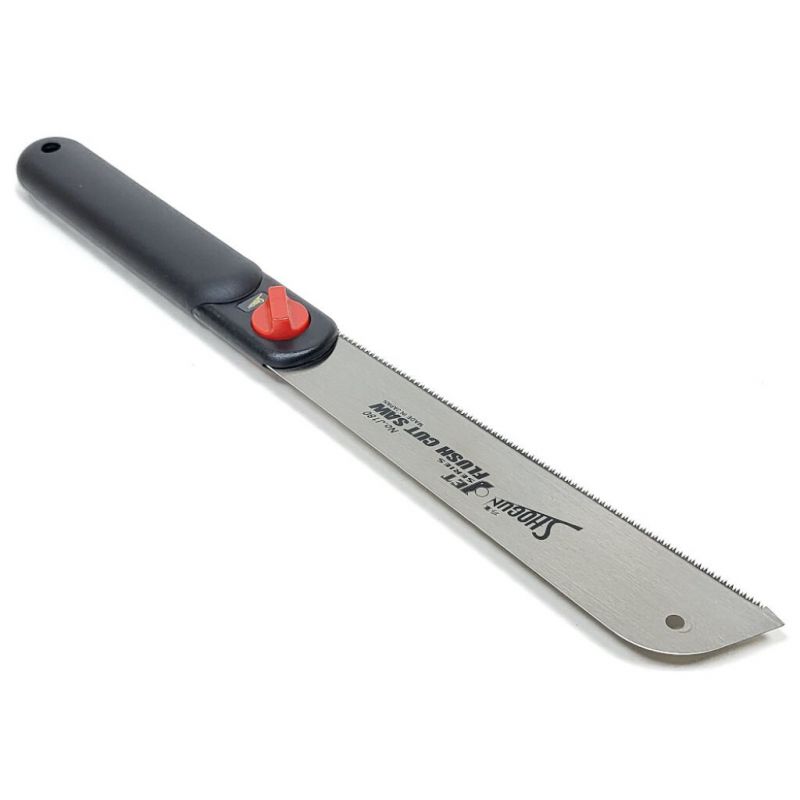

Shogun 180mm Flush Cut Pull Saw - (Ref: J-180)

• Flush cut pull saw with a very thin blade designed to accurately cut dovetails, tenon shoulders, trim dowel and any other small precision cuts.
• As the teeth have very little set, the cut surface is very smooth and scratching the surface of the wood is minimised.
• Electrical-pulse hardened teeth to maintain sharpness up to 3 times longer than conventional saws.
• Comfortable plastic handle.

• Blade Length: 180mm
• Overall Length: 355mm
• Blade Thickness: 0.4mm
• Kerf: 0.5mm
• Tooth Spacing: 1.07mm (24tpi)
