Shogun JPS3 Mini Japanese Pull Saw Package

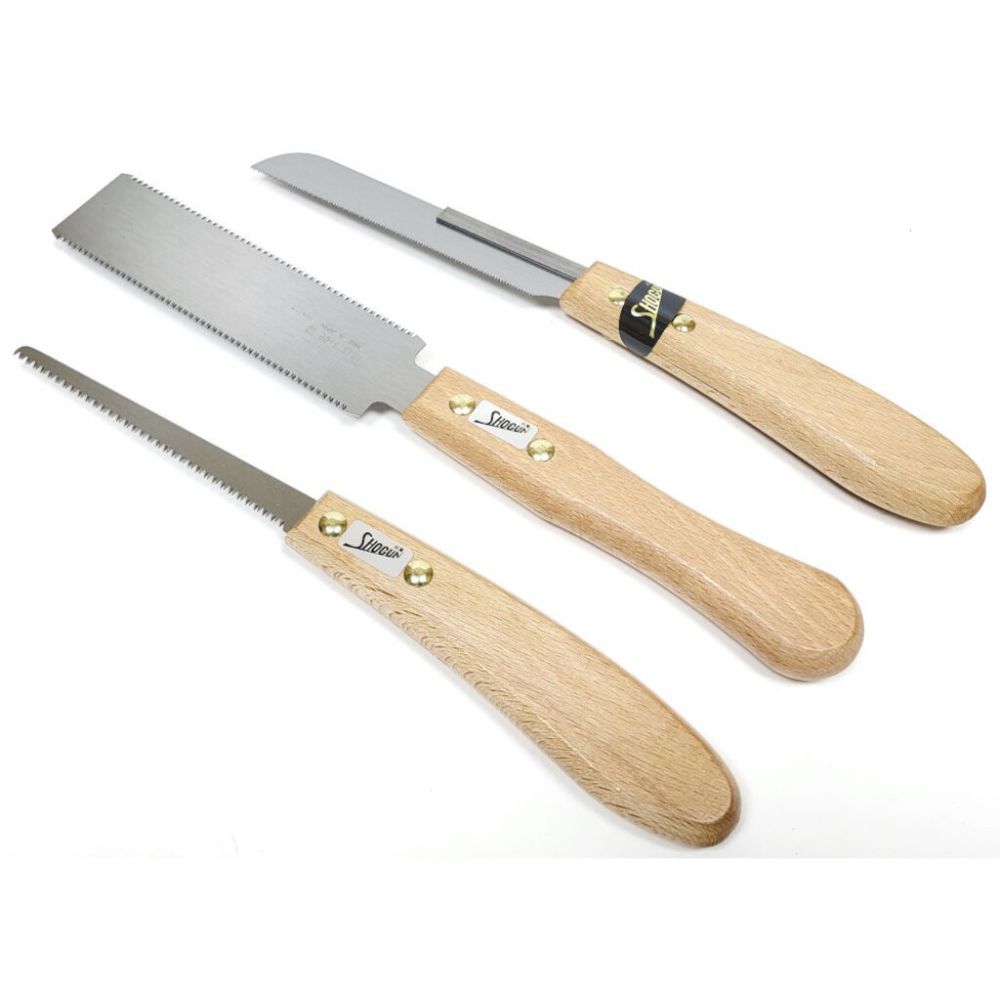

Shogun JPS3 Mini Japanese Pull Saw Package

• Shogun FLK100 - Shogun Japanese 100mm Keyhole Saw
• FLB100 - Shogun Japanese Precision Mini Dozuki Saw 100mm
• Shogun FLD120 - Shogun Japanese 120mm Double Edged Flush Cut Pull Saw

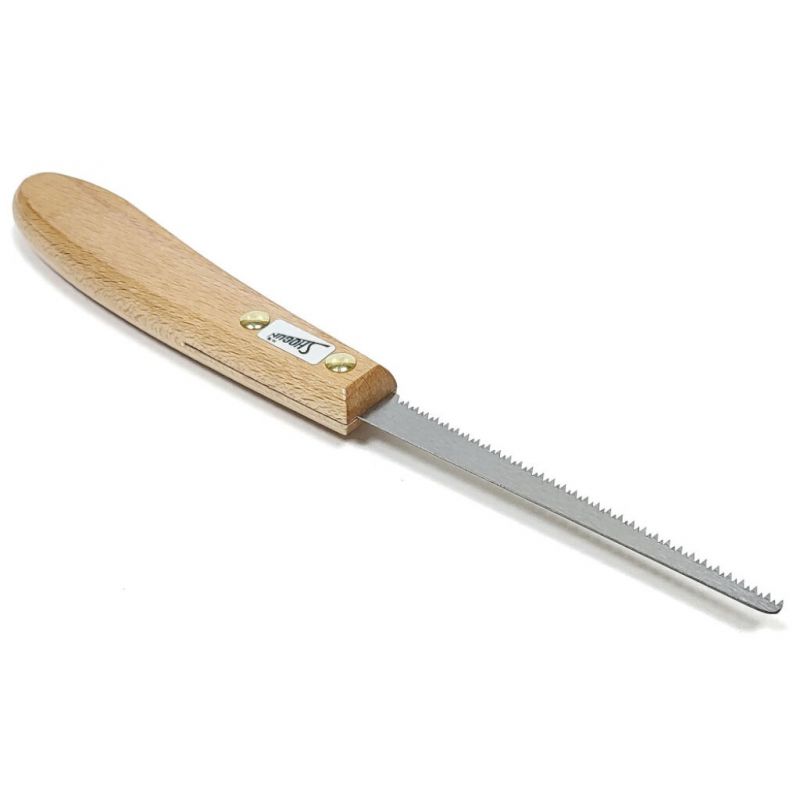

Shogun Japanese 100mm Keyhole Saw - (Ref: FLK100)

• The Shogun keyhole saw is designed to cut holes from the centre of a panel or door. It is small and agile with a flexible blade for precision cuts.
• Fits comfortably in the hand with a wooden handle.
• It is also fantastic for removing bulk material from a carving blank prior to the onset of carving.
• As with all Japanese saws: it cuts on the pull stroke.

• Overall Length: 230mm
• Blade Length: 100mm
• Blade Thickness: 0.7mm
• Kerf: 0.9mm
• Tooth Space: 1.5mm (17tpi)

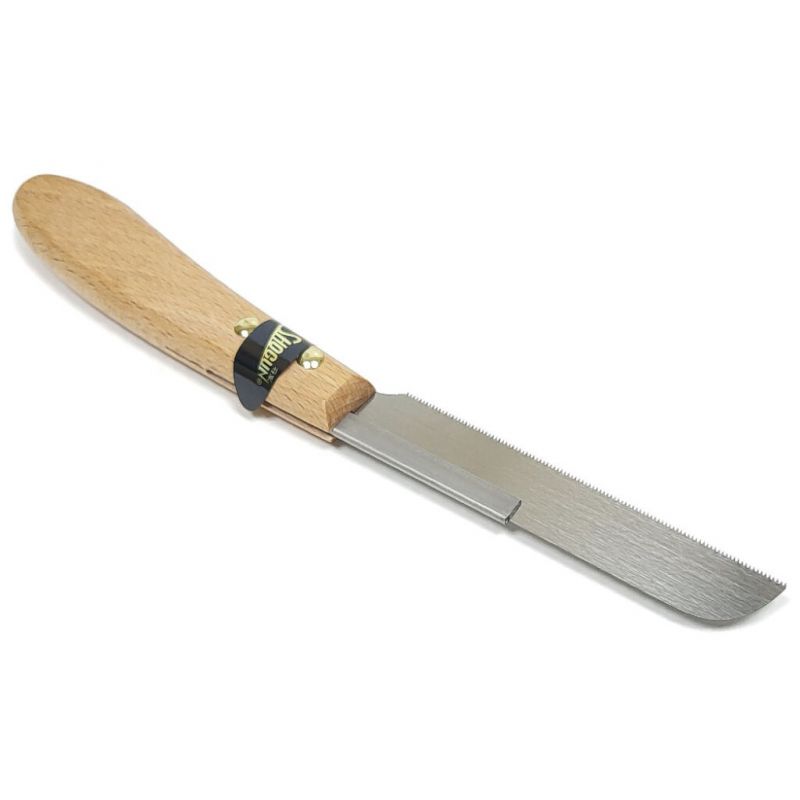

Shogun Japanese Precision Mini Dozuki Saw 100mm - (Ref: FLB100)

• One of the most popular of the Japanese saws, is this Dozuki style precision saw. It has a back spine which supports the blade during the pull cut allowing an incredibly thin plate to be used, only 0.3mm.
• The thin plate means less material is removed and so the resulting cut requires very little effort whilst giving very high accuracy and a smooth finish.
• Applications include dovetailing, tenoning, cross-cutting, box making and general cabinet making.
• This mini sized Dozuki saw is designed for the very high level of precision required by model makers and box makers working with small decorative boxes or jewellery boxes.
• The saw can cut to a depth up to 15mm under the spine. The blade fixes to a wooden handle that offers fantastic control.

• Blade Length: 105mm
• Blade Thickness (Plate): 0.3mm
• Blade Thickness (Kerf): 0.45mm
• Tooth Spacing: 1.0mm (24tpi)
• Maximum Cutting Depth: 15mm
• Overall Length: 240mm

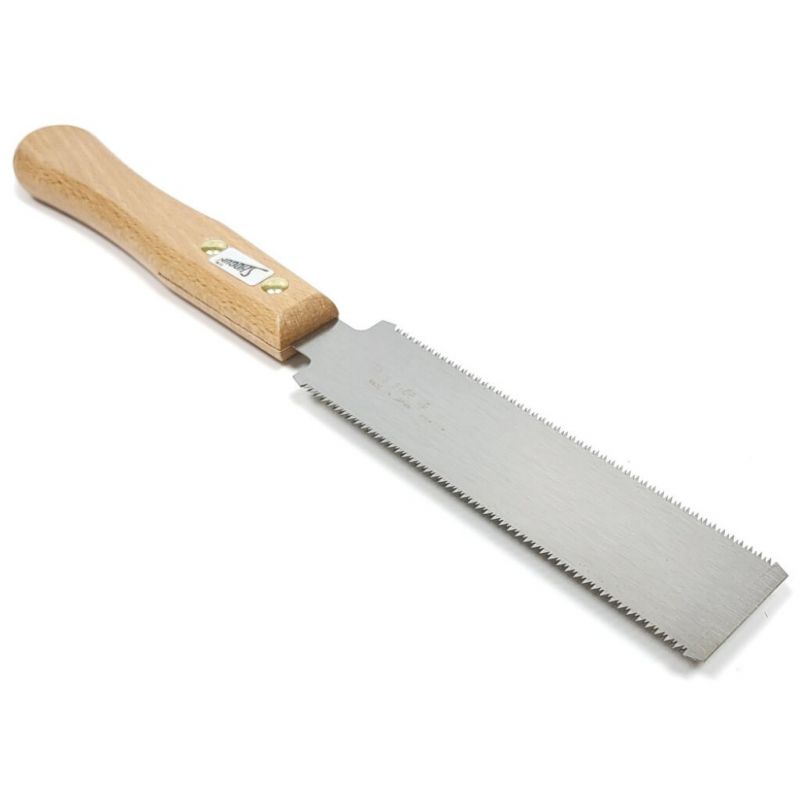

Shogun Japanese 120mm Double Edged Flush Cut Pull Saw - (Ref: FLD120)

• A fine Kugihiki or flush cut pull saw from Shogun. The FLD120 features a 120mm double edged ultra thin flexible blade designed for the flush trimming of wooden dowels or for cutting the protruding ends of through tenons.
• On one side the teeth have no set to allow flush cutting with no risk of scratching the surface. The other side has a 0.1mm set to give more accurate cuts for tenons and the like.
• The highly flexible blade allows access into tight corners.
• A wooden handle provides a comfortable grip.

• Overall Length: 240mm
• Blade Length: 120mm
• Blade Thickness: 0.5mm
• Kerf: 0.6mm
• Tooth Spacing: 1.15mm (22tpi)

Japanese Saws Explained
