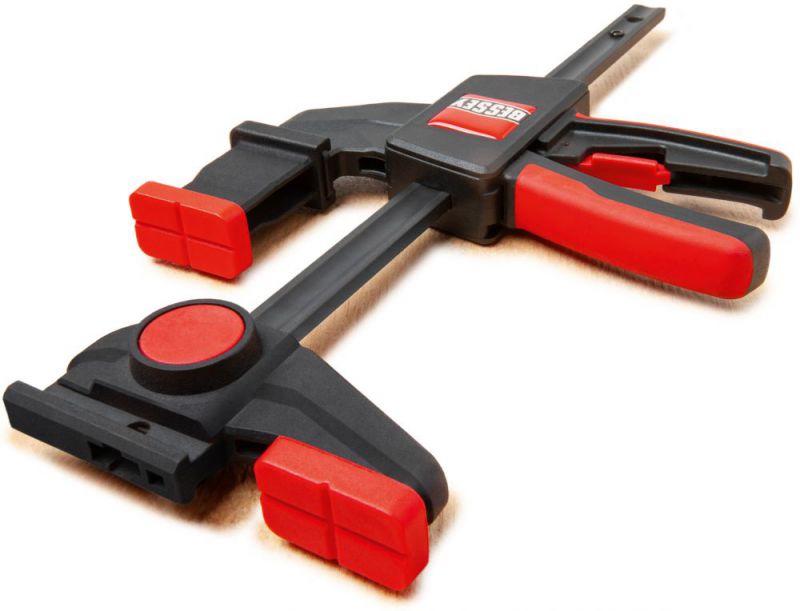

Bessey EZR15-6SET - 2 Piece One-Handed Guide Rail Clamp Set 150/60

Bessey EZR15-6 - 2 Piece One-Handed Guide Rail Clamp Set 150/60

2x EZR15-6

Versatile use
This clamp offers many possible applications

• with adapter on the bottom section and rotated top section for secure fastening of guide rails from Festool, Protool, Metabo, Makita, Hitachi/Hikoki, Dewalt, etc. and for clamping in profiles and on work benches with adapter on the top or bottom section for step-over clamping with or without adapter for clamping or spreading.

Convenient technology
Ergonomic and safe handling, thanks to sophisticated technology:

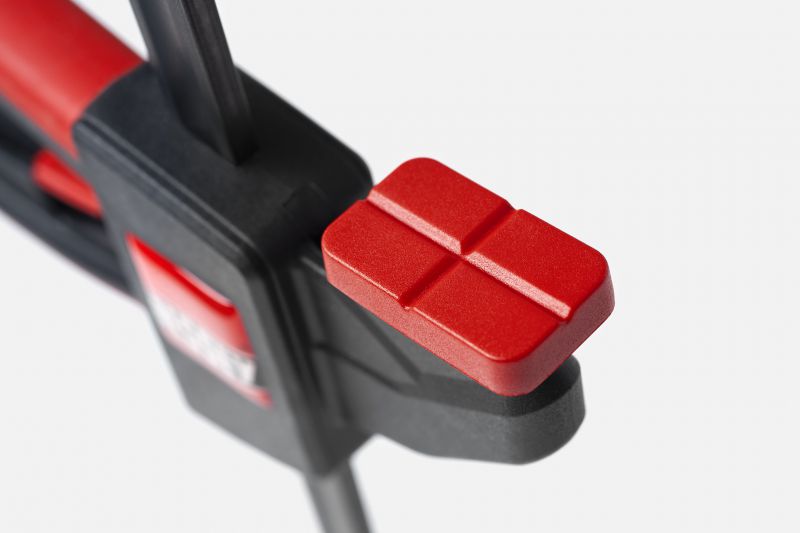

• due to the high quality 2-part plastic grip with pump lever behind the rail for safe access from both directions due to the release handle integrated in the grip for quick adjustment of the sliding bar and for releasing the clamp due to the cross prism integrated in the plastic protective caps for the secure fastening of round, pointed and angular pieces

Robust design
Modern aesthetics meet with longevity here:

• due to the use of high-quality materials, such as fibreglass-reinforced polyamide for the top and bottom, as well as hardened, tempered, and burnished steel for the profiled rails due to the plastic housing, the grip mechanism is protected from dust and chips.

Applications

• For rails and much more

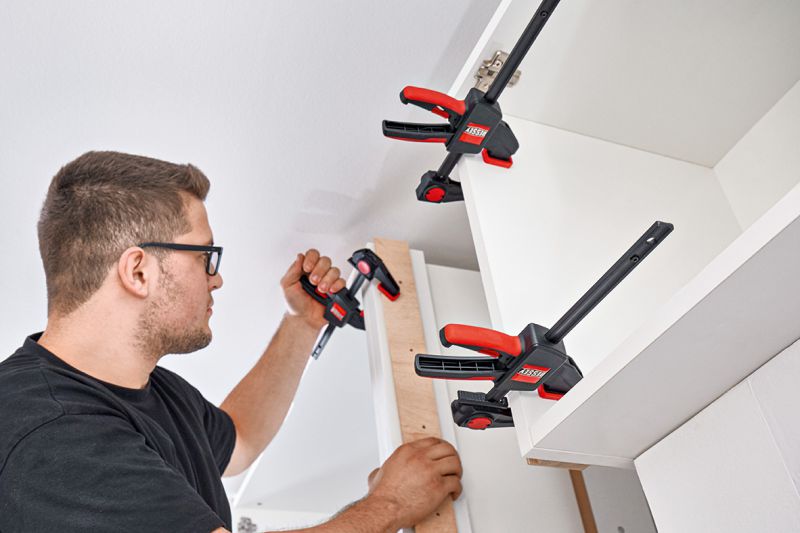

• The new EZR not only extends the BESSEY range of high quality table clamps with a one-handed version. Besides its actual purpose, it has many other possible uses on top of that. Thanks to many tool-free options for changing the upper part and adapter, there are always new applications for the clamp: for normal clamping or spreading as well as for step-over fixing work when the adapter is pushed onto the upper or lower part.

• With special guide on the top section for grooves 12 x 6.5 mm to 12 x 8 mm

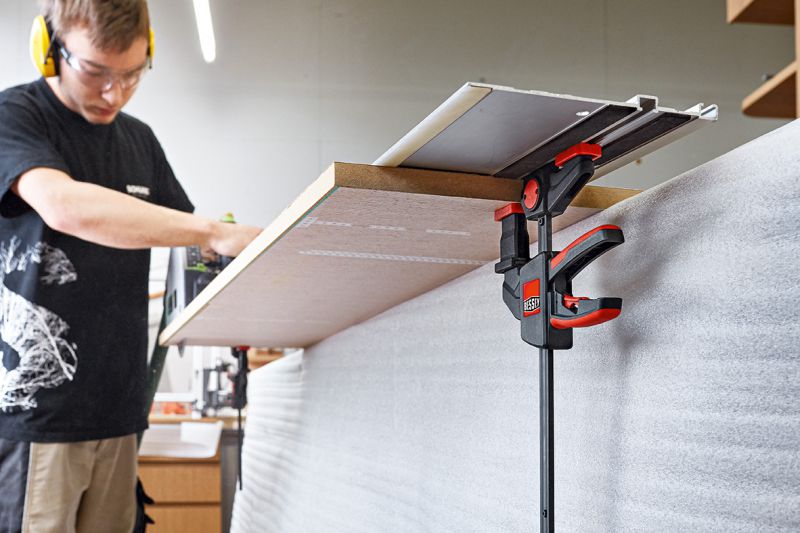

• Use with adapter on the bottom section and rotated top section for secure fastening of guide rails from Festool, Protool, Metabo, Makita, Hitachi/Hikoki, Dewalt, etc. and for clamping in profiles and on work benches
• Use with adapter on the top or bottom section for step-over clamping.
• Use with or without adapter – for clamping or spreading.
• Clamping force up to 750 N
• Ergonomically shaped 2-part plastic handle with pump lever behind the rail
• On carded hang pack

• Opening: 150 mm
• Throat depth: 60 mm
• Spreading width: 120-310 mm
• Rail: 14 x 5 mm

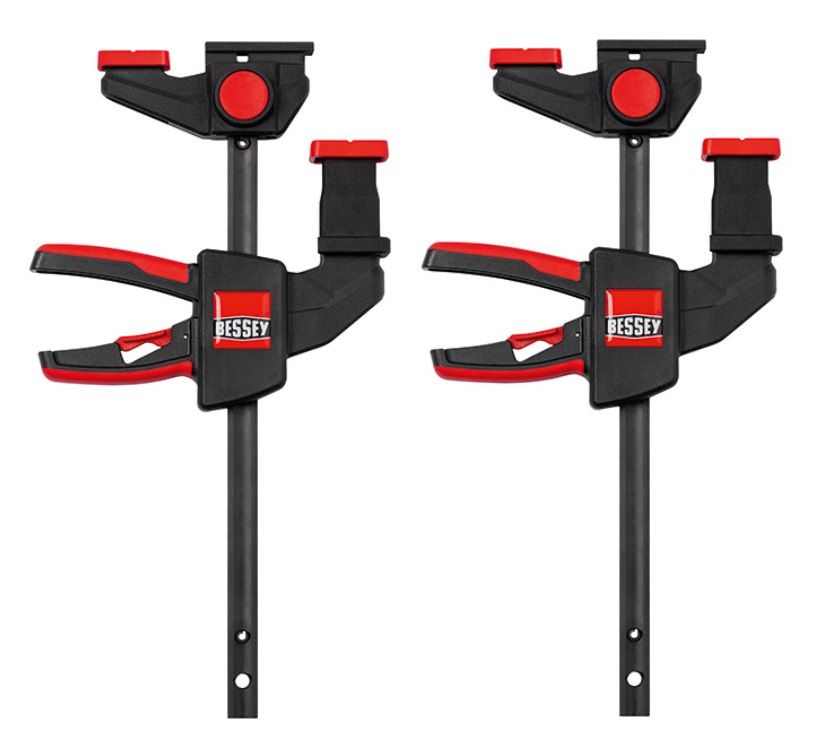

• Contents: 2 x EZR15-6
