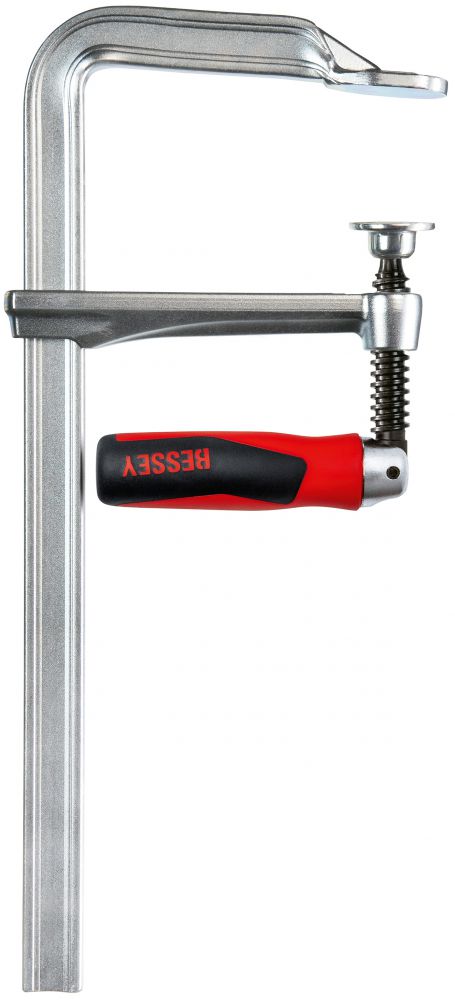

Bessey GZ40-12KG All-Steel Screw Clamp, Swivel Handle GZ-KG 400/120

Bessey GZ40-12KG All-Steel Screw Clamp, Swivel Handle GZ-KG 400/120

• Clamping force up to 5,000 N
• Fixed jaw and sliding arm are constructed of tempered steel for resilient clamping
• High-quality 2-component plastic handle
• Swivel handle can be folded 90° and rotated 360° without obstruction – even in areas that are difficult to reach
• Pressure plates can be replaced by hand – no need for tools

Powerful, fast and comfortable

The special 2-component plastic handle offers further benefits in addition to ergonomic comfort:

• it can be swiveled by 90°, which provides additional leverage when tightening – and therefore less effort for the user
• it can be turned 360° when swiveled. This means that the swivel handle does not get caught on the rail during the clamping process, as is the case with other competitor models
• in places that are difficult to access the “disturbing” handle can be simply swiveled away

Flexible and highly stable

The other components of the new GZ version also stand out with the usual high BESSEY quality:

• Due to the fixed bracket (forged, tempered and galvanised from a single piece) with moulded pressure plate, the special resilient property of the all-steel screw clamp is achieved. The benefits: For one, this allows the pressure to be perfectly matched to the requirements of the workpiece. On the other hand, all-steel screw clamps are less sensitive to vibrations which is why the clamps do not need to be tightened up so quickly.
• Due to the forged sliding arm

• Opening: 400 mm
• Throat depth: 120 mm
• Rail: 24.5 x 9.5 mm
• Weight: 1.69kg
