Bessey Vertical Toggle Clamp, Open Arm, Horizontal Base Plate STC-VH /35
Product Code: BES/STC-VH20
Brand: Bessey
In Offsite Stock - Delivery in 4 to 5 Days
£32.14 Inc. VAT
£26.79 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Please call to check stock availability for larger quantities

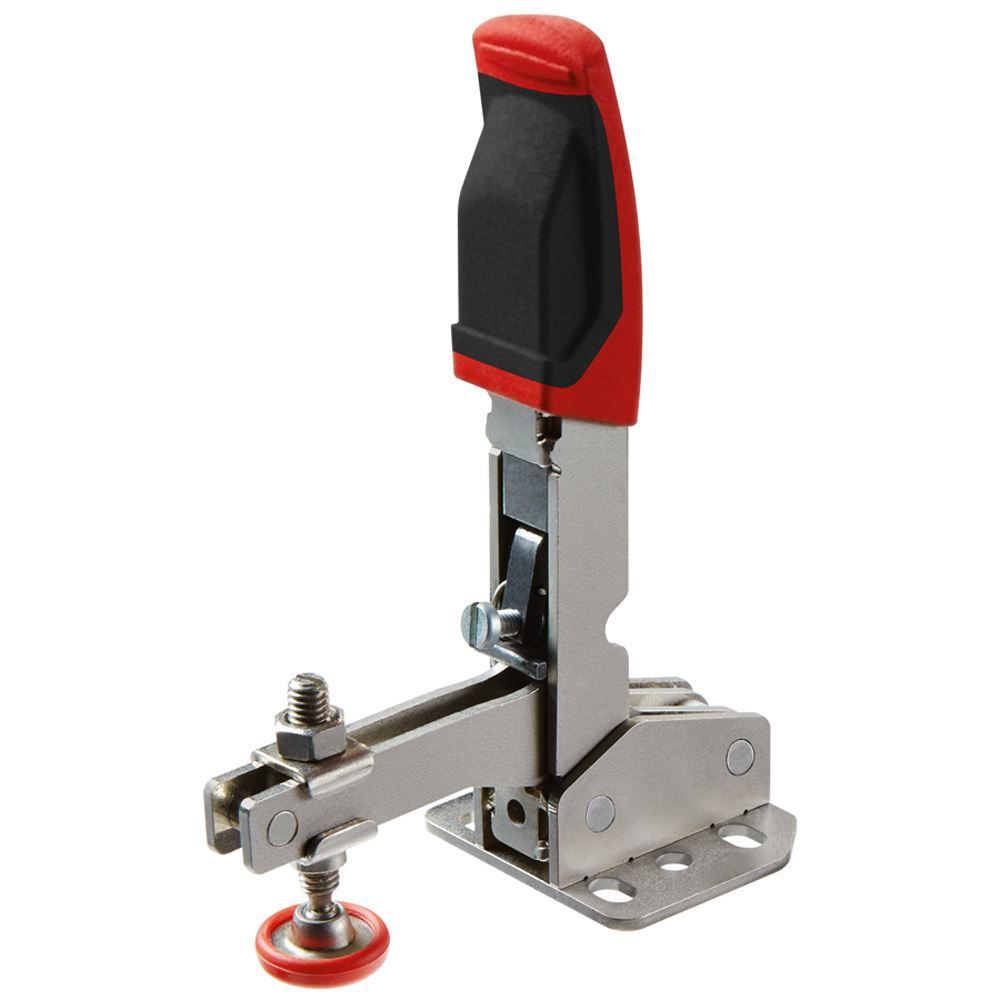

Bessey Vertical Toggle Clamp, Open Arm, Horizontal Base Plate STC-VH /35 - STC-VH20
Strengths and benefits
- Ready to go – the first time and for quick set-up during workpiece changes: BESSEY STC toggle clamps adapt to workpieces of varying thickness – without manual setting of the spindle and, with practically the same clamping force: due to an automatic clamping width range
- Uncompromisingly versatile: One size of the BESSEY toggle clamp replaces multiple competitor sizes simultaneously: due to an extremely large clamping range, thanks to the patented mechanism
- Powerful and gentle: Even sensitive workpieces, e.g. with veneered or varnished surfaces, can be gently clamped: due to moving pressure plate with removable protective cap due to clamping force regulation via adjustment screw in the joint
Key Features
- Lever is in vertical clamping position
- Automatic, seamless adjustment of the clamping height (up to 40mm/19/16) with almost constant clamping force without manual changing of the pressing screw position
- Adjustable clamping force up to 2,500N (550lbs.), based on the adjusting screw in the joint
- Sturdy, tempered sheet steel for longer service life
- Base plate hole pattern suitable for millimetres and inches
- High quality, oil resistant two component plastic handle.
Specification
- Weight (kg): 0.22
- A - Opening (mm): 35
- Clamping Force kN (up to): 1,100 N
- Automatic adjustment: 20
- Clamping pressure (appr. N): 1,100
