CLEARANCE - Nova JS-SP45 45mm / 1-3/4" Spigot Chuck Jaw Set for Woodturning Scroll Chuck

NOVA JS-SP45 - 45mm / 1-3/4" Spigot Chuck Jaw Set
Woodturning Scroll Chuck Jaws
Ref: JS-SP45

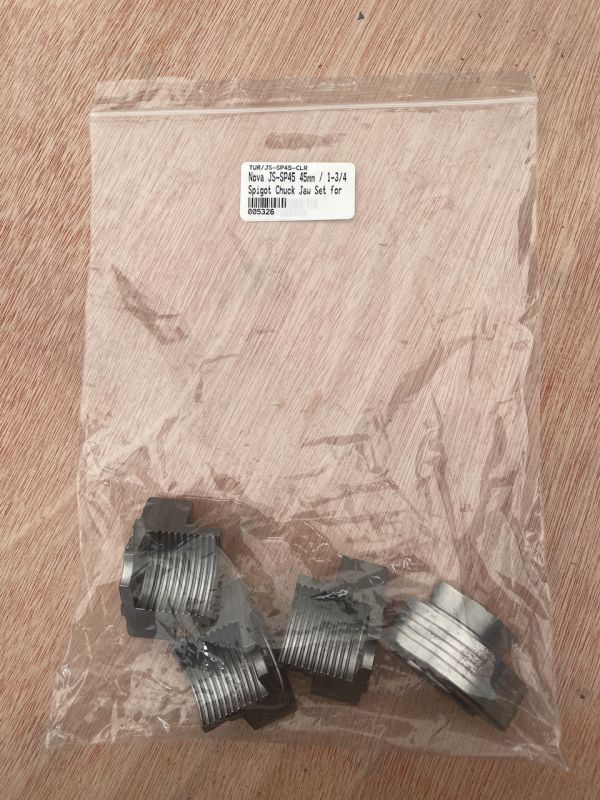

Clearance of display item that has NO PACKAGING
OR
MARKS THAT ARE CONSISTANT WITH SCUFFING OR SCRATCHING
The use and operation of the item is not affected

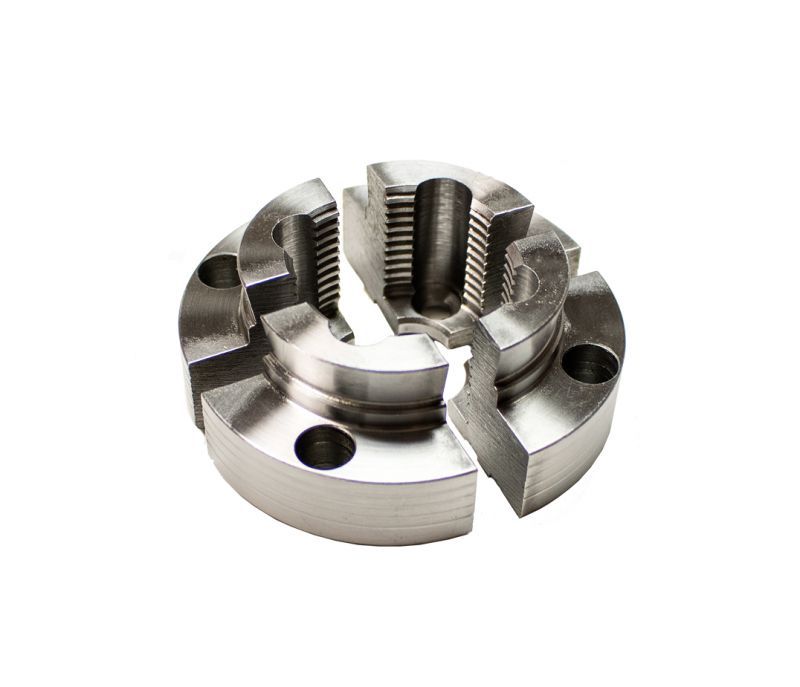

JAWS ONLY chuck shown for illustration

• Strong contracting grip for spigot turning applications up to 250mm unsupported
• Ideal for turning boxes, vases and goblets etc
• Serrated tooth form makes for a very powerful solid grip
• External dovetail for expanding into a dovetail recess when turning bowls
• CNC machined from a single solid billet, guaranteeing precision closing
• 35mm Spigot Jaw set for spigots between 30mm and 50mm
• 45mm Spigot Jaw set for spigots between 38mm and 60mm

NOVA Spigot Jaws provide a strong contracting grip for spigot turning applications without the support of the tailstock. They come into their own when turning boxes, vases and goblets. Their serrated tooth form makes for a very powerful solid grip. An external dovetail makes these jaws just as effective for turning bowls, expanding into a dovetail recess. The jaws are 1045 high tensile steel, CNC machined from a single solid billet, guaranteeing precise closing, durability and long life.

The 35mm (1.3/8") Spigot Jaw set for spigots up to 50mm (2") and down to 30mm (1.3/16").

The 45mm (1.3/4") Spigot Jaw set for spigots up to 60mm (2.3/8") and down to 38mm (1.1/2")..

Suits both SuperNova2 and Nova G3 chucks, Robert Sorby Patriot

If you are unsure if these jaws fit your chuck please contact us and we will be happy to help

THESE WILL NOT FIT ANY OF THE AXMINSTER RANGE OF CHUCKS

• Expands Internal - 52 to 72 mm
• Expands External - 41 to 61 mm
• Square Section - 31 to 51 mm
• Jaw Type JS-SP45
