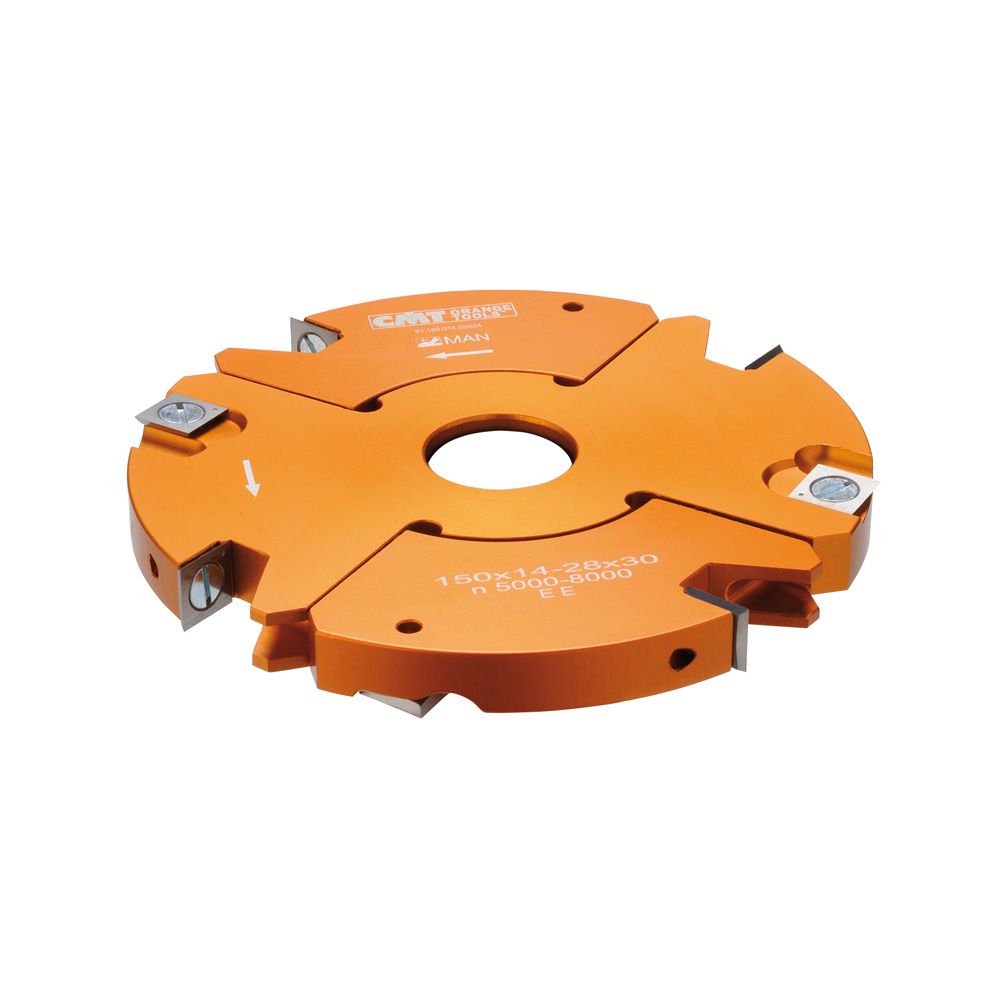

CMT 2pc Adjustable Grooving Cutter Head Set 150mm dia x 14-27 length x 30 bore

CMT 2pc Adjustable Grooving Cutter Head Set 150mm dia x 14-27 length x 30 bore

ref: 694.021.30

• Super-strength hard aluminium alloy body.
• 694.021: 8 HWM knives 13,6x13,6x2mm.
• Tools for manual feed (MAN).
• Pins for the automatic positioning of the knives.

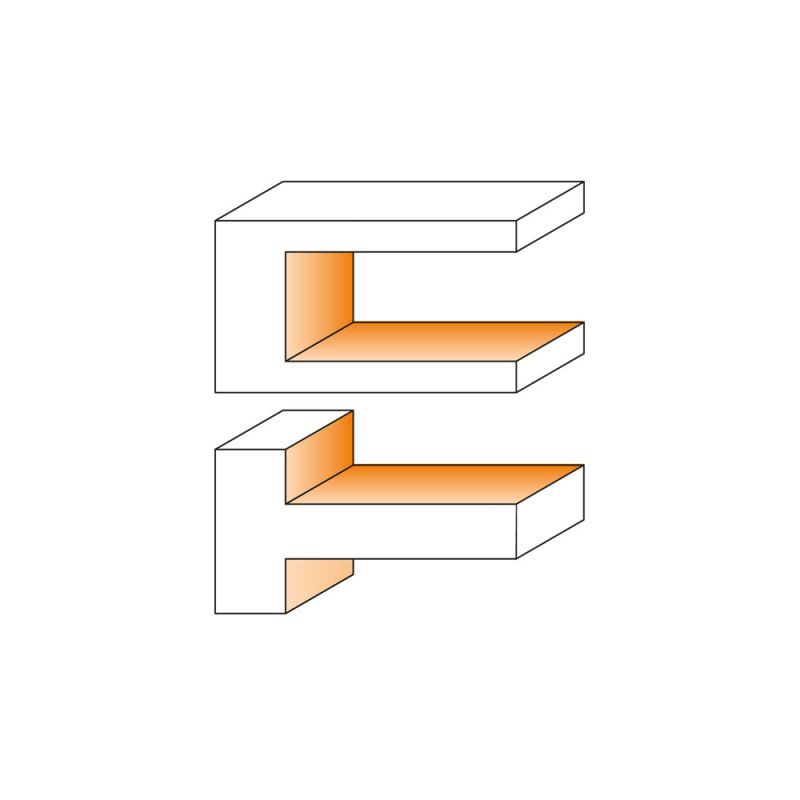

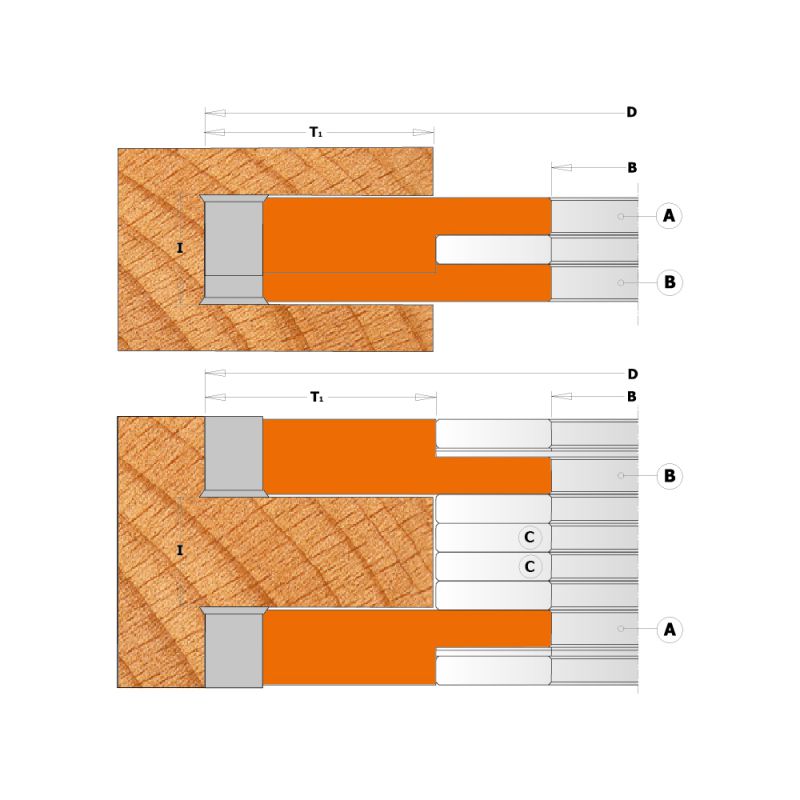

• For use on spindle moulder machines, double-end tenoners and shaper machines. Perfect grooving on all materials, but ideal on solid wood, plywood and laminated panels.
• The 694.021-022 SET includes: 1 cutter head type (A) [Z2 + V2]; 1 cutter head type (B) [Z2 + V2]; Spacer rings set.

• Diameter: 150mm
• Length: 14-27mm
• Bore: 30mm
• Maximum stock thickness: 44
• Number of cutting edges: 4
• Spurs: 4
• MAX RPM: 5000-8000
• Material: HW
