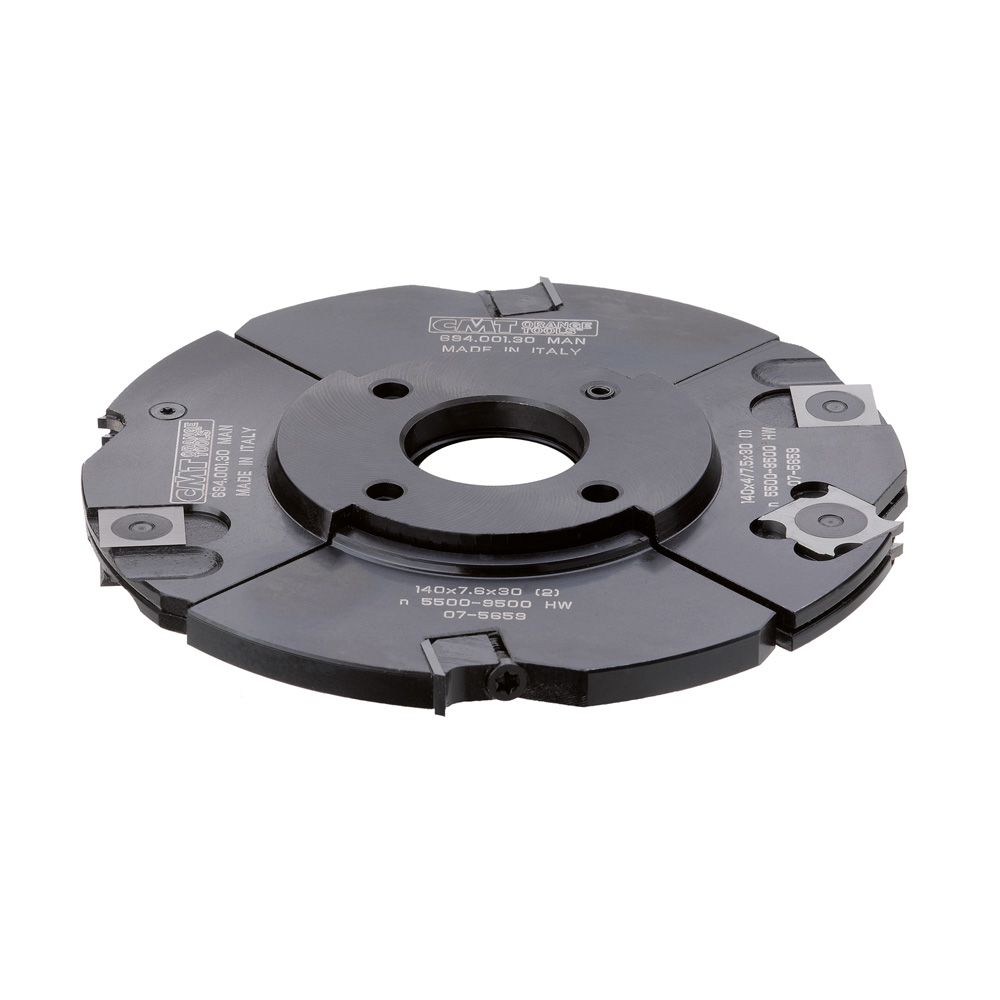

CMT 3 Piece Adjustable Grooving Set 140mm dia, 30mm bore - 694.001.30

CMT 3 Piece Adjustable Grooving Set 140mm dia, 30mm bore

ref: 694.001.30

• 3 PIECE ADJUSTABLE GROOVING SET

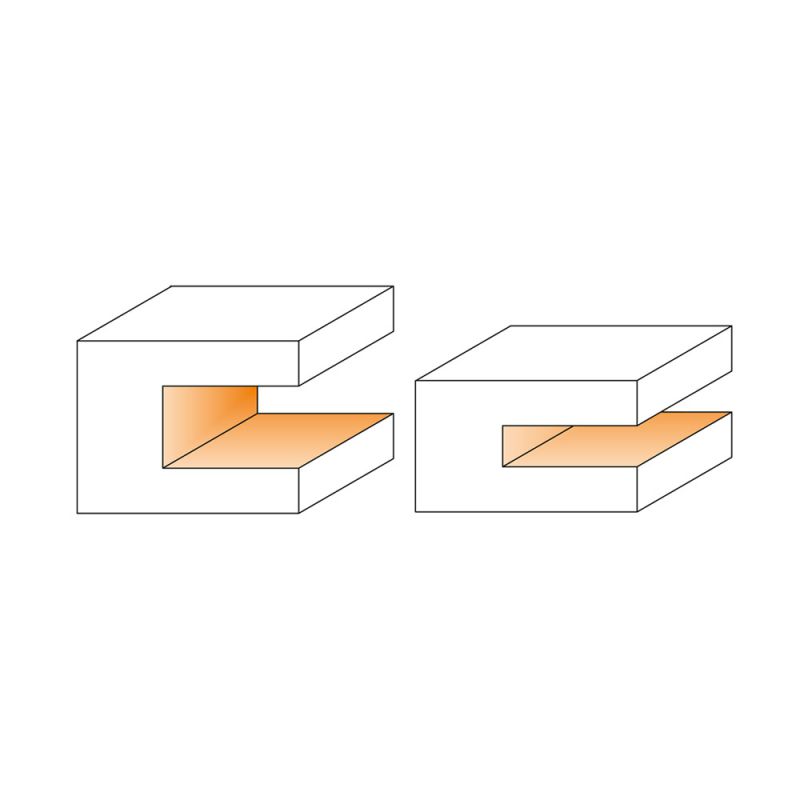

• These cutter heads are the ideal tools to create precision slots and grooves on material 4 to 15mm deep.
• Insert carbide
• Tool for manual feed
• Four cutting edges
• Four spurs
• Supplied in solid plastic box

• Spindle moulder machines, double-end tenoner and shaper machines.

• Perfect grooving on all materials, but ideal on solid wood, plywood and laminated panels.

•  Super-strength steel body.
•  2 HWM Knives 7,65x12x1,5mm [Z2].
•  4 HWM Knives 18x18x1,95mm [Z4].
•  4 HWM Knives 14x14x1,2mm [V4].
•  Tools for manual feed (MAN).
•  Pins for automatic positioning of the knives.

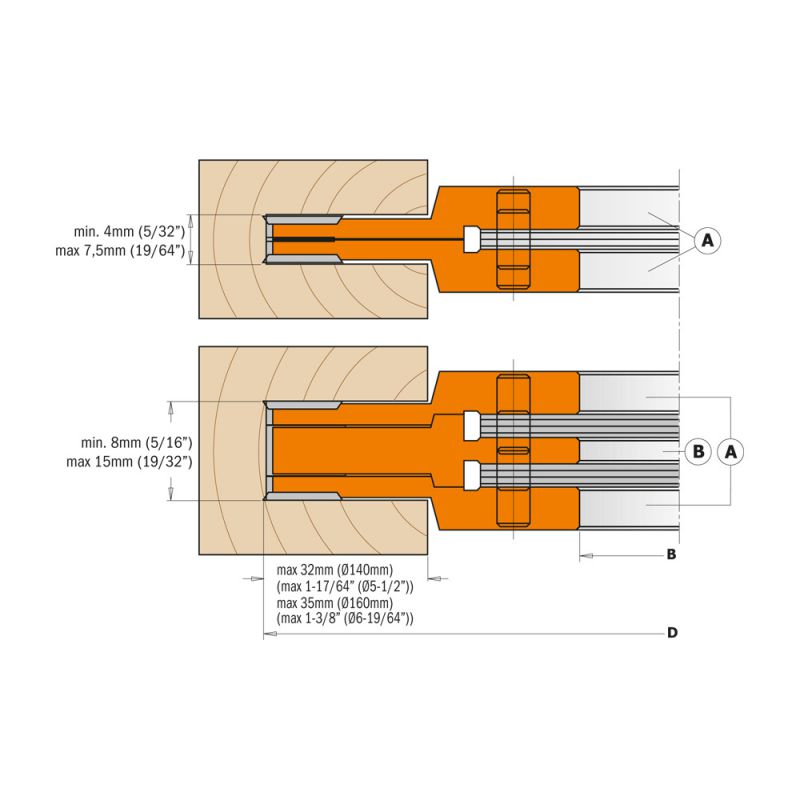

• 2 cutter heads type (A) [Z4 + V4]
• 1 cutter head type (B) [Z2]
• 12 spacer rings from 0,1 to 2mm.

• (D) Diameter: 140mm
• (B) Bore: 30mm
• (Z) Number of cutting edges: 4
• Spurs: 4
• RPM: 5500 - 9500
• Material: HW
