CMT Adjustable Chamfer Cutter Head with Positive Stop 120mm dia, 30mm bore, 40mm length - 694.018.30

X
Product Code: CMT/694.018.30
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£338.48 Inc. VAT
£282.06 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
CMT Orange Tools

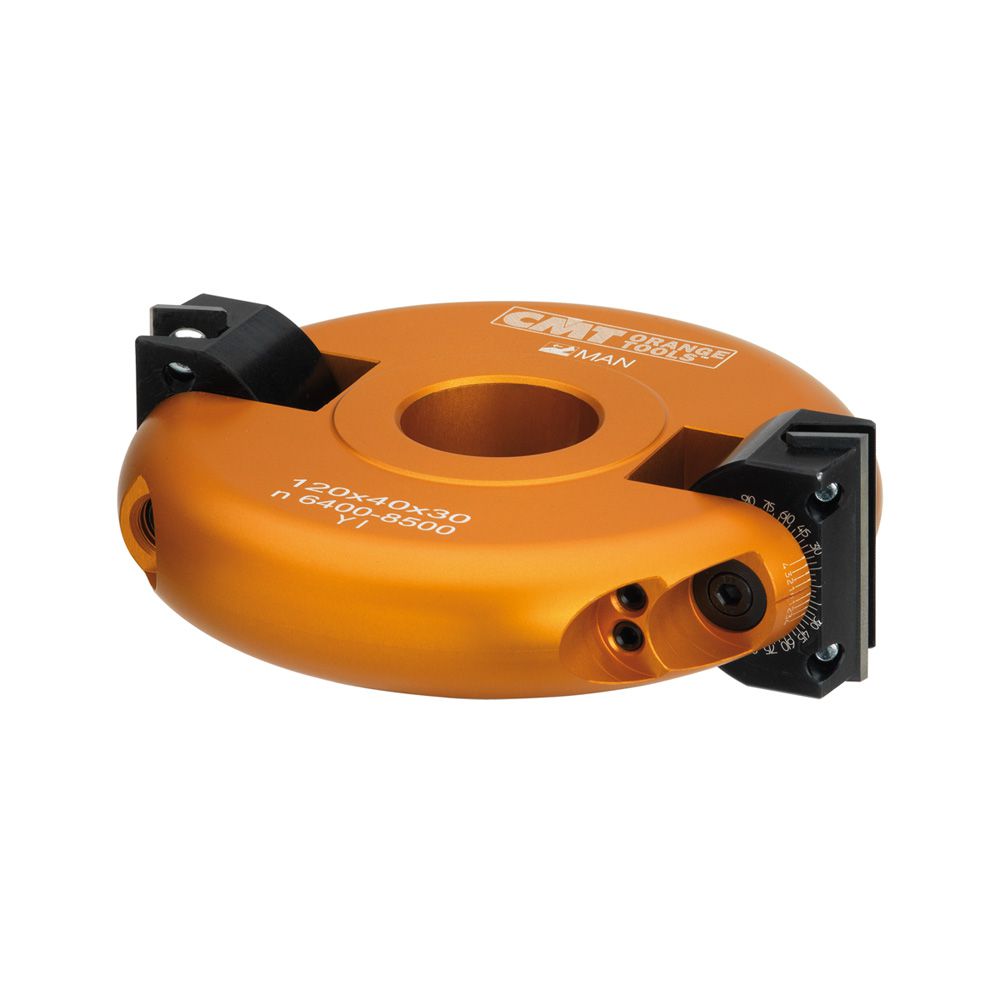

CMT Adjustable Chamfer Cutter Head with Positive Stop 120mm dia, 30mm bore, 40mm length

ref: 694.018.30



Key Features

  • ADJUSTABLE CHAMFER CUTTER HEADS WITH POSITIVE STOP
  • This chamfer cutter head carries out very precise cuts on wooden boards and solid timber. It also crafts gap-free bevel joints and is the perfect tool for a variety of joinery projects.

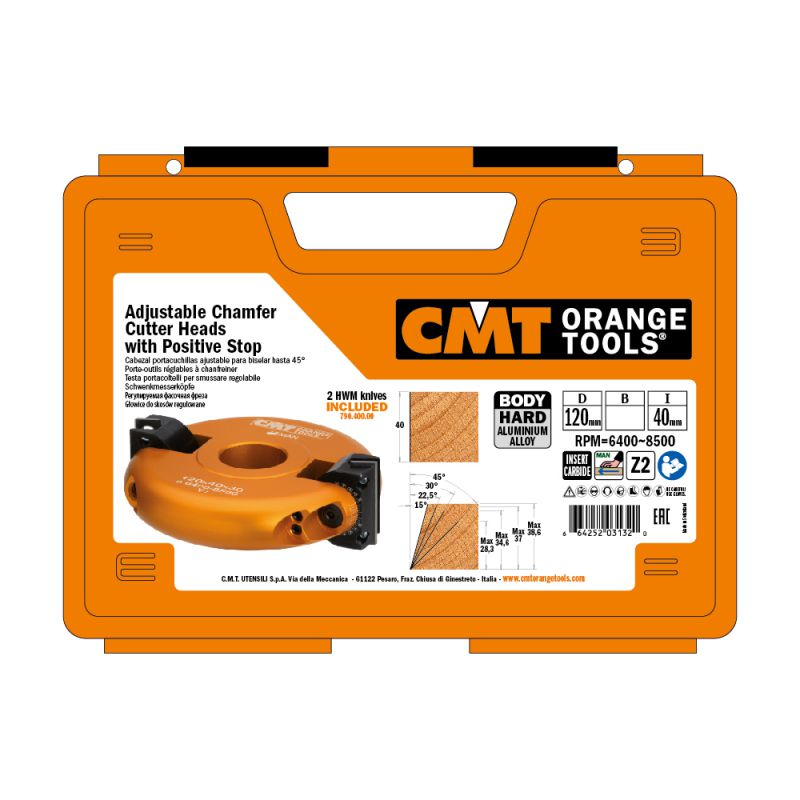

  • SUPPLIED IN A SOLID PLASTIC BOX.
  • Insert carbide
  • Tool for manual feed
  • Two cutting edges



Suitable for use with

  • Spindle moulding machines, double-end tenoners and shaper machines.



Technical details

  •  Tool body made from high strength aluminum alloy extremely resistant to tensile and yield stress
  •  Manual feed tool (MAN)

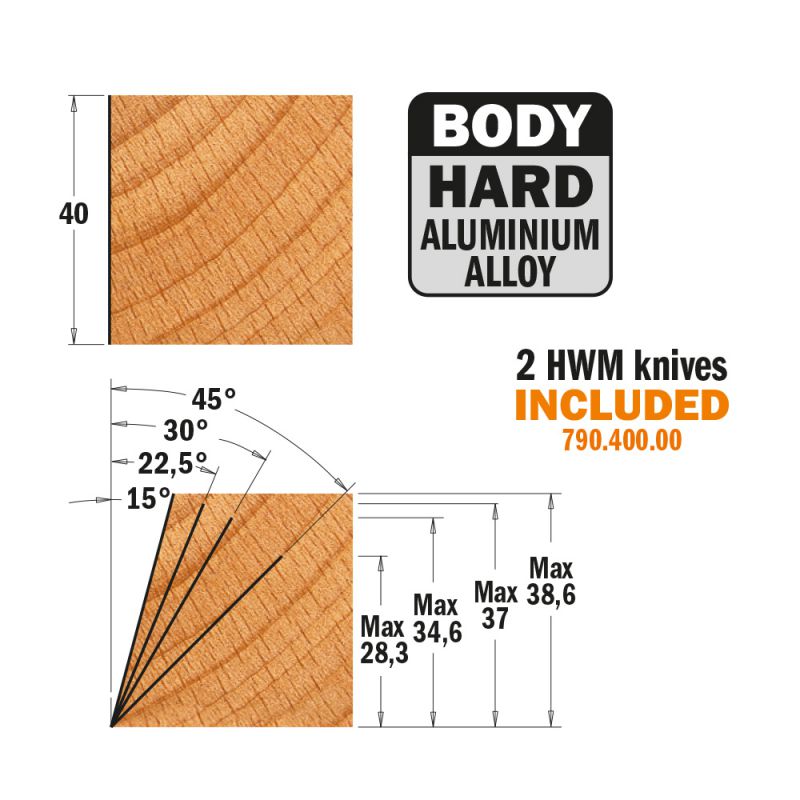

  •  2 HWM knives 40x12x1,5mm[Z2]

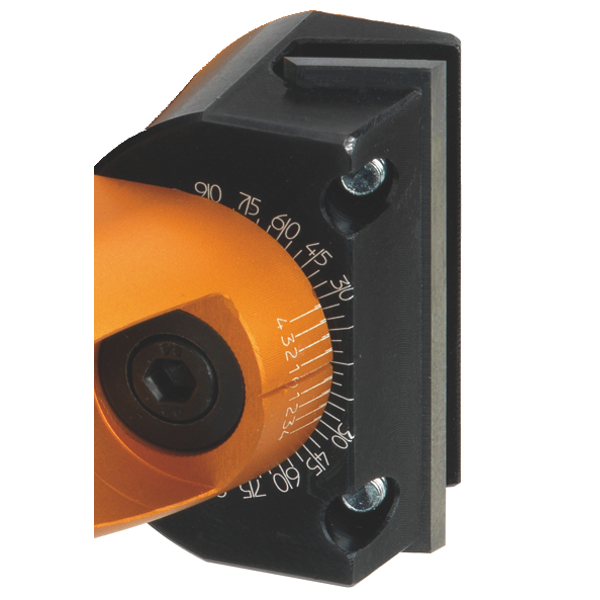

  •  Adjustable swivelling blades

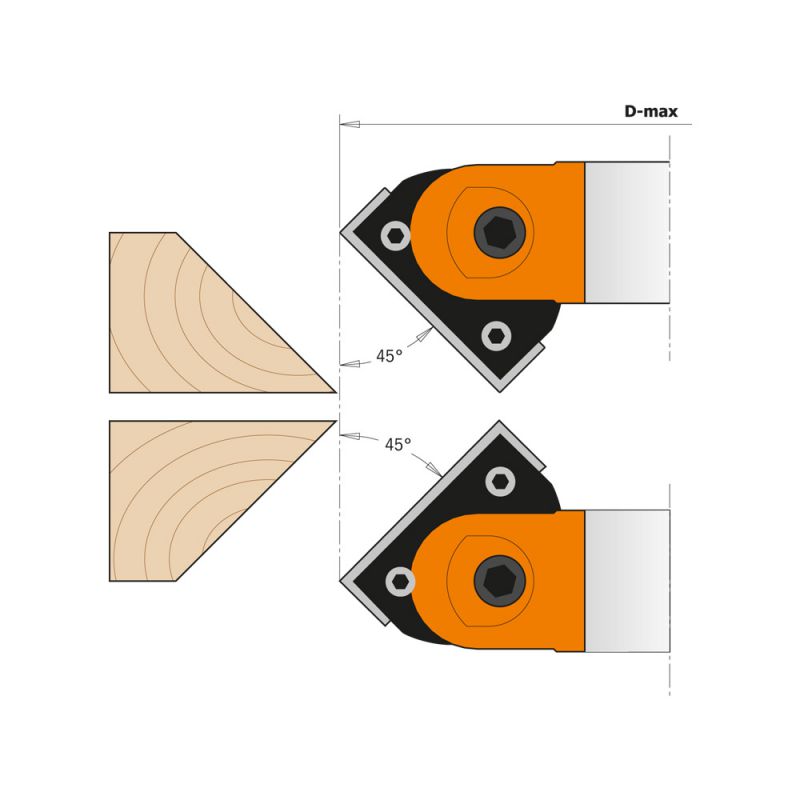

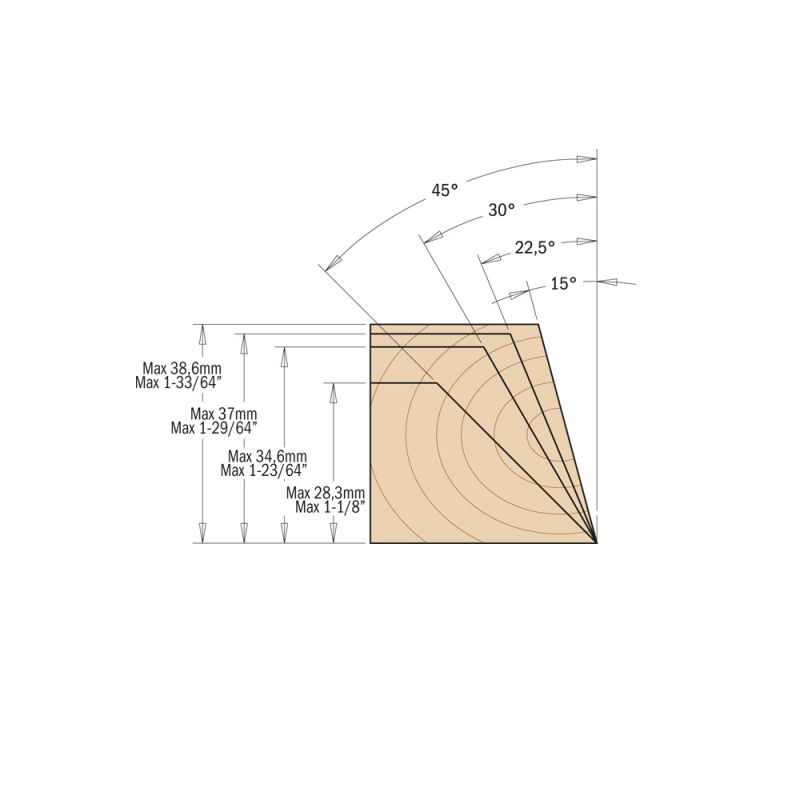

  •  Range: ± 45° (Rotates at 7,5° intervals; Precision= 7,5°).



Specification

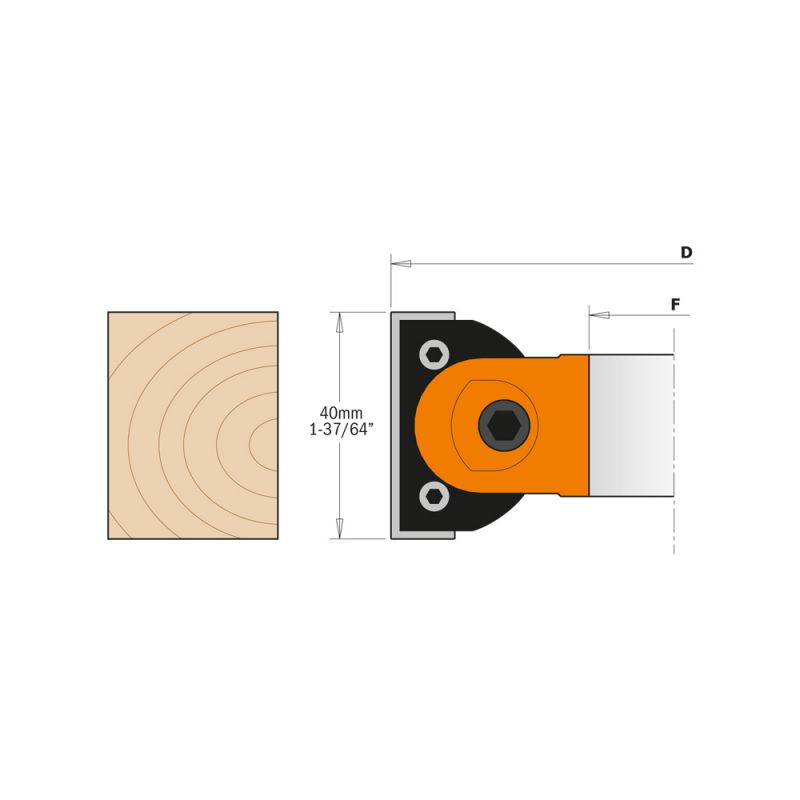

  • (D) Diameter: 120mm
  • (I) Cutting length: 40mm
  • (B) Bore: 30mm
  • (Z) Number of cutting edges: 2
  • (D2) Max. diameter: Max (45°) 140mm
  • RPM: 6400 - 8500
  • Material: HW



Cutter Head Safety Sheet

Cutter Head Usage Guide
