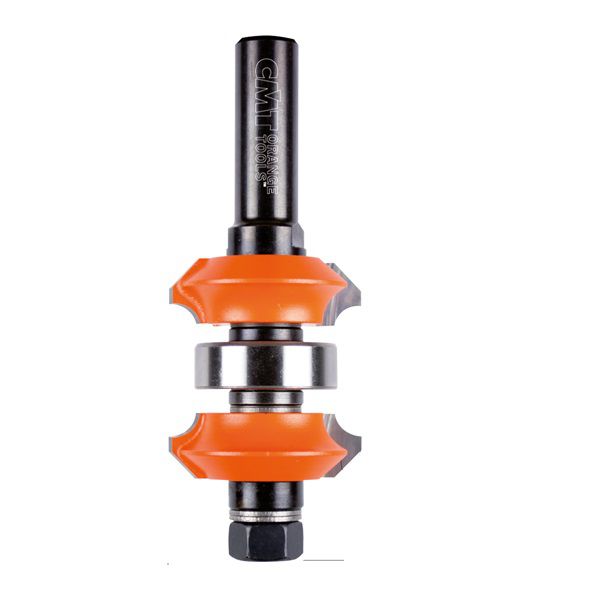

CMT Adjustable roundover & bevel router bit - 4.86mm radius x 1/2 shank, 45 deg

CMT Adjustable shaker router bit set
Ref: 800.623.11

• These new CMT bits are ideal for making new awesome creations!

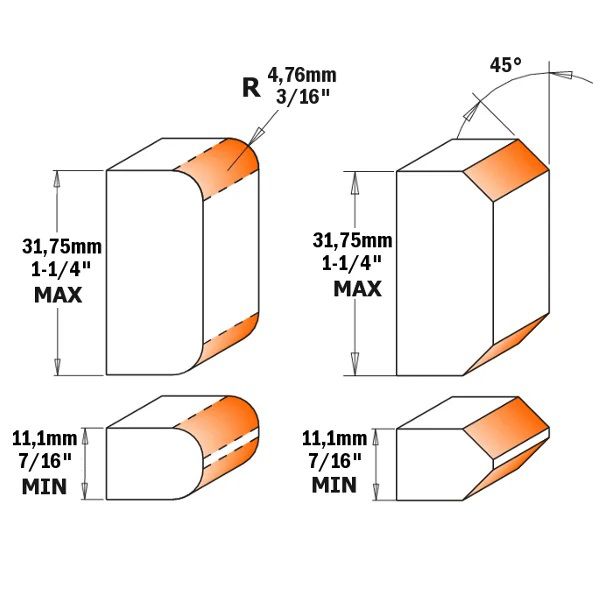

• Create a double 4.76mm (3/16”) roundover profile, a double 45° bevel or even a mixed profile on your wood panels easily and in a cost-effective way!
• Interchangeable shims are included to allow for different stock thicknesses according to the board.
• To be used on table-mounted routers.
• Avoid using these bits in hand-held power tools.

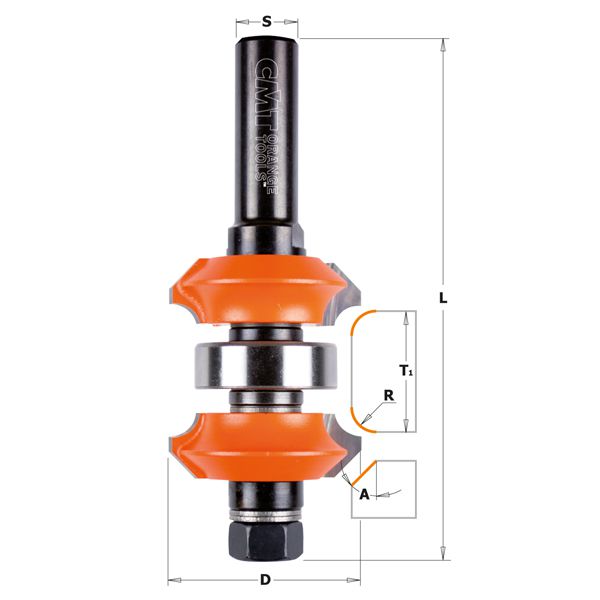

• T: 31.7 (maximum stock thickness)
• S: 12.7 (shank diameter)
• R: 4.76 (radius)
• L: 100 (overall length)
• D: 38.1 (diameter)
• A: 45° (angle)

CMT 800.623 Roundover Assembly Instructions
