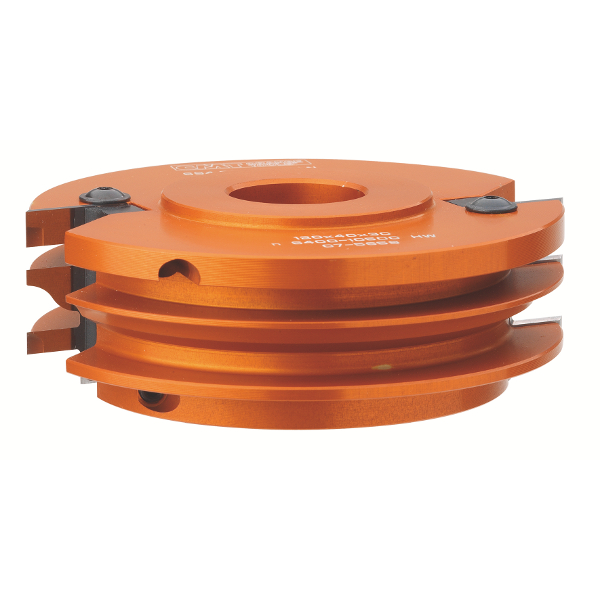

CMT Cabinet Door 1 Piece Rail and Stile Cutter Head 120mm dia, 30mm bore - 694.014.30

CMT Cabinet Door 1 Piece Rail and Stile Cutter Head 120mm dia, 30mm bore

ref: 694.014.30

• These are unique products made by combining two cutter heads, ideal for making furniture doors and drawers.
• By adjusting the height of the head it is possible to cut two perfectly fitting profiles with no waste of time or efforts to move the fence or to replace the tool.
• Save money by purchasing one single head and improve your production’s efficiency. For use on spindle moulders.
• Perfect on hardwood and panels with thickness between 22mm (7/8") and 25mm (1").
• Supplied in a solid plastic box
• Insert carbide
• Tool for manual feed
• Two cutting edges

• Spindle moulders

• Hard aluminium alloy body with high resistance to tensile and yield stress.

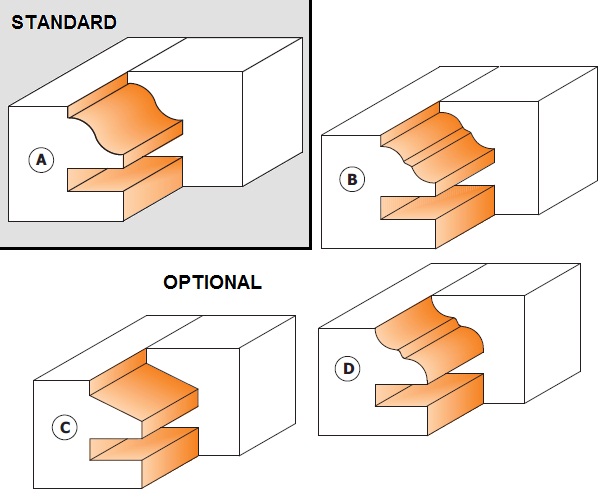

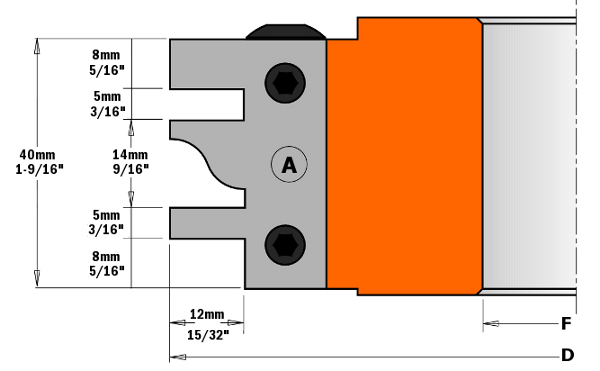

• 2 HWM Knives type (A) - (40x24,5x2mm - Z2).
• Tools for manual feed (MAN).
• Pins for the automatic positioning of the knives.

• (D) Diameter: 120mm
• (B) Bore: 30mm
• (Z) Number of cutting edges: 2
• RPM: 6400 - 10500
