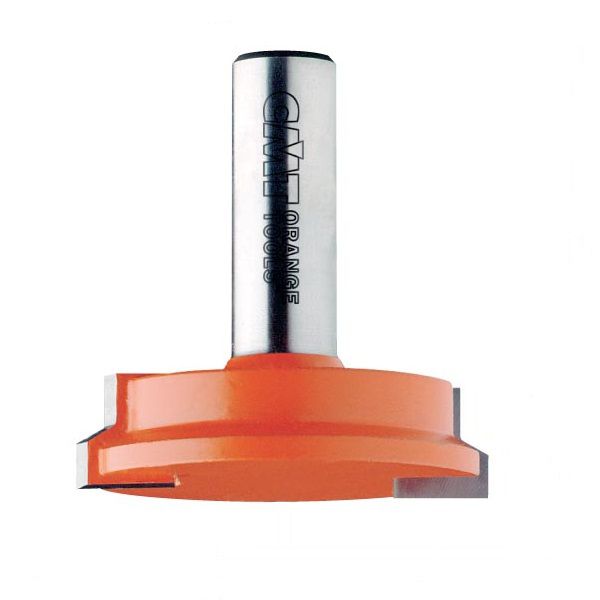

CMT Drawer lock router bit - 25.4 dia x 12.7mm cut x 1/2 shank

CMT Drawer lock router bits
Ref: 855.510.11

• The key to success when constructing quality drawers is in the quality of the drawer lock bit you use. With CMT drawer lock bits you can make strong, perfectly fitting joints quickly and easily. Mill the drawer front with the inside face-down on the work table. Mill the sides of the drawer with the inside face placed vertical to the bit and fence, and perpendicular to the table.
• SAFETY TIPS: these bits are to be used on router tables only and are not to be used on hand-held routers.

• D: 25.4 (diameter)
• T: 15.87 (maximum stock thickness)
• I: 12.7 (cutting length)
• L: 54 (overall length)
• S: 12.7 (shank diameter)

CMT Drawer Lock Bit Instructions
