CMT ITK Plus Ripping Saw Blade - 300mm dia x 2.6 kerf x 30 bore Z24 10°ATB+8°SHEAR

X
Product Code: CMT/271.300.24M
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£46.80 Inc. VAT
£39.00 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Check out our Fair Deal on Delivery Promise
CMT Orange Tools

CMT ITK Plus Ripping Saw Blade - 300mm dia x 2.6 kerf x 30 bore Z24 10°ATB+8°SHEAR
Ref: 271.300.24M



Key Features

  • The blade considerably reduces material waste thanks to the thin-kerf design. Particularly suitable for valuable wood.
  • Tungsten carbide tipped
  • Orange antikickback
  • Non-stick orange shield coating
  • Saw blade with dampening slots without fill
  • Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.



Suitable for use with

  • Mitre saw
  • Table saw

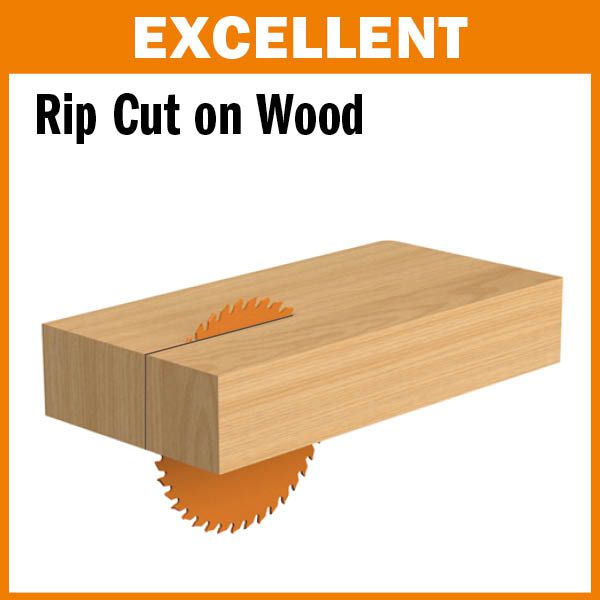

Applications

  • Rip cut
  • Wood
  • OSB
  • Plywood



Technical details

  • Teeth height mm: 5-6
  • CHROMIUM ISO grade: K20
  • Hardness (HV10): 1.550
  • Transverse rupture strength (N/mm2): 2.300

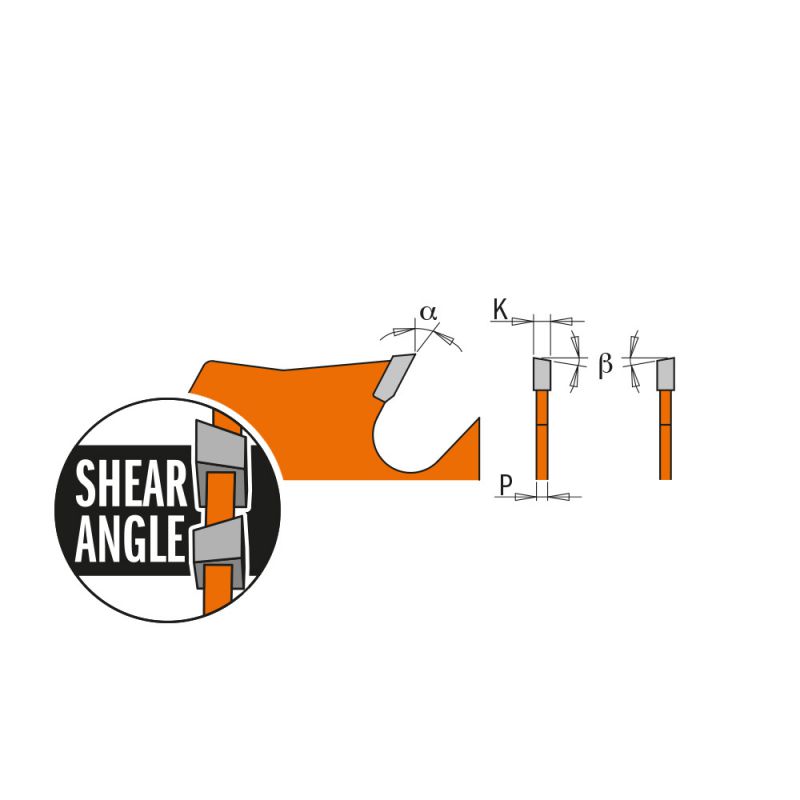

Specification

  • (D) Diameter: 300mm
  • (B) Bore: 30mm
  • (FT) Pin hole: COMBI3 (2/7/42 + 2/9/46.4 + 2/10/60)
  • (Z) Number of cutting edges/teeth: 24
  • (K) Kerf thickness: 2.6mm
  • (P) Plate thickness: 1.8mm
  • (α) Hook angle: 20 degrees
  • (β) Type of grind: 10° ATB + 8° SHEAR
