CMT Industrial Multi-Rip Blade with Rakers - 180mm dia x 2.5 kerf x 40 bore Z21 Flat

X
Product Code: CMT/280.021.07S
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£75.38 Inc. VAT
£62.81 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Check out our Fair Deal on Delivery Promise
CMT Orange Tools

CMT Industrial Multi-Rip Blade with Rakers - Wood - 180mm dia x 2.5 kerf x 40 bore Z21 Flat
Ref: 278.028.12M



Key Features

  • Tungsten carbide tipped
  • Tool for mechanical feed
  • The rakers prevent contact between the steel plate body and the material in use.
  • Thin Kerf minimises material waste.
  • Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.

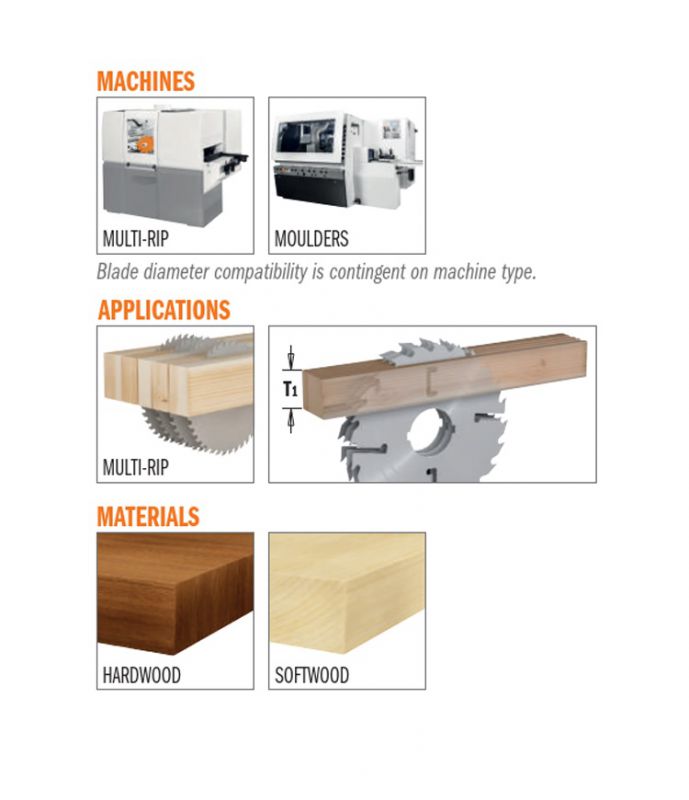

Suitable for use with

  • Multi-rip machines
  • Moulders
  • (Blade diameter compatibility is contingent on machine type)

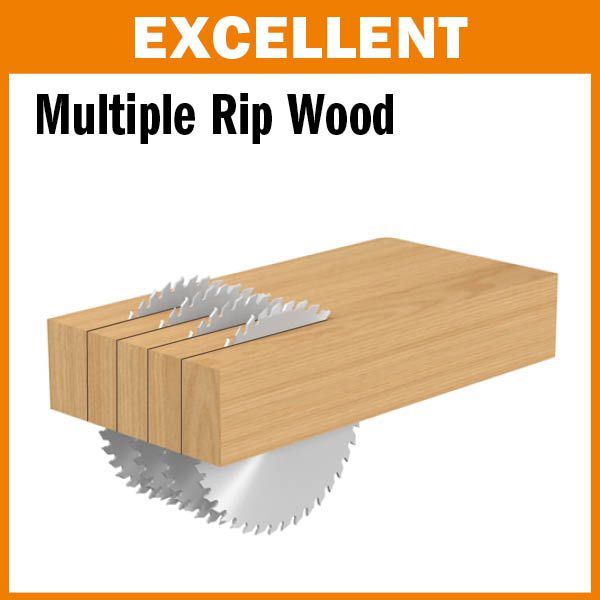

Applications

  • Multi-rip
  • Hardwood
  • Softwood



Technical details

  • Teeth height mm: 10
  • ISO grade: K20
  • Hardness (HV10): 1.640
  • Transverse rupture strength (N/mm2): 2.200

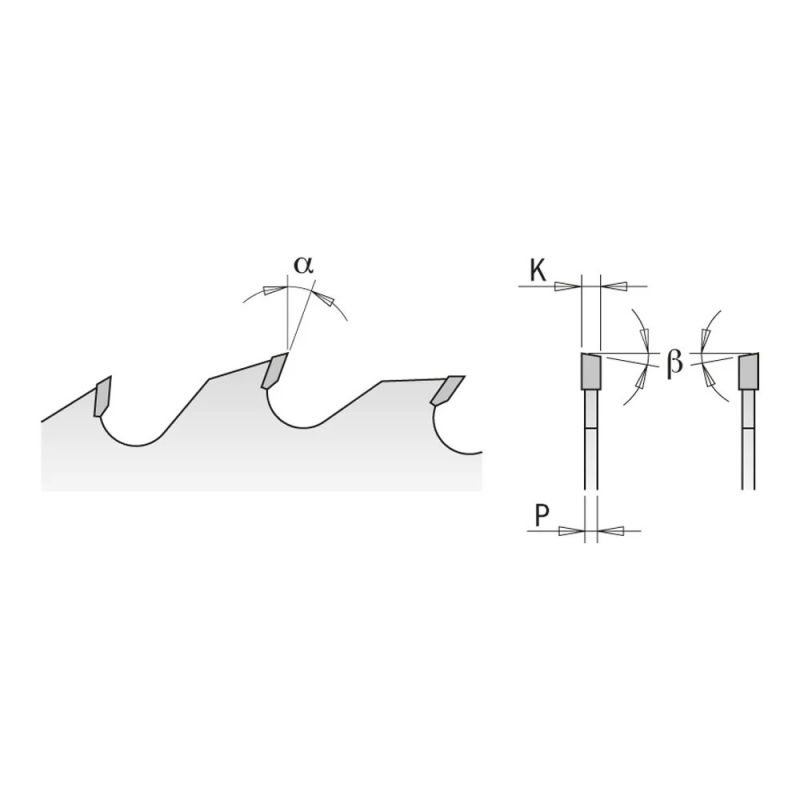

Specification

  • (D) Diameter: 180mm
  • (B) Bore: 40mm
  • Key Way: n/a
  • (Z) Number of cutting edges/teeth + rakers: 21+3
  • (K) Kerf thickness: 2.5mm
  • (P) Plate thickness: 1.8mm
  • (T) Maximum stock thickness: 30mm
  • (α) Hook angle: 18 degrees
  • (β) Type of grind: Flat (flat top grind)
