CMT Industrial Multi-Rip Saw Blade with Rakers - 300mm dia x 4 kerf x 80 bore Z24 10° ATB

X
Product Code: CMT/277.024.12W
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£111.93 Inc. VAT
£93.27 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Check out our Fair Deal on Delivery Promise
CMT Orange Tools

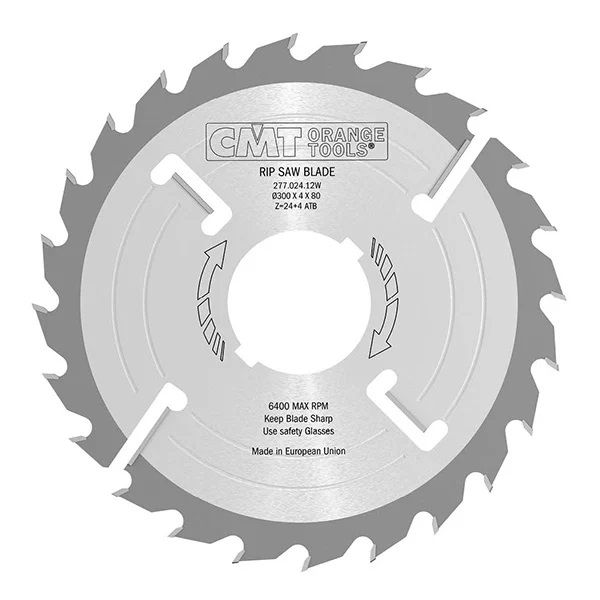

CMT Industrial Multi-Rip Saw Blade with Rakers - Wood - 300mm dia x 4 kerf x 80 bore Z24 10° ATB
Ref: 277.024.12W



Key Features

  • Mounted on the sides of gang rip saws, these act as shoulder saw blades and help ensure stability and reduce vibrations under extreme work loads.
  • The rakers prevent contact between the steel plate body and the material in use.
  • Tungsten carbide tipped
  • Tool for mechanical feed.
  • Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.

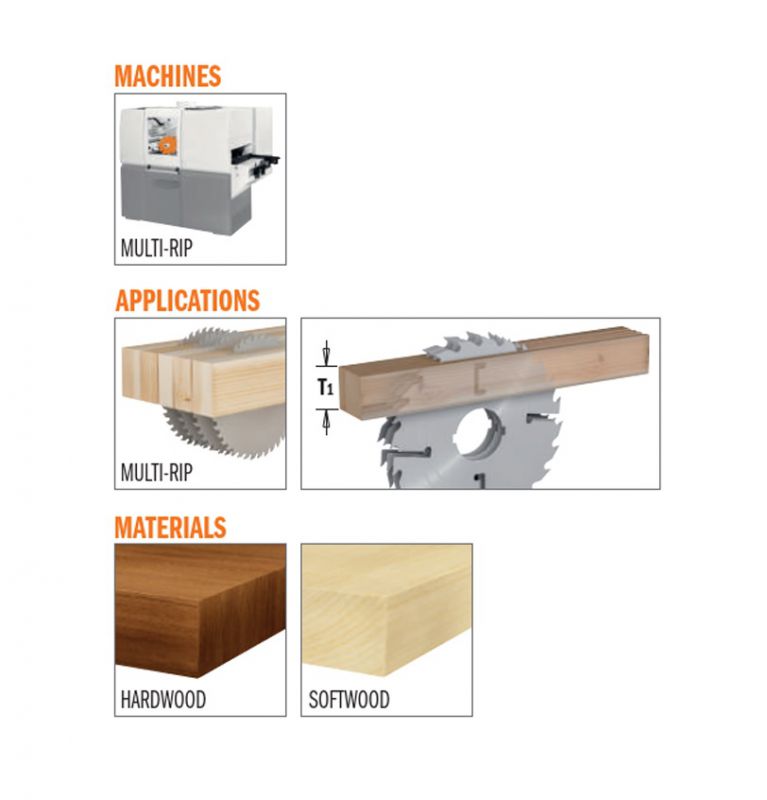

Suitable for use with

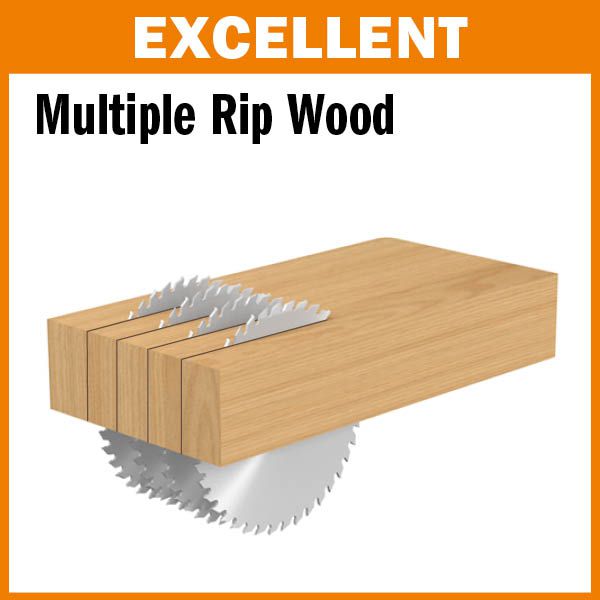

  • Multi-rip machines



Applications

  • Multi-rip
  • Hardwood
  • Softwood



Technical details

  • Teeth height mm: 10
  • ISO grade: K20
  • Hardness (HV10): 1.640
  • Transverse rupture strength (N/mm2): 2.200

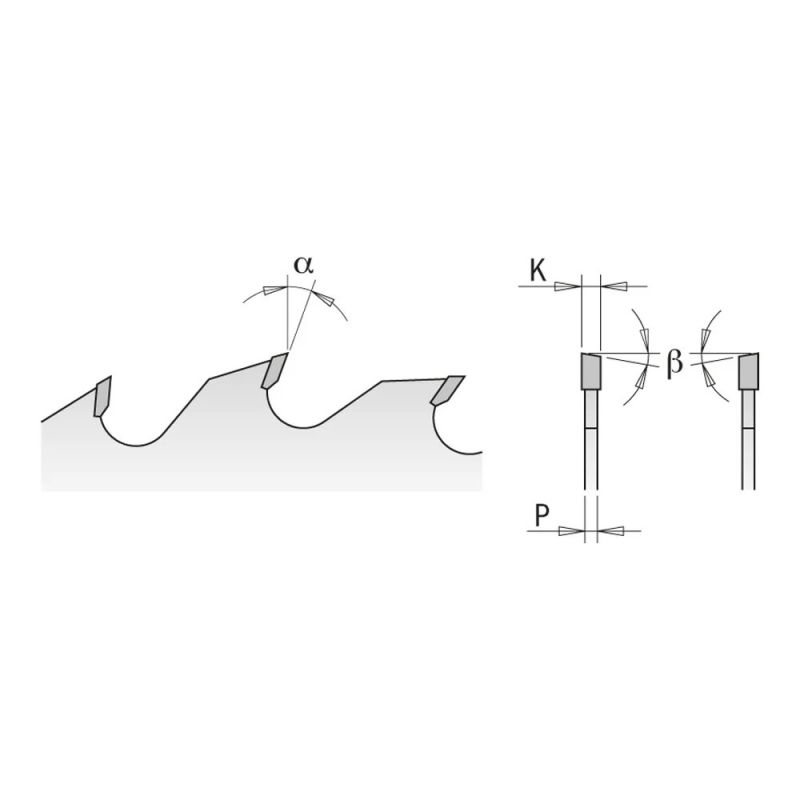

Specification

  • (D) Diameter: 300mm
  • (B) Bore: 80mm
  • Key Way: 13x5
  • (FT) Pin hole: n/a
  • (Z) Number of cutting edges/teeth + rakers: 24+4
  • (K) Kerf thickness: 4.0mm
  • (P) Plate thickness: 2.8mm
  • (T) Maximum stock thickness: 80mm
  • (α) Hook angle: 18 degrees
  • (β) Type of grind: 10° ATB (alternate top bevel grind)
