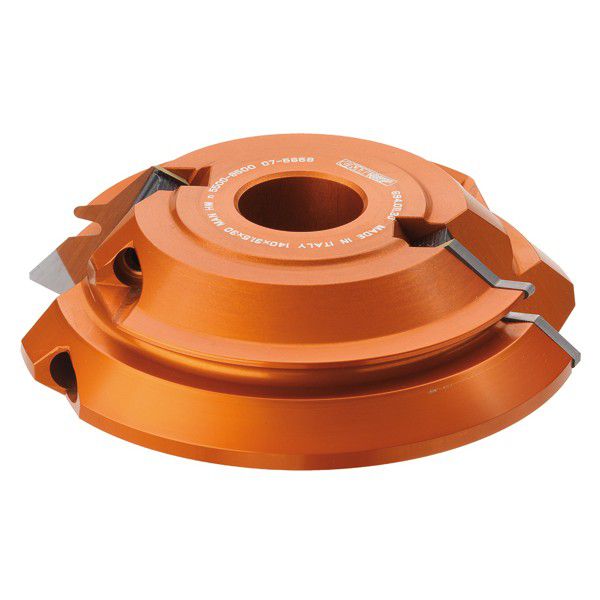

CMT Lock Mitre Cutter Head CMT 694.011.31

CMT 45° lock miter cutter heads
Ref: 694.011.31

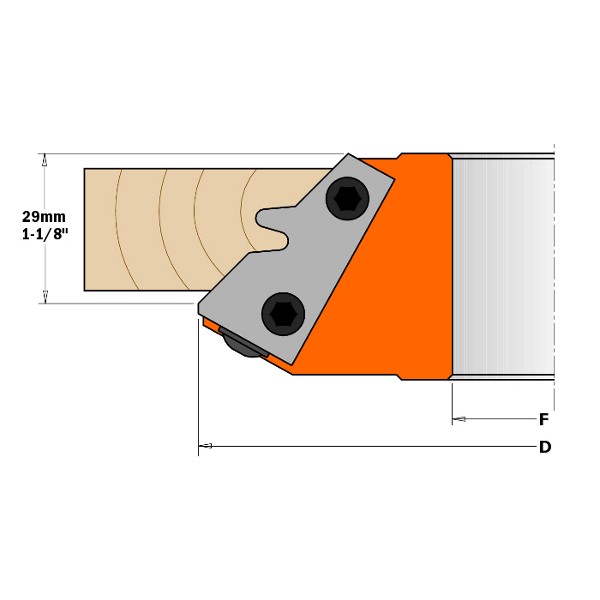

• CMT’s lock miter cutter heads are ideal for milling miter joints in stock with maximum 28mm (1-7/64") in thickness.

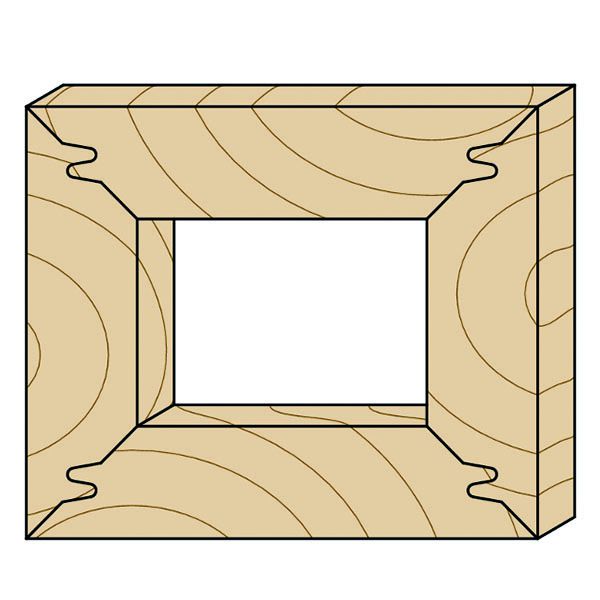

• Create boxes, stretcher bars, frames and any assortment of right angle or parallel joint projects.

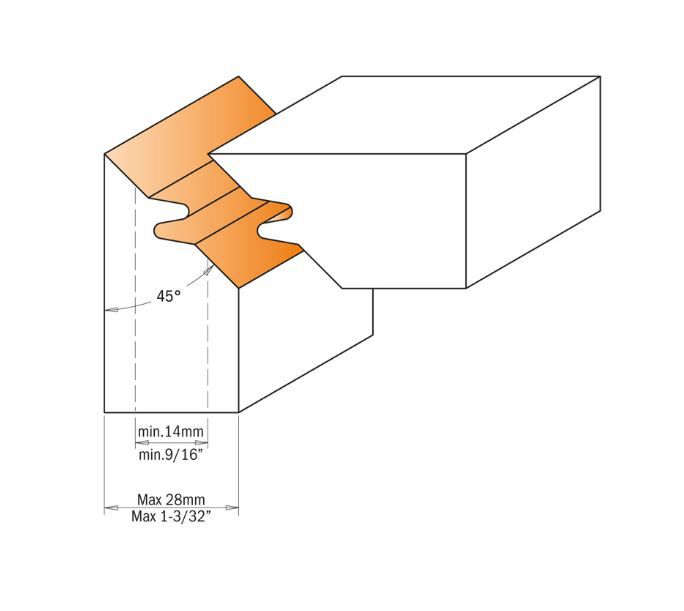

• Two easy steps to produce perfectly fitting 45° miter joints: first, position your workpiece horizontally, then vertically.
• Also, create parallel glue joints in two steps: place your workpiece horizontally, internal side facing down, and then turn it facing up.
• For use on spindle moulder and shaper machines. Perfect on all materials, but ideal on solid wood and panels.
• Supplied in a solid plastic box

• Hard aluminium alloy body with high resistance to tensile and yield stress.
• 2 HWM knives 43x23x2mm [Z2].
• Tools for manual feed (MAN).
• Pins for the automatic positioning of the knives.

• D: 140mm (diameter)
• B: 31,75mm (bore diameter)
• Z: 2 (number of cutting edges)
• RPM: 5500~9500
