CMT Multiradius Roundover Cutter Head 132mm dia, 30mm bore - 694.004.30

CMT Multiradius Roundover Cutter Head 132mm dia, 30mm bore

ref: 694.004.30

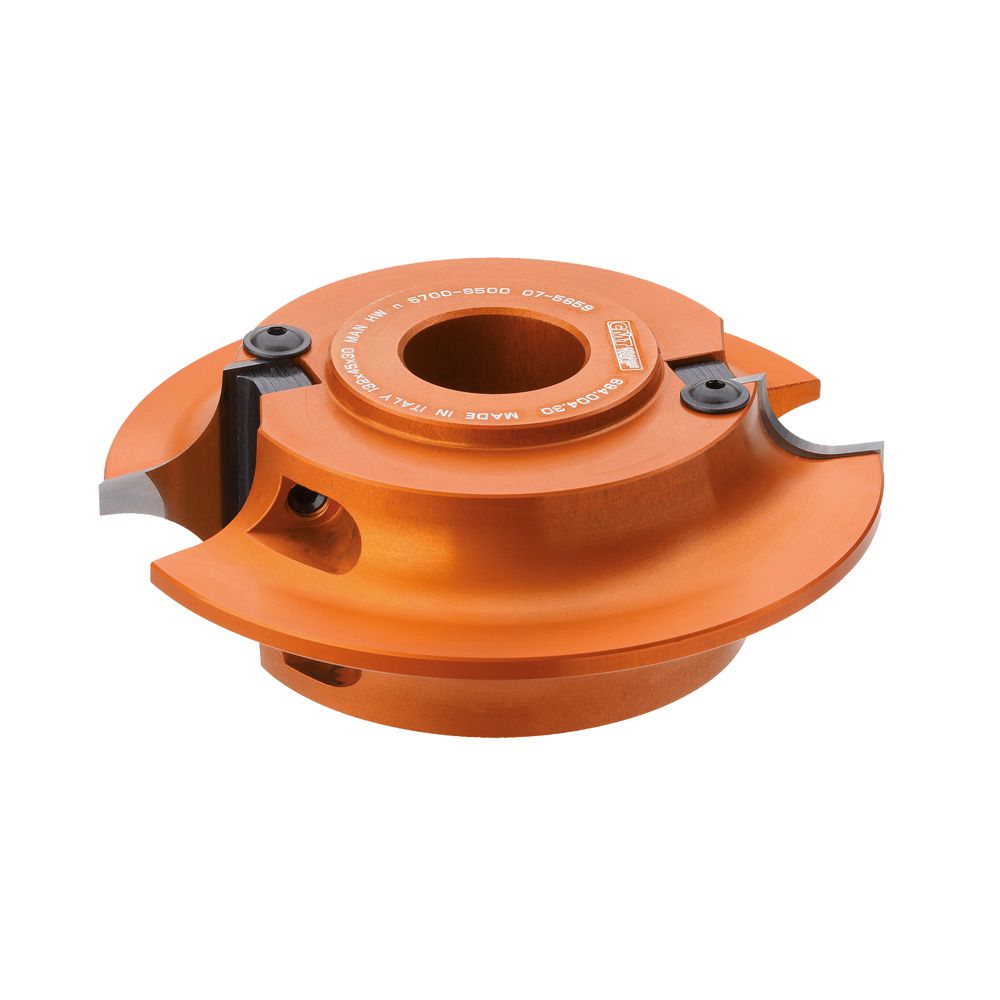

• MULTIRADIUS ROUNDOVER CUTTER HEAD
• Innovative cutter heads supporting two different knives for making four radius roundover profiles.

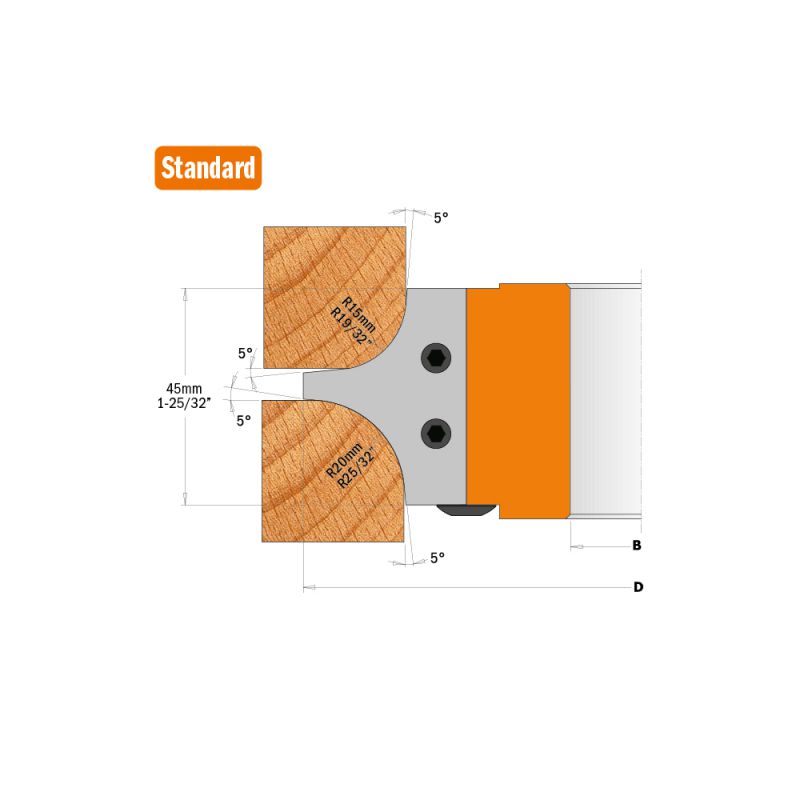

• Standard cutter heads are sold with knives featuring radii 15 and 20mm; one more knife set is available for radii 12-18mm.
• Supplied in a solid plastic box.
• Insert carbide
• Tool for manual feed
• Two cutting edges

• Spindle moulder machines, double-end tenorer and shaper machines.

• Suitable for all materials, but ideal on solid wood and panel materials.

•  Hard aluminium alloy body with high resistance to tensile and yield stress.

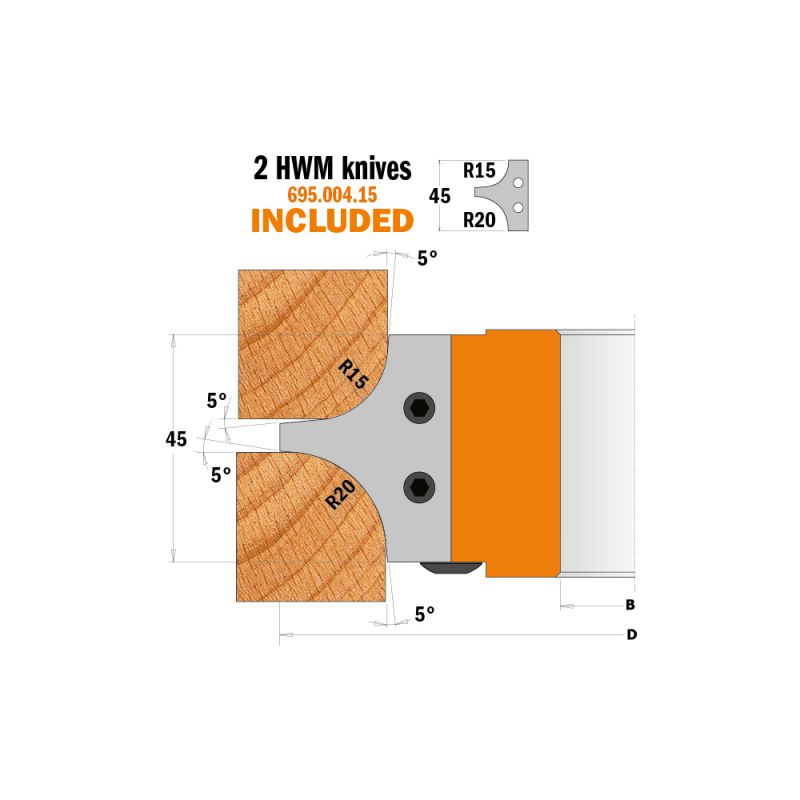

•  2 HWM knives radius 15/20mm (45x34,5x2mm) [Z2].
•  Tools for manual feed (MAN).
•  Pins for the automatic positioning of the knives.

• (D) Diameter: 132mm
• (B) Bore: 30mm
• (Z) Number of cutting edges: 2
• RPM: 5700 - 9500
• Material: HW
