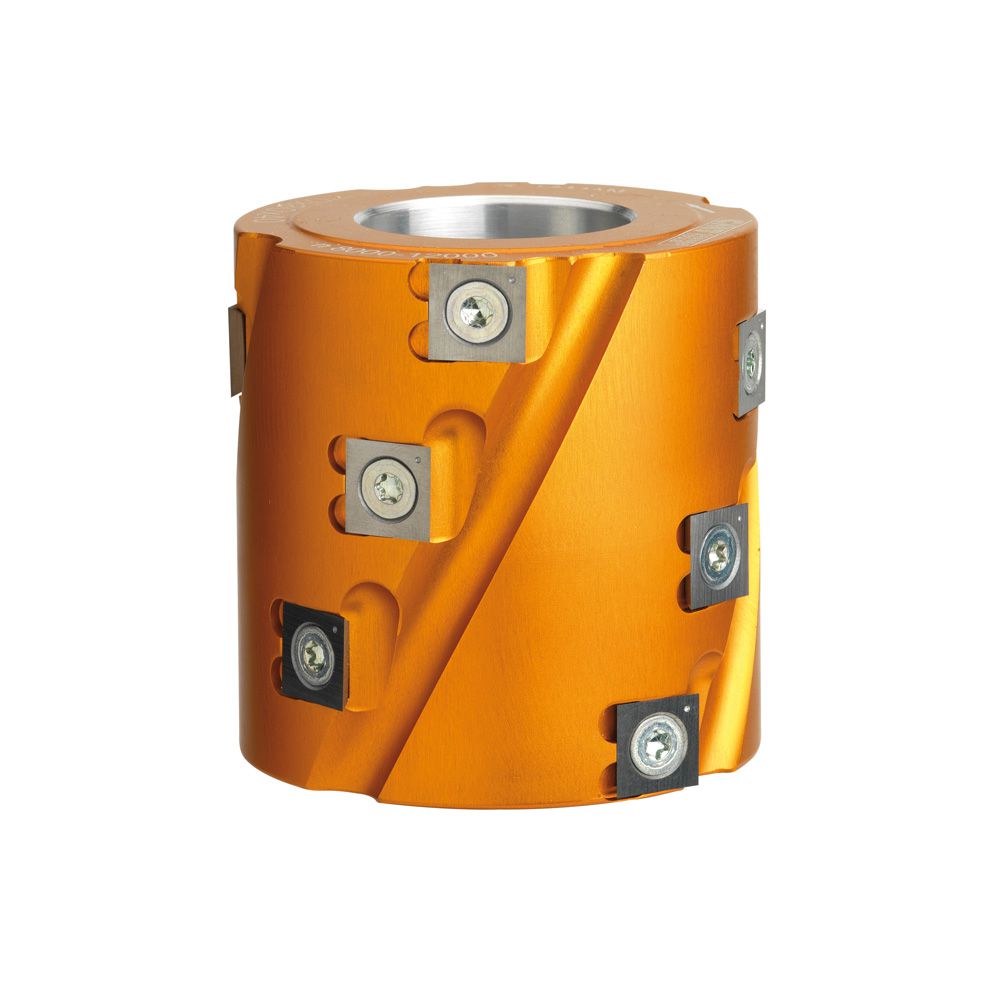

CMT Planing and Jointing Spiral Cutter Head 62mm dia, 35mm bore, 80mm length - 694.019.35

CMT Planing and Jointing Spiral Cutter Head 62mm dia, 35mm bore, 80mm length

ref: 694.019.35

• PLANING AND JOINTING SPIRAL CUTTER HEAD
• These new cutter heads have been designed for planing and jointing on soft or hard wood and wooden boards on spindle moulder machines

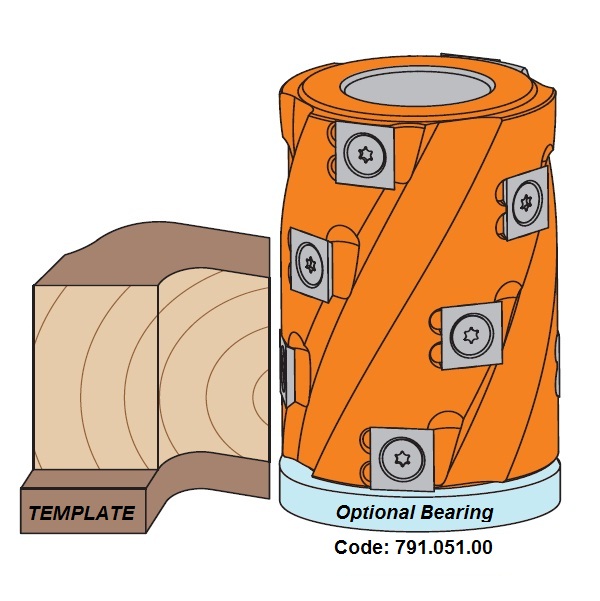

• Ideal for routing our curved elements by using a bearing guide (sold separately) and a template.
• Supplied in a plastic twistpack
• Insert carbide
• Tool for manual feed
• 12 cutting edges
• Note: In order to achieve an extra-fine finish, you can order the optional knife 790.140.20

• Hard aluminium alloy body with high resistance to tensile and yield stress.

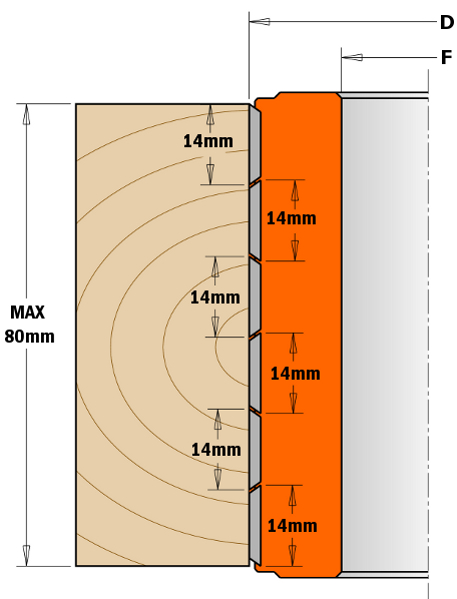

• 12 HWM Knives 14x14x2mm [Z2] with 4 spiral indexing.
• Tools for manual feed (MAN).

• (D) Diameter: 62mm
• (I) Cutting length: 80mm
• (B) Bore: 35mm
• (Z) Number of cutting edges: 12
• RPM: 8000 - 12000
• Material: HW
