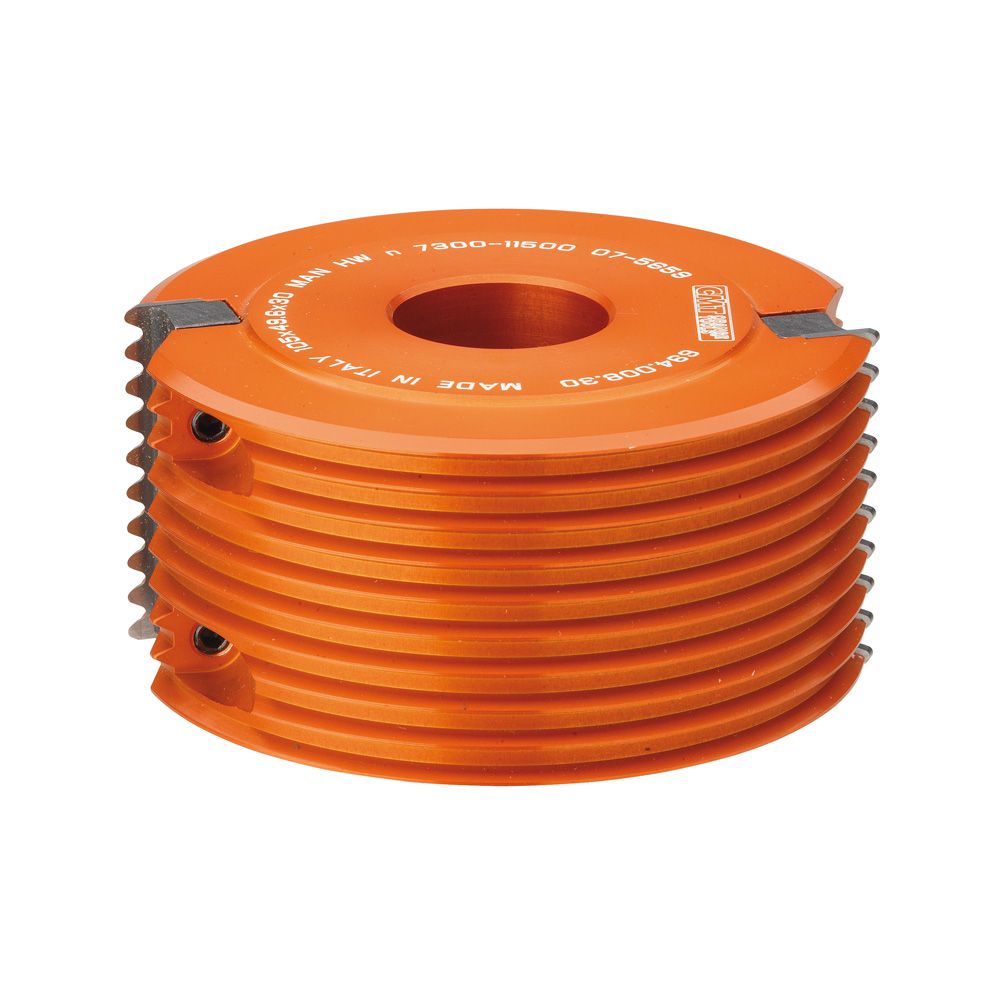

CMT Professional Finger Joint Cutter Head 105mm dia, 35mm bore - 694.008.35

CMT Professional Finger Joint Cutter Head 105mm dia, 35mm bore

ref: 694.008.35

• The professional CMT finger joint cutter heads allow for making the most incredibly strong side-to- side joints on all wood types and composites.

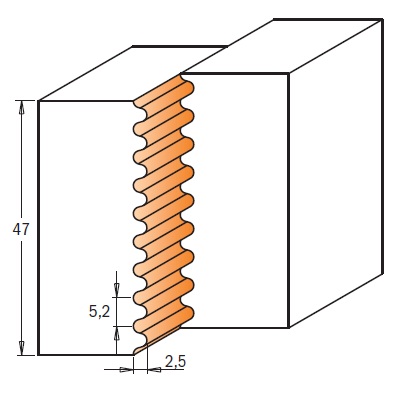

• The tightness of the joint and the maximum glue surface make the joint itself stronger than an unworked piece of wood, in stock with maximum 47mm (1-7/8") in thickness. Ideal for molding manufactures and furniture makers.
• Perfect on all materials, but ideal on solid wood and panel materials.

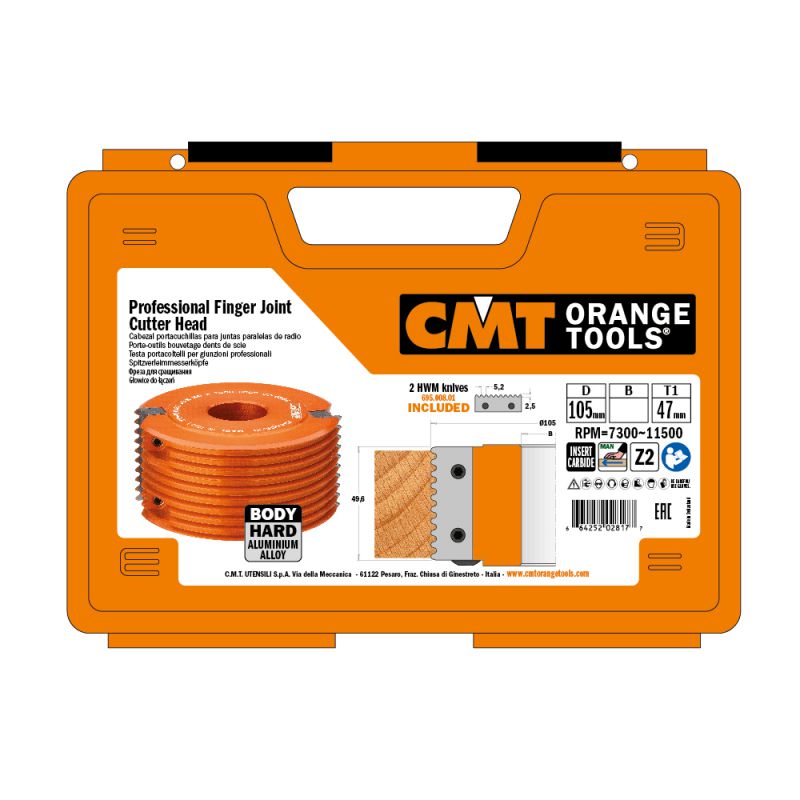

• Supplied in a solid plastic box
• Insert carbide
• Tool for manual feed
• Two cutting edges

• Spindle moulder machines, double-end tenoner and shaper machines.

• Hard aluminium alloy body with high resistance to tensile and yield stress.

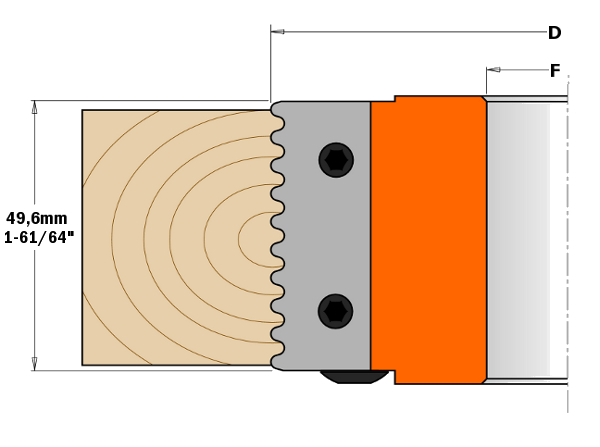

• 2 HWM knives (49,6x11,9x1,5mm - Z2).
• Tools for manual feed (MAN).
• Pins for the automatic positioning of the knives.

• (D) Diameter: 105mm
• (B) Bore: 35mm
• (Z) Number of cutting edges: 2
• RPM: 7300 - 11500
• Material: HW

Cutter Head Safety Sheet

Cutter Head Usage Guide
