CMT Professional Raised Panel Cutter Head 183mm dia, 30mm bore - 694.013.30

X
Product Code: CMT/694.013.30
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£257.59 Inc. VAT
£214.66 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
CMT Orange Tools

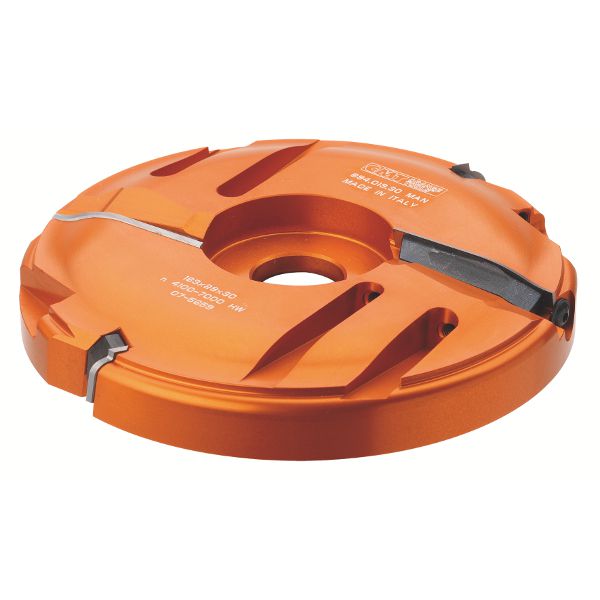

CMT Professional Raised Panel Cutter Head 183mm dia, 30mm bore

ref: 694.013.30



Key Features

  • We offer the traditional approach to panel construction with these CMT raised panel cutter heads.

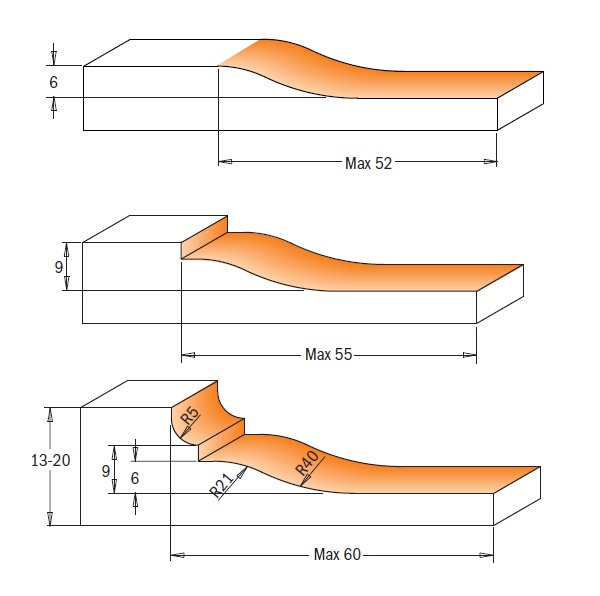

  • Make classic raised panels on furniture, interior and cabinet doors on solid wood and wooden boards, and achieve three different profiles by adjusting the cutting depth.
  • We recommend multiple passes for safe and accurate finishing.
  • For use on spindle moulders. Perfect on all materials, but ideal on solid wood and panels.
  • Supplied in a solid plastic box
  • Insert carbide
  • Tool for manual feed
  • 2 plus 2 cutting edges



Suitable for use with

  • Spindle moulders



Technical details

  • Hard aluminium alloy body with high resistance to tensile and yield stress.

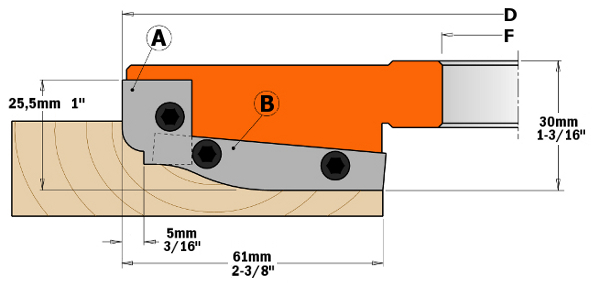

  • 2 HWM Knives type (A) - (19,8x11,9x1,5mm - Z2).
  • 2 HWM Knives type (B) - (60x11,9x1,5mm - Z2).
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.



Specification

  • (D) Diameter: 183mm
  • (B) Bore: 30mm
  • (Z) Number of cutting edges: 2 + 2
  • RPM: 4100 - 7000
  • Material: HW



Cutter Head Safety Sheet

Cutter Head Usage Guide
