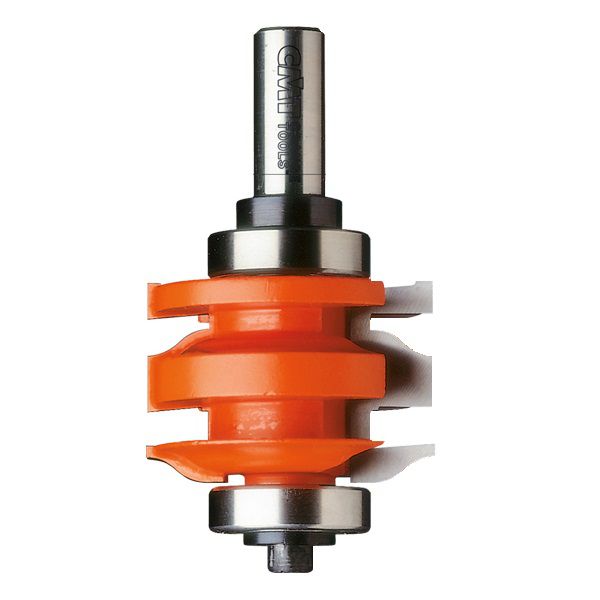

CMT Rail & stile set - 50.8 dia x 1/2 shank

CMT Rail & stile set
Ref: 891.521.11

• The most innovative bit for the construction of doors and drawers. Two cutters are embodied in a unique bit to allow you to cut two perfectly joining profiles efficiently and effectively, and also to reduce costs by investing in a single CMT bit rather than multiple cutters. For use in stock from 18mm (11/16”) to 22.2mm (7/8”).
• SAFETY PRECAUTIONS: always unplug the router before making any adjustments to the bit. Use push blocks and featherboards to control the workpiece.

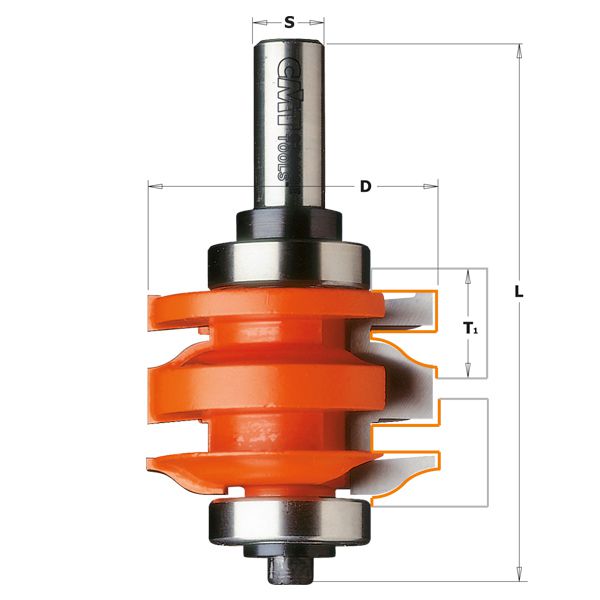

• T: 22 (maximum stock thickness)
• S: 12.7 (shank diameter)
• L: 96 (overall length)
• D:50.8 (diameter)
