CMT Roundover and Cove Cutter Head 121mm dia, 30mm bore - 694.007.30

X
Product Code: CMT/694.007.30
Brand: CMT Orange Tools
Low Stock - Please Call For Availability
£227.13 Inc. VAT
£189.27 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
CMT Orange Tools

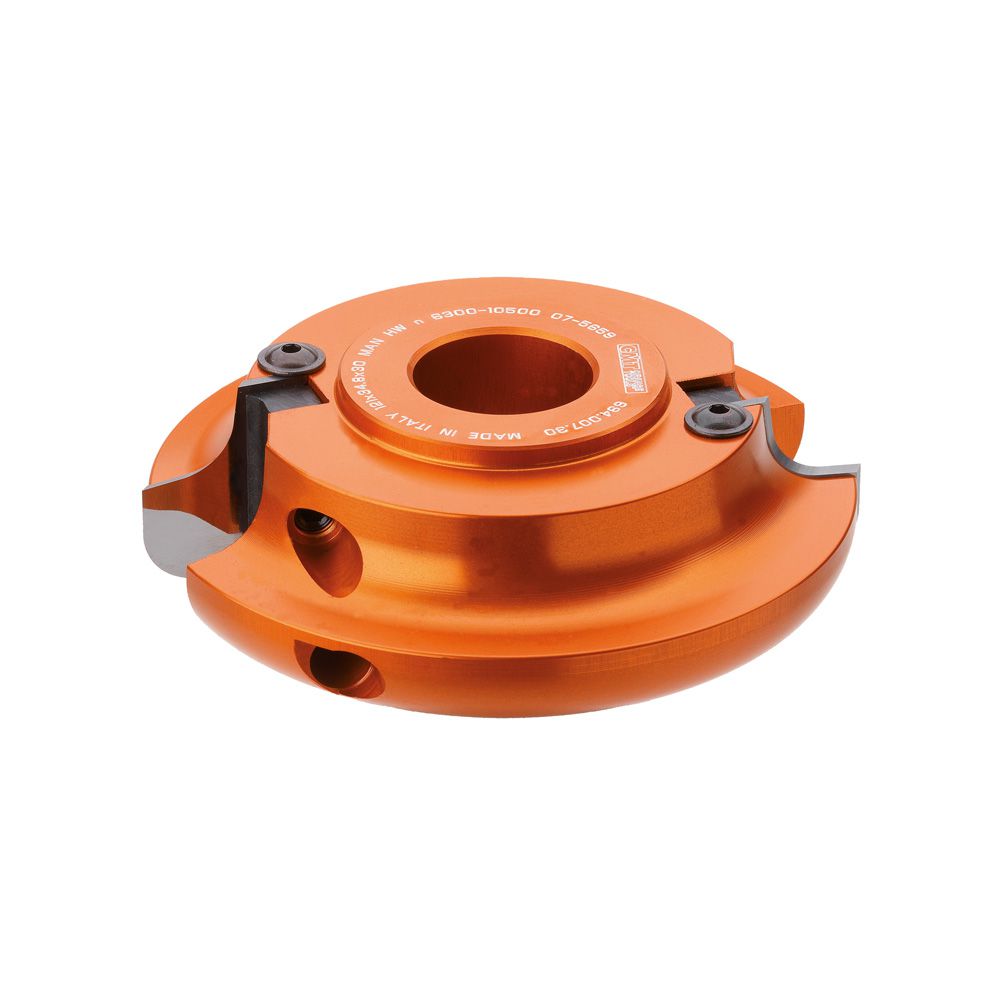

CMT Roundover and Cove Cutter Head 121mm dia, 30mm bore

ref: 694.007.30



Key Features

  • ROUNDOVER AND COVE CUTTER HEADS
  • These cutter heads are perfect for making furniture, doors and drawer fronts simply and stylishly by giving them a final touch with a CMT cove bit.
  • It is also used for making perfect roundover profiles, drop leaf counters and table tops.

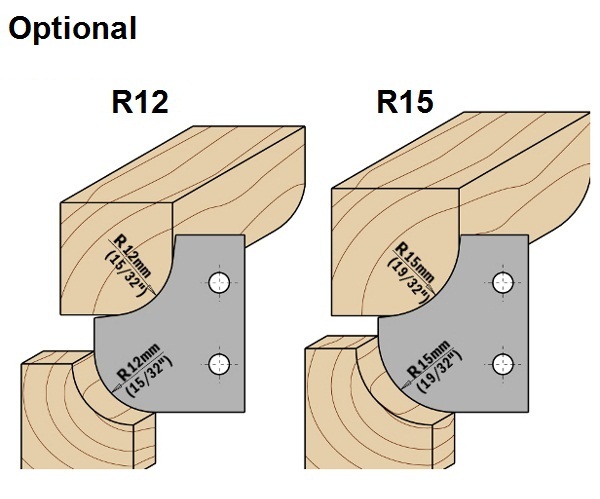

  • You can use three different knives for carrying out roundover and cove profiles with radius 10mm (25/64"), 12mm (15/32") and 15mm (19/32").
  • Perfect on all materials, but ideal on solid wood and panel materials.

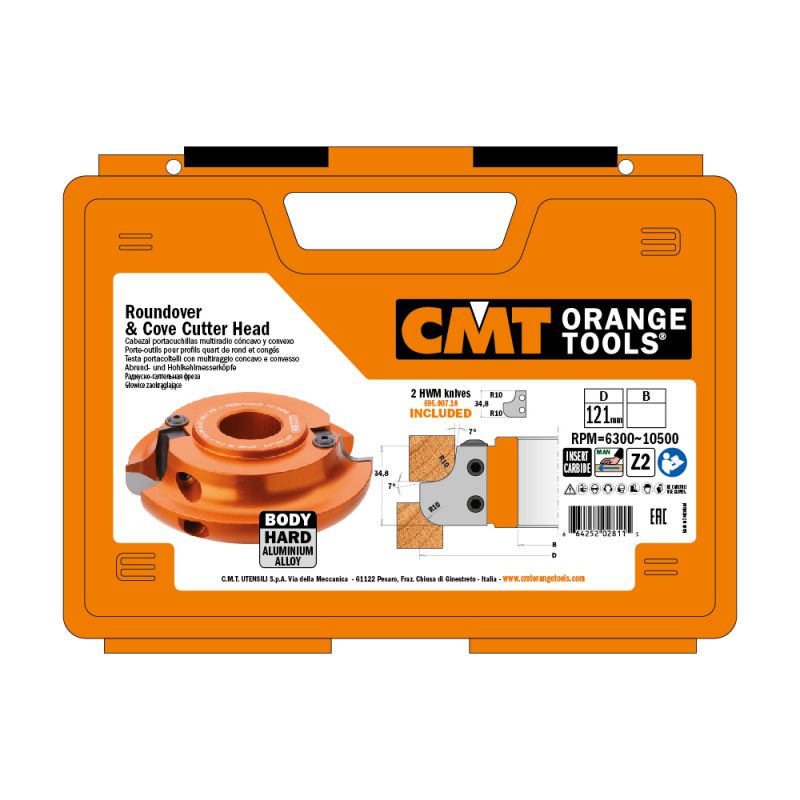

  • Supplied in a solid plastic box
  • Insert carbide
  • Tool for manual feed
  • Two cutting edges



Suitable for use with

  • Spindle moulder machines, double-end tenoner and shaper machines.



Technical details

  • Hard aluminium alloy body with high resistance to tensile and yield stress.

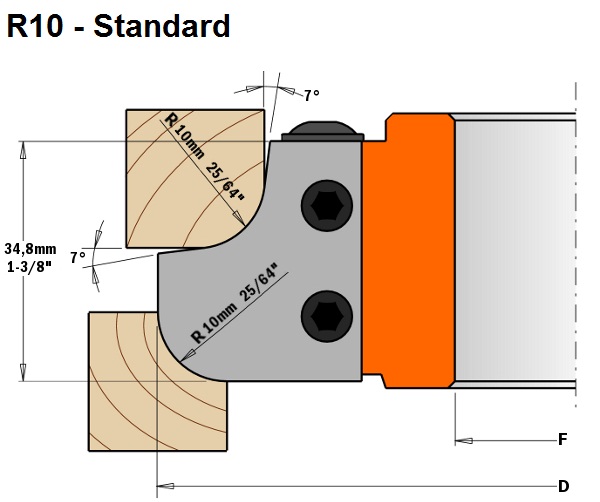

  • 2 HWM knives with radius 10mm (25/64") - (34,8x29,3x2mm - Z2).
  • Tools for manual feed (MAN).
  • Pins for the automatic positioning of the knives.



Specification

  • (D) Diameter: 121mm
  • (B) Bore: 30mm
  • (Z) Number of cutting edges: 2
  • RPM: 6300 - 10500
  • Material: HW



Cutter Head Safety Sheet

Cutter Head Usage Guide
