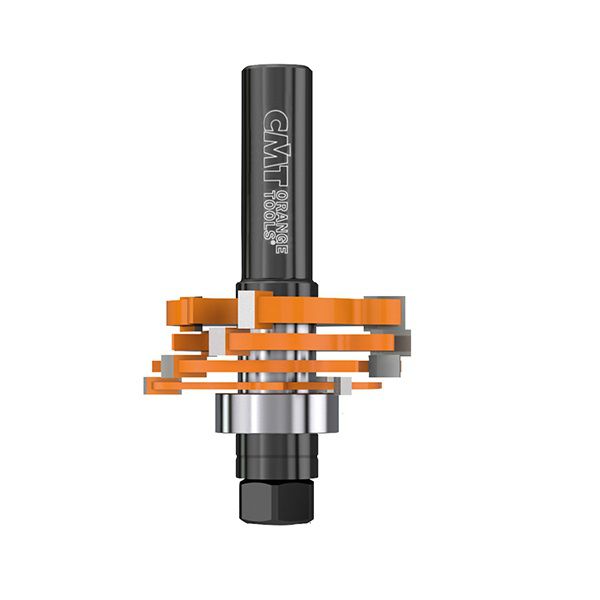

CMT Slot Cutter Set, Three Wing - 47.6 dia x 18mm cut x 1/2 shank

CMT Slot Cutter Set, Three Wing
Ref: 800.506.11

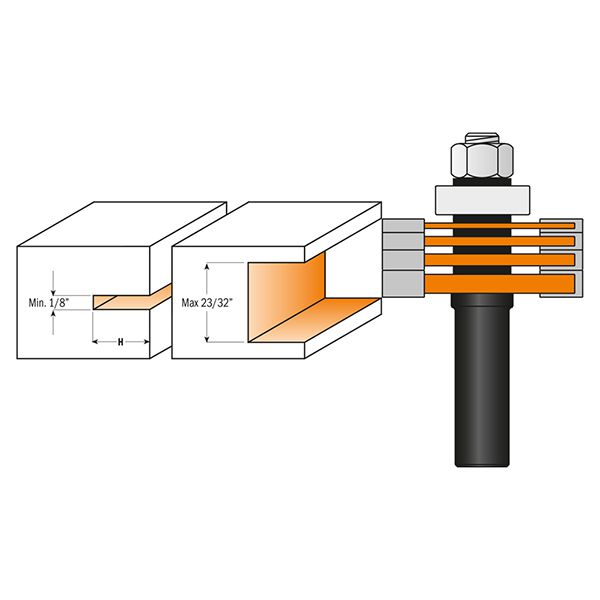

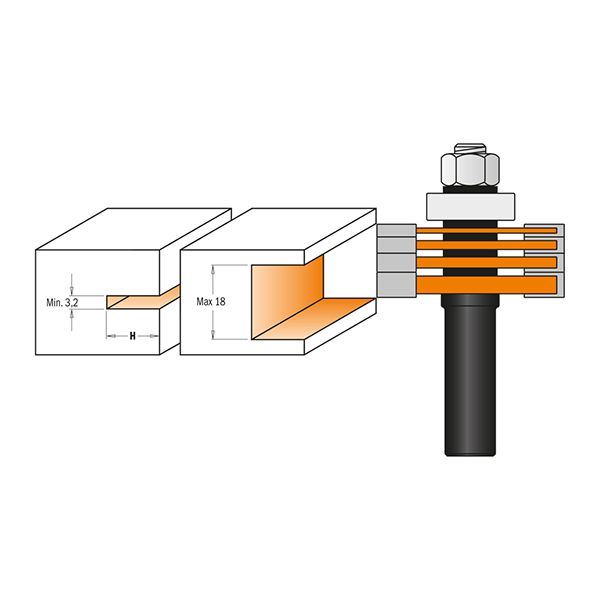

• Create slots, grooves and rabets in materials from 3.2mm to 18mm in depth by using the adjustable CMT Three Win Slot Cutter Set.
• Ideal for biscuit joints and milling perfet tongue and groove joints.
• Safety tips: Never use the slot cutter set without shims between the cutters. The distance between the cutters can vary from 1mm to 1.7mm. A shim must also be positioned between the ball bearing and the cutters.
• Shop tips: The bearnings kit 791.711.00 allows you to achieve 6.35 and 9.5mm cutting depth.

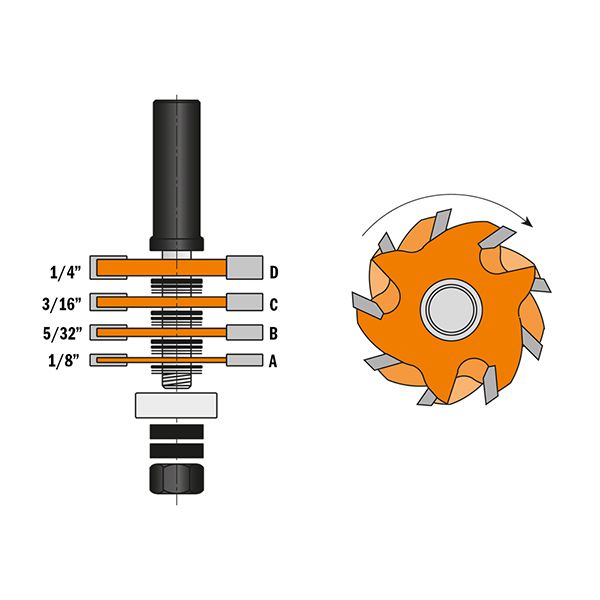

• Note: the carbide edges of the cutters should never touch; arrange the shims as illustrated below. Use only the thicknesses provided in the set. Be sure all cutters are assembled in the proper right rotational direction below. Looking down the arbor the cutters will turn clockwise.

• 4 carbide tipped cutters 3.2mm, 4mm, 4.8mm, 6.4mm
• 1 arbor 12mm or 12.7mm
• 1 ball bearing (22mm) for 12.7mm cut
• 17 shims: (8x0.1mm - 4x0.5mm  3x1mm and 2x4mm)

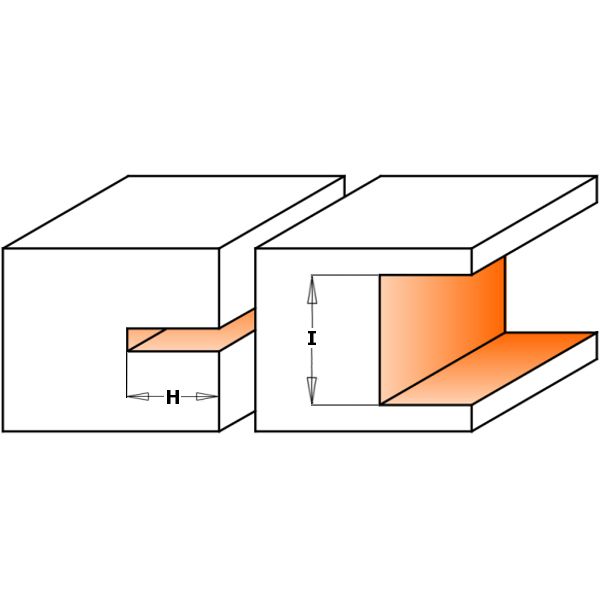

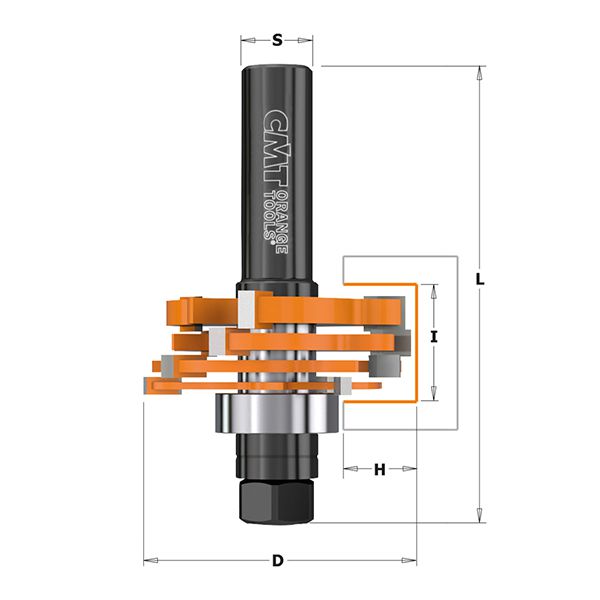

• I: 18 (cutting length)
• D: 47.6 (cutting diameter)
• H: 12.8 (cutting depth)
• L: 81 (overall length)
• S: 12.7 (shank diameter)
• I1: 3.2
