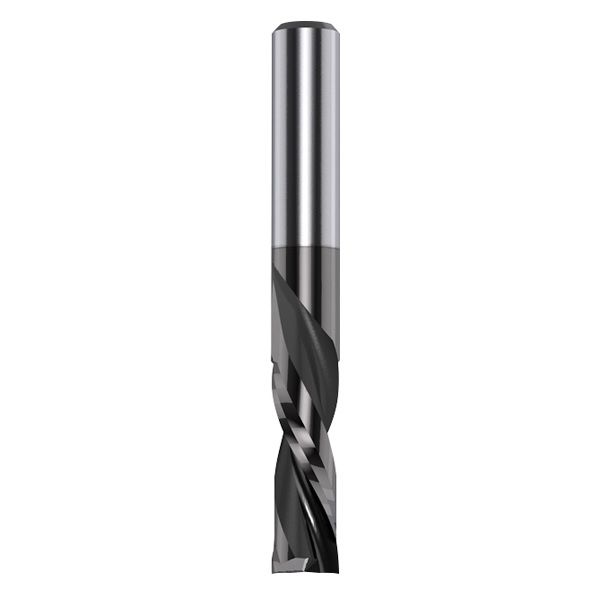

CMT Solid Carbide Downcut Spiral Bit DCLS Chrome 6.35 dia x 19.05mm cut x 1/4 shank

CMT Solid Carbide Downcut Spiral Bit DCLS Chrome 6.35 dia x 19.05mm cut x 1/4 shank

ref: 192.007.41

• SOLID CARBIDE DOWNCUT SPIRAL BITS - DLCS CHROME COATING - LONG LIFE
• Used for efficient contour cutting, end-trimming and panel sizing on solid wood, wood composites, plastic materials and laminates at high feed speed. Ensure to properly clamp workpieces. Can be used on machining centres, point-to-point boring machines, CNC routers and hand-held routers equipped with chucks or adaptors.
• THE ULTIMATE TECHNOLOGY FOR INDUSTRIAL CNC TOOLS: DLCS is a modified diamond-like carbon coating with enhanced load bearing capacity. A hard, durable metal-based layer (chromium nitride) provides an higher hardness surface and increases the resilience of the superposed, tribologically effective carbon coating. Coating prevents high heats which is detrimental to cutting tool performance and will remain fully effective after use.
• DLCS CHROME COATING: provides 3 times longer life than uncoated tools!
• EXTREME COATING HARDNESS >HV 2.500: Offers impressive hardness on cutting areas of the tool and superb protection against abrasive wear and stress resistance.
• MINIMAL COATING THICKNESS ΜM 2-4: The minimal micron coating guaranteed perfect sharpen edges for high cutting quality.
• HIGH WORKING TEMPERATURE: Less overheating! The coating guarantees working temperature up to 400° preserving the cutting edges from wear.

• TEST PERFORMED IN U.S. WITH ½” SOLID CARBIDE COMPRESSION SPIRAL BIT
• Machine: Felder Profit H10 Nested Base/Overhead CNC Router.
• Working Parameters: RPM = 18,000 - Feed = 20 mts/minute.
• Material: 19mm Melamine Chipboard.
• Application: Nesting Full Dimensioning.
• Performance: DLCS coated bit cut 165 melamine panels. Uncoated bit cut 56 melamine panels.

• D: 6.35 (diameter)
• I: 19.05 (cutting length)
• L: 50.8 (overall length)
• S: 6.35 (shank diameter)
• Z: 2 (number of cutting edges)
• MAT: HWM (material)
• Right hand
