CMT XTreme Diamond Conical Scoring Blade 120mm dia x 3.1-3.7 kerf x 20 bore Z20 CON

X
Product Code: CMT/238.120.20H
Brand: CMT Orange Tools
Available to Order
Delivery Times Vary - Please Call
£317.93 Inc. VAT
£264.94 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Check out our Fair Deal on Delivery Promise
CMT Orange Tools

CMT XTreme Diamond Conical Scoring Blade 120mm dia x 3.1-3.7 kerf x 20 bore Z20 CON
Ref: 238.120.20H



Key Features

  • High-quality nickel-plated saw blades with anti-friction and anti-corrosion properties.
  • Polycrystalline (diamond) tipped
  • Lasts up to 50 x longer than traditional tungsten carbide tools
  • Teeth height mm: 4
  • ISO grade: 2 µm
  • Hardness (HV): 10.000
  • Resharpanable: 6 times
  • Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.



Suitable for use with

  • Horizontal and vertical sizing machines equipped with scoring device.
  • Squaring machines.



Applications

  • Sizing cuts
  • For chip-free scoring of the plastic-laminated panels
  • One-sided or double-sided plastic-laminated panels, melamine, MDF and HDF.

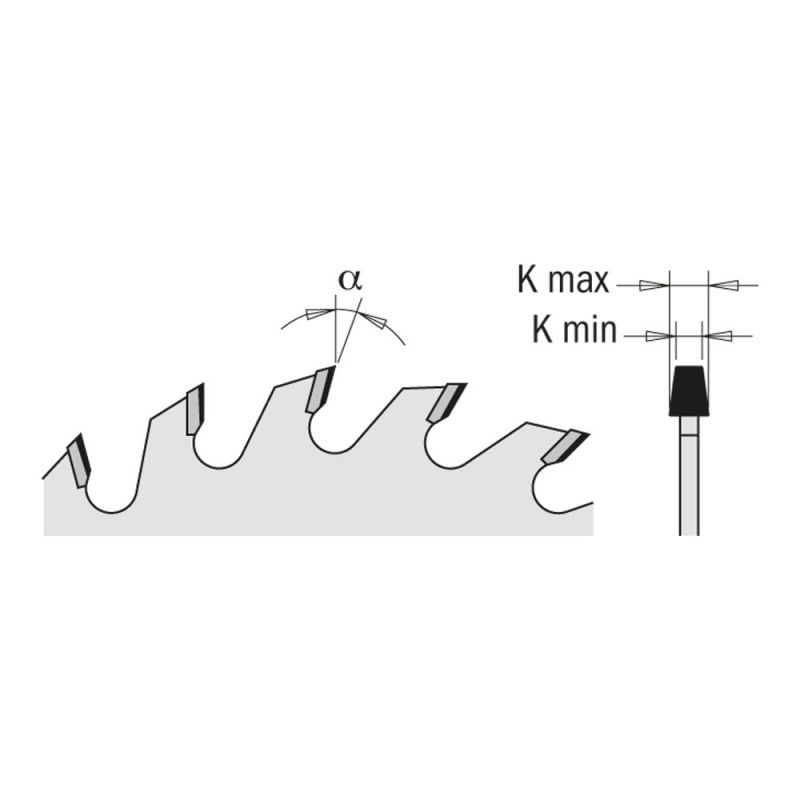

Specification

  • (D) Diameter: 120mm
  • (B) Bore: 20
  • (Z) Number of cutting edges/teeth: 20
  • (K) Kerf thickness: 3.1 - 3.7
  • (P) Plate thickness: 2.2mm
  • (β) Type of grind: CON
  • (α) Hook angle: 5 degrees
