CMT Xtreme Noiseless Multi-Material Saw Blade 190mm dia x 2.5 kerf x 30 bore Z24 HR

CMT Xtreme Noiseless Multi-Material Saw Blade 190mm dia x 2.5 kerf x 30 bore Z24 HR
Ref: 235.190.24M

• Xtreme noiseless: Thanks the new minimization of gullets design this blade succeeded in reducing the noise of idling by up to 15 dB(A) compared to conventional carbide saw blades. With a noise level of just around 70dB(A) when idling, the wearing of hearing protection is outdated.
• Xtreme all around: New industry standard with universal application in countless materials and suitable for all chop saws an and portable machines, table and vertical panel sizing saws, CNCs and through-feed installations.
• Xtreme quality: The special hollow back tooth configuration (HR) guarantees an excellent cutting quality.
• Xtreme fast: The teeth are surprisingly thin! The cutting width is a mere 2,5 mm and they generate noticeably lower cutting pressure and therefore also require less power during usage. Resharpenable max 2 times.
• Xtreme lifetime: The lifetime is 20X longer than carbide blades thanks to the diamond tips.
• Please note: It is not recommened to use these saw blades for longitudinal cuts in soft wood and material thicknesses of more than 40mm. Do not cut materials with nails, stone and metal parts. Chip-free cuts can only be guaranteed in combination with a suitable scoring saw blade.
• Recommended use: We recommend the use of the splitting wedge with thicknesses between 2.0 and 2.4 mm.
• Please note: Image is for illustration purposes only. Please read the specification to ensure you order the correct product.

• Circular saws
• Sliding mitre saws
• Table saws
• Vertical panel saws
• CNCs and through-feed installations.

• For sizing cuts
• Gypsum plasterboard, veneered laminated wood, plywood, multiplex, double panel, floor panelling, honeycomb panel, solid wood panel, hollow alu profile, alu honeycomb panel, HPL laminate, polyethylene, board material, melamine laminated particleboard, HPL laminated particleboard, Lacquered MDF. (See attached pictures for more).

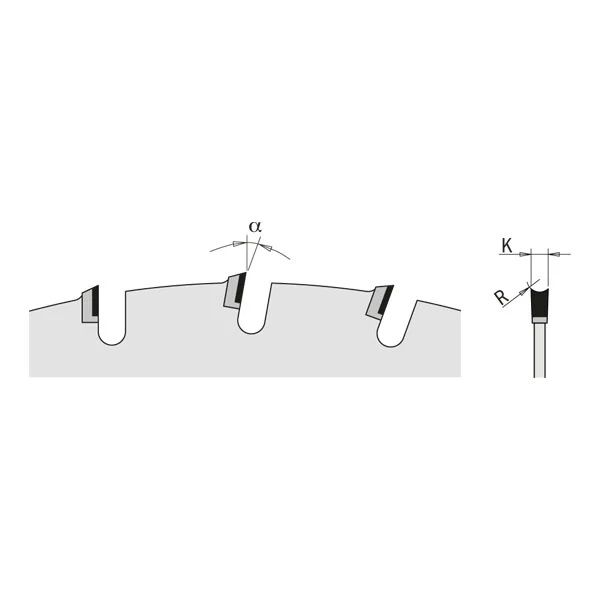

• (D) Diameter: 190mm
• (B) Bore: 30
• (FT) Pin hole: 2/7/42
• (Z) Number of cutting edges/teeth: 24
• (K) Kerf thickness: 2.5mm
• (P) Plate thickness: 2mm
• (β) Type of grind: HR
• (α) Hook angle: 10 degrees
