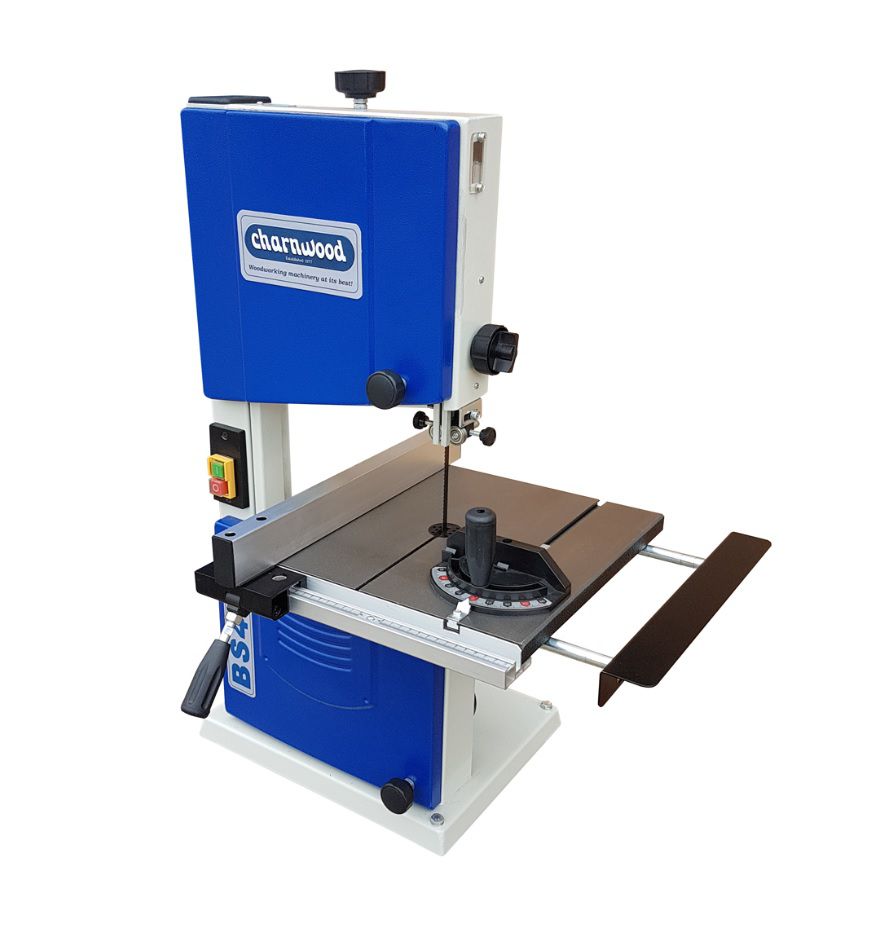

Charnwood Bandsaw BS410 10" Woodworking Bandsaw

Charnwood BS410 10" Woodworking Bandsaw - (Ref: BS410)

• Precision Ground Cast Iron Work Table
• Quick Action Locking Rip Fence
• Supplied with High Quality British Made Blade
• Quiet Induction Motor
• Crosscutting Mitre Guide Included
• 4'' Cutting Depth Capacity
• 10'' Cutting Width (Throat)

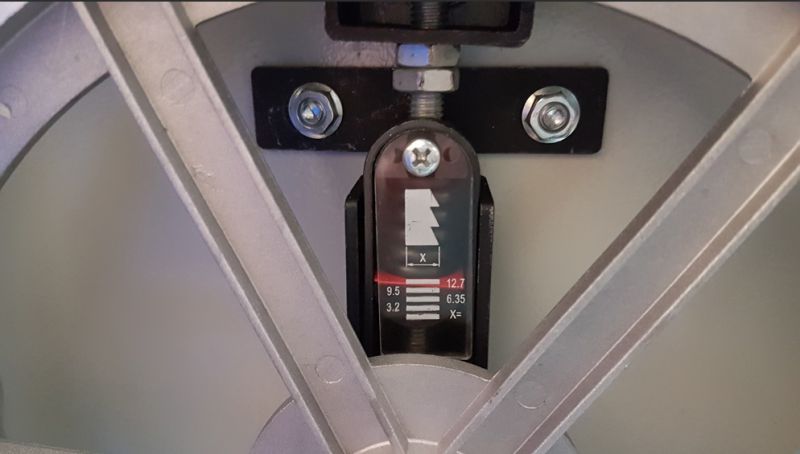

• Quick Action Blade Tension Setting

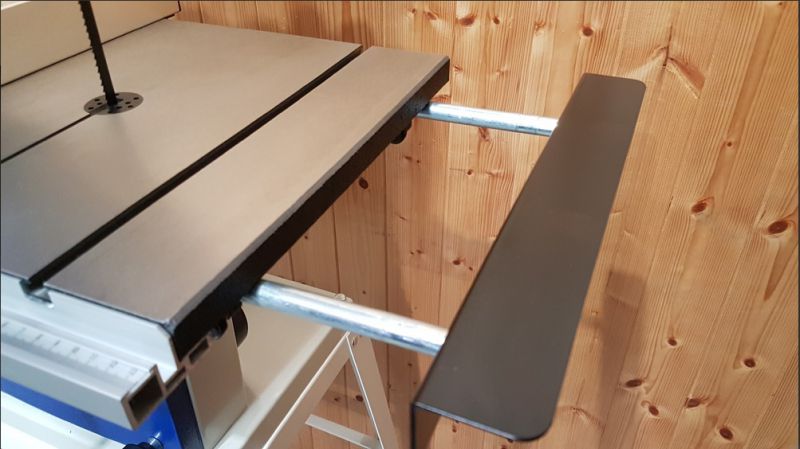

• A small sized woodworking bandsaw with a durable precision ground cast iron tilting table with a stop for returning to 90 degrees, after a bevel cut, and T shaped mitre fence slot. When working with larger pieces there is a sliding table extension support adding 100mm to the table width.

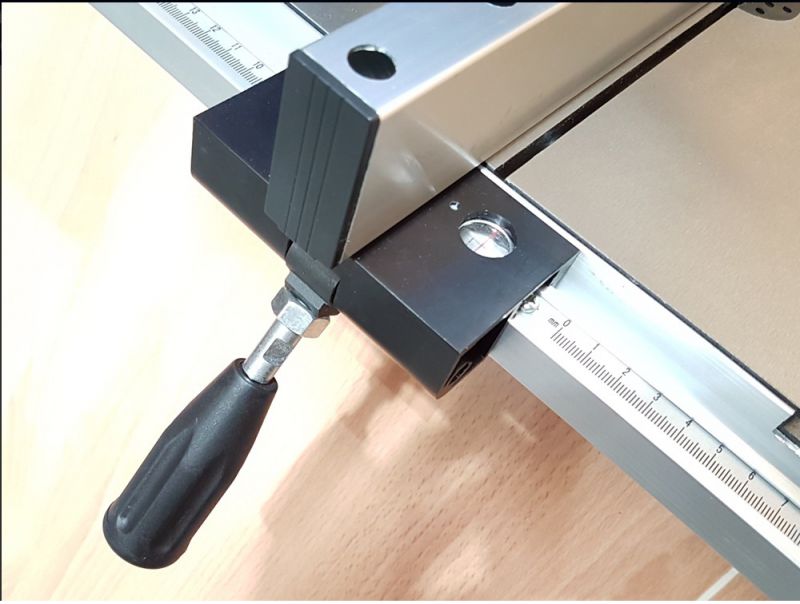

• The quick release fence locks securely onto the front rail of the table to provide a rigid straight guide for ripping. A magnifier is included to aid accurate setting of the fence along the scale, marked out in mm. The fence can be fitted on either side of the blade.

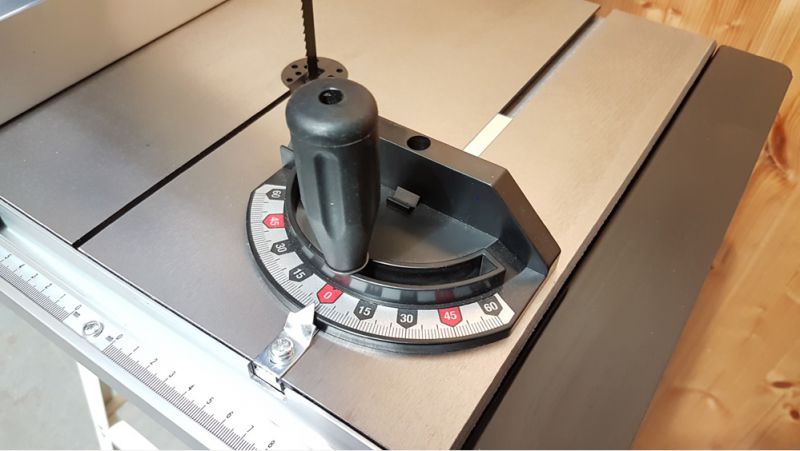

• The sliding mitre fence is adjustable 60 degrees in each direction, for crosscutting wood at any angle.

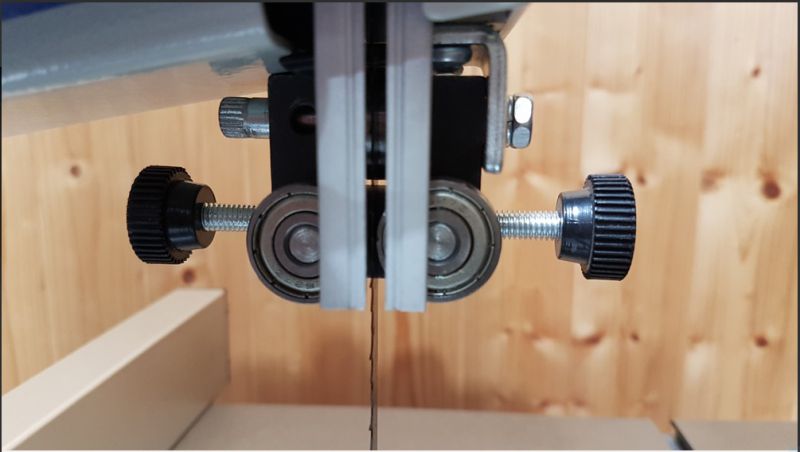

• The rack & pinion blade guard design is adjusted by using a dial on the side of the machine. The blade is then guided by two side facing bearings and a rear thrust bearing attached to the end of the guard. The side bearings are mounted on an eccentric cam, for faster setting, and can be adjusted without using any tools. The same guide set up is repeated below the table giving maximum blade control and keeping the blade true when a straight cut is required.
• A safety feature, only usually found on larger bandsaws, is the addition of  micro switches on the doors to prevent accidental startup when changing a blade.
• Replacing a worn blade, or switching to the blade you keep for curved work, has been sped up by adding a quick release tension lever. The lever removes all tension from the blade to quickly remove it from the bandsaw. When the new blade is in position, return the lever to add the tension.
• Finished off with a durable powder coated paint finish.
• Supplied with rip fence, mitre fence adjustable 60 degrees each way, 3/8" high quality British made blade, NVR switch, 100mm diameter extraction outlet, push stick, 2.0m power cable and UK 3 pin plug.
• Fixing holes are provided for mounting onto a bench or onto the optional floor stand.
• This Bandsaw is fitted with a High Quality, British manufactured blade with precision ground teeth for incredible cutting results.

• Maximum cutting depth: 100mm (4")
• Throat width: 245mm (10")
• Max. cutting width with fence: 130mm Left / 130mm Right
• Table size: 340mm x 335mm
• Table size with extension: 490mm x 335mm

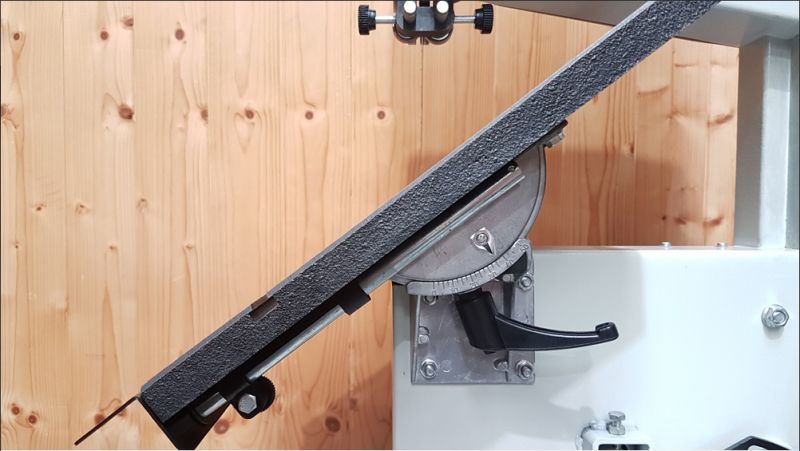

• Table tilt: 0-45 degrees
• Mitre Guide T-Slot: 9mm / 14mm
• Cutting speed: 730m/min
• Motor (induction): 370w (1/2hp)
• Blade length: 1712mm (67.4")
• Blade widths: 6-13mm (1/4" - 1/2")
• Bench to Work Table: 380mm
• Floor to Work Table (With Stand): 1050mm
• Dust Collection Port: 100mm (4") Dia.
• Dimensions (WxDxH):  570mm x 500mm x 840mm
• Dimensions (WxDxH) (With Stand): 670mm x 550mm x 1500mm
• Weight: 30Kg
• Rating: Hobby
• Warranty: 5 Years

Charnwood BS410 Operators Manual

Charnwood Machinery 5 Year Guarantee
