Charnwood Bench Grinder Stand Charnwood BGS

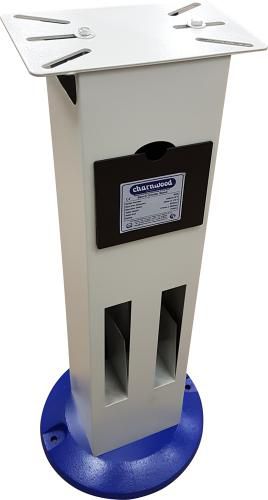

Charnwood Universal Bench Grinder Stand
Charnwood BGS

• Universal floor stand for use with any bench grinder.

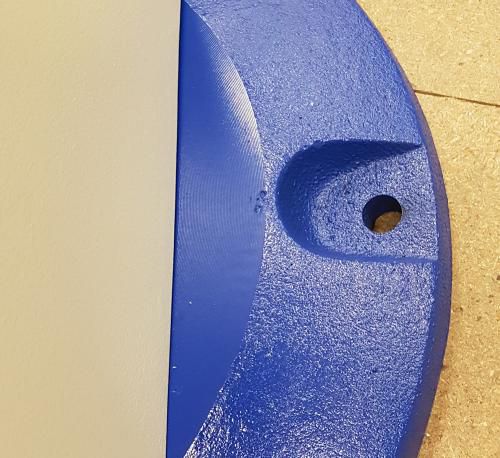

• The cast iron base adds the weight to give good stability. There are holes for anyone wishing to secure it to the the workshop floor.
• The body is a rigid steel frame with a welded mounting plate which does not flex or vibrate during use.

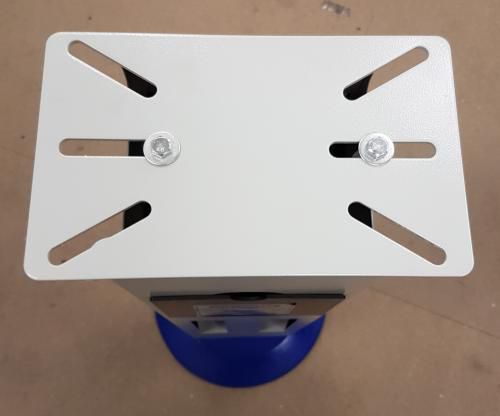

• The universal mounting plate has slots to accommodate any bench grinder with up to 200mm (8") sized wheels.

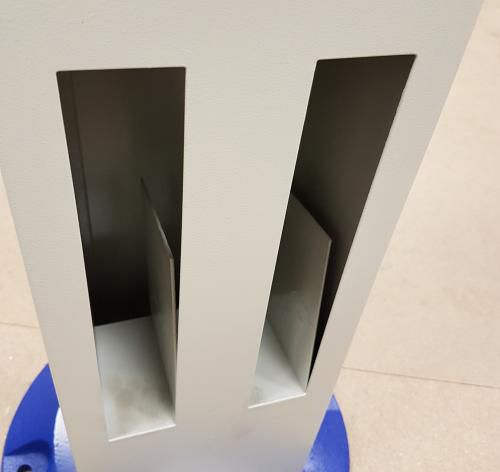

• There are 2 storage slots to hold spare grinding discs of any size up to 200mm diameter and 40mm width.

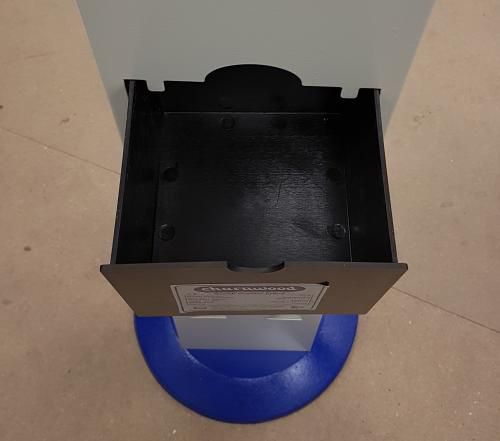

• There is also a draw compartment for keeping accessories handy.

• Mounting Plate Height: 835mm
• Mounting Plate Dimensions: 170mm x 280mm
• Disc Storage Slots: 200mm x 40mm
• Draw Storage Compartment: 140mm x 140mm x 120mm
• Fixing Bolts (x2): M8 x 60mm
• Overall Dimensions (WxDxH): 840mm x 340mm x 340mm
• Shipping Dimensions (WxDxH): 800mm x 370mm x 250mm
• Weight: 14kg
• Assembly Time Required: 5 Minutes
• Rating: Hobby
