Charnwood DC50 High Filtration Extractor 50 litre with CK100 Dust Separator Cyclone Kit

X
Product Code: CH/CK100-PK1
Brand: Charnwood
Stock Available
Delivery typically 3-4 days
£238.98 Inc. VAT
£199.15 Exc. VAT
✗ COLLECTION
✓ DELIVERY
Qty
Charnwood

Charnwood DC50 High Filtration Extractor 50 litre with CK100 Dust Separator Cyclone Kit




Charnwood DC50 High Filtration Vacuum Extractor - 50 litre capacity - steel drum



Key Features

High filtration vacuum extractor.

  • Filters Down to 0.5 Microns
  • 50 Litre Collection Capacity
  • No Loss of Power with Small Diameter Hoses
  • 2 Metre Length of Flexible Hose Included

This fine filter vacuum extractor is ideal for small workshops using bench top machinery and powertools. Because these machines generate a high speed of air through the hose they are more suitable for reducing down to a smaller diameter hose for use with portable power tools. At the heart of the extractor is a 2 stage filter which cleans particles out of the air down to 0.5 micron. Fine enough for every machine in the workshop including sanders. The compact size and light weight, makes it particularly appealing for smaller workshops, where space is a premium, and it can be kept underneath a bench. A quick action clamp releases the lid of the drum to empty it out.

These extractors are a great alternative to a standard household vacuum because they do not get blocked and have a larger capacity, so need emptying less often.

Items included

  • 2m hose
  • 2 hose clamps
  • 3 replacement filter bags
  • 2m cable and plug



Specification

  • Motor (carbon brush): 1100w (1.5hp), 240v
  • Flowrate: 3.05m3/min (53 Litres per second)
  • Inlet Diameter: 100mm
  • Drum Capacity: 50 Litres
  • Dimensions (WxDxH): 390mm x 450mm x 670mm
  • Weight: 10kg
  • Rating: Hobby
  • Warranty: 5 Years



Charnwood DC50 Owners Manual

Charnwood Machinery 5 Year Guarantee

Buyers Guide to Dust Extraction




Charnwood CK100 Dust Separator Cyclone Kit For 100mm (4") Hose



Key Features

  • A cyclonic dust separator works in conjunction with a regular dust extractor. It is connected into the hose line to intercept a significant amount of the dust, depositing it  into the container. Up to 95% of all dust, shavings and chips will be collected in the separator and never reach the extractor.
  • As the majority of the dust is no longer going into the body of the dust extractor, the life span of the filter is massively extended. Airflow and extractor performance remain more constant as the filters do not get clogged.
  • Can be used with vacuum type drum extractors or high volume bag type extractors.
  • Simply connect a 100mm hose to the inlet port. Fit the elbow underneath, and angle it, so that air flows around the rim of the container depositing heavier particles into the bottom. Then connect a hose from the outlet port to the dust extractor for the now cleaner air to continue its journey.
  • The container is made from translucent plastic so it is easy to see the fill level inside. It is recommended the container be emptied when 2/3rds full, when around 65 litres has been collected.
  • The container is fitted with carrying handles to take it out for emptying.



Items included

  • 90 Litre container
  • Lid with 2 x 100mm diameter ports
  • Elbow for creating the cyclone
  • Carrying handles



Specification

  • Inlet Diameter: 100mm
  • Outlet Diameter: 100mm
  • Container Size: 90 Litres
  • Collection Capacity: 65 Litres
  • Material: Rigid Plastic
  • Dimensions (WxDxH): 560mm x 560mm x 750mm
  • Weight: 3.75kg



Items Included
Click For Bigger Image

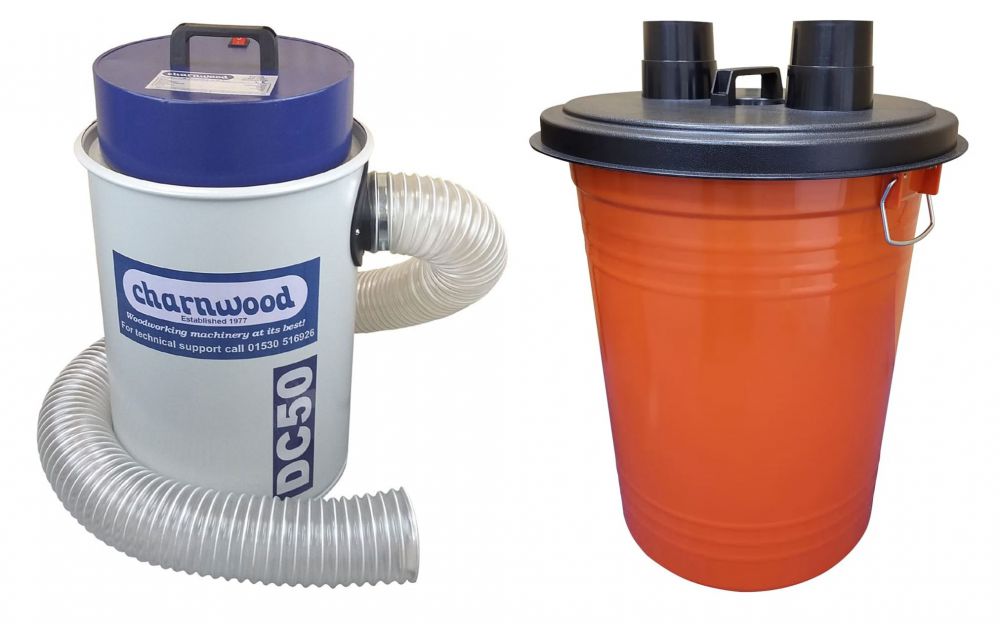

1 X Charnwood DC50 High Filtration Vacuum Extractor 50 litre
Click For Bigger Image
1 X Charnwood CK100 Dust Separator Cyclone Kit For 100mm (4") Hose
