Charnwood DH250 Dust Collection Hood 250mm x 110mm

Charnwood DH250
Dust Collection Hood
250mm x 110mm

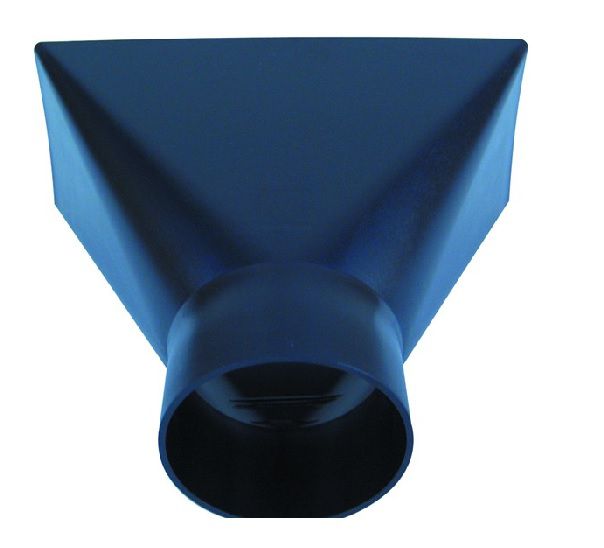

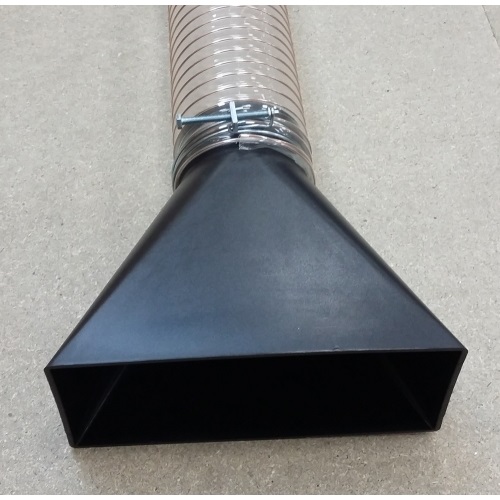

•  A plastic dust collector hood with a wide mouth at one end and a round hose connection at the other. Suitable for use with standard 100mm diameter flexible hose. You may need a hose clamp to secure the hose to the round end (100HC).
• Ideal for Collecting dust and chips from small lathes, sanding discs or any other machinery which did not originally come supplied with a purpose made dust collection point.

• Mouth Opening - 250mm x 110mm
• Hose Connection - 100mm Diameter
• Depth - 230mm

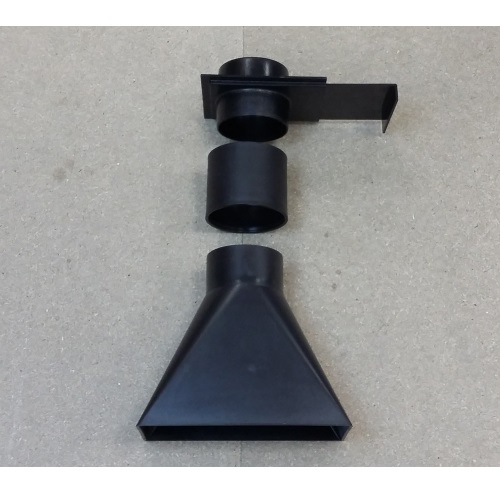

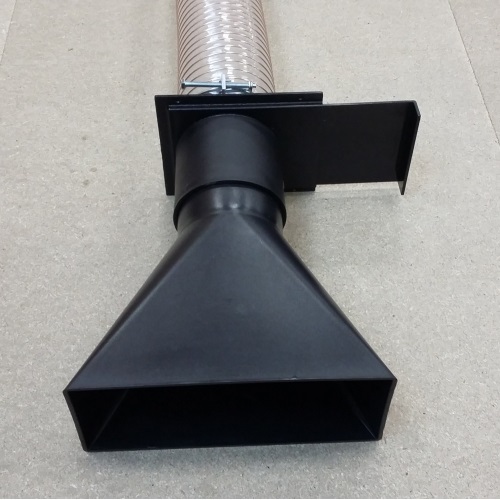

•  If being used with a multiple branch hose system, a shut off gate (100G) can be attached using a sleeve (100SL) to join the two parts together. A hose can be attached to the other end of the gate and secured with a clamp (100HC).
