Charnwood Hose reducer 100mm to 45mm - made up of 100/58RC & 63/45RC
Product Code: CH/100/45RC-PK
Brand: Charnwood
In Stock
£10.15 Inc. VAT
£8.46 Exc. VAT
✓ COLLECTION
✓ DELIVERY

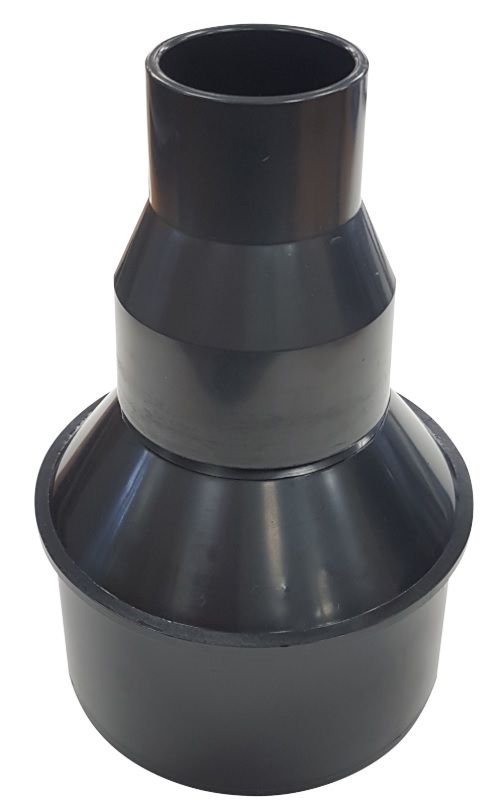

Charnwood 100/45RC
Hose Reducer 100mm to 45mm (4" to 1.75")
Key Features
- Used for stepping down or up in hose size and used for connecting a hose line to machinery with a different sized outlet.
- It is recommended that 100mm diameter hose is always used from the extractor to the dust producing machine and then the reducing cone fitted.Using any length of hose of less than 100mm diameter will reduce the performance of the extractor and should therefore be kept to a minimum.
- A 100mm hose clamp should be used to fasten the hose the reducer
Specification
100/45RC
- Large End - outside diameter of 100mm - inside diameter of 93mm
- Small End - outside diameter of 45mm - inside diameter of 39mm
- Overall length: 170mm
Please note: This item (100/45RC) is made up from products: 100/58RC and 63/45RC
- 100/58RC Spec: Large End - outside diameter of 100mm - inside diameter of 93mm. Small End - outside diameter of 58mm - inside diameter of 50mm
- 63/45RC Spec: Large End - outside diameter 63mm - inside diameter of 58mm. Small End - outside diameter 45mm - inside diameter of 39mm
View similar items
Items Included
;)
1 X Charnwood 100/58RC Reducing Cone 100mm to 58mm
;)
1 X Charnwood Reducing Cone 63mm to 45mm (2-1/2" to 1-3/4")
