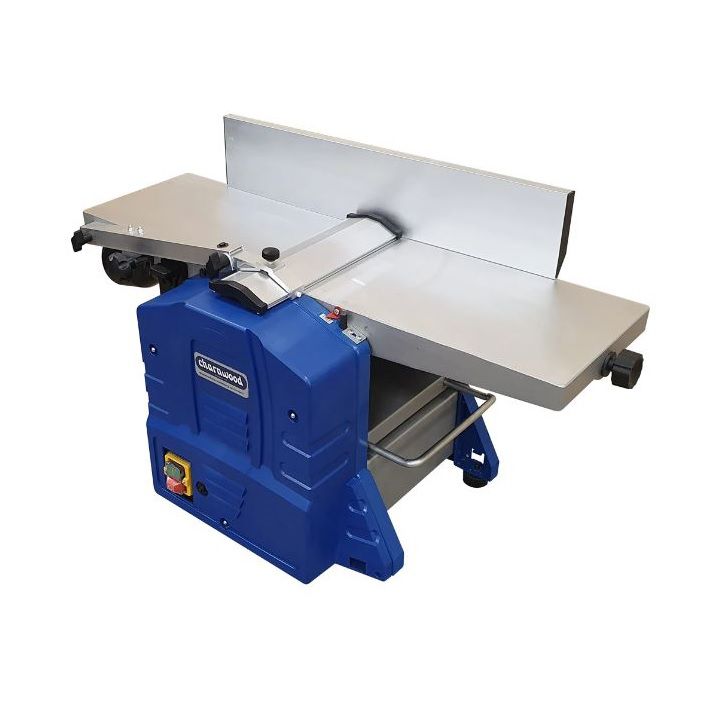

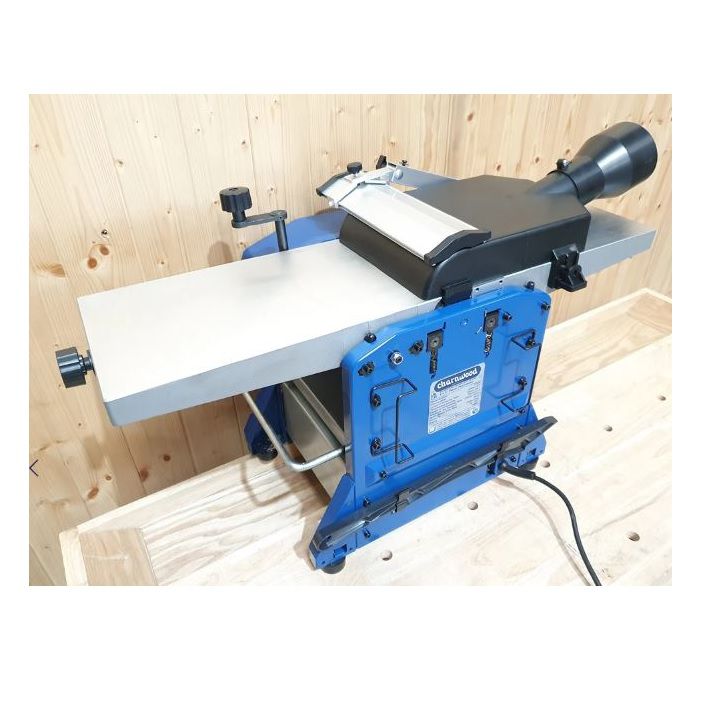

Charnwood PT200 8" x 5" Bench Top Planer Thicknesser

Charnwood PT200 8" x 5" Bench Top Planer Thicknesser

A compact and portable planer thicknesser.

• 8” Planing Capacity
• 8” x 5” Thicknessing Capacity
• Aluminium Tables To Minimise Weight
• Extruded Guide Fence For Accuracy
• Tilting Fence With Twin Guides
• Rubber Coated Feed Rollers

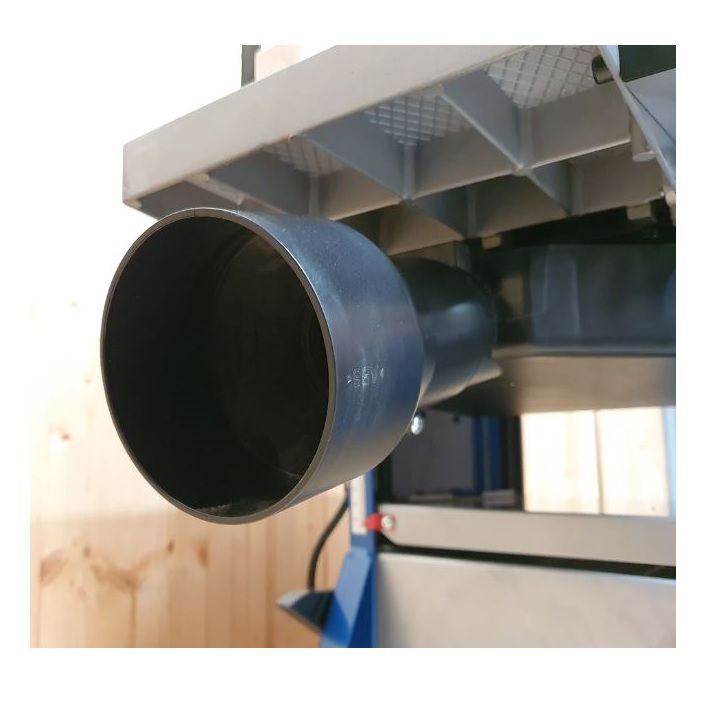

• 100mm Diameter Chip Extraction Outlet

• Light enough to move off the bench when not in use and yet tough enough to produce 8″ x 5″ timber into flat and dimensioned pieces.

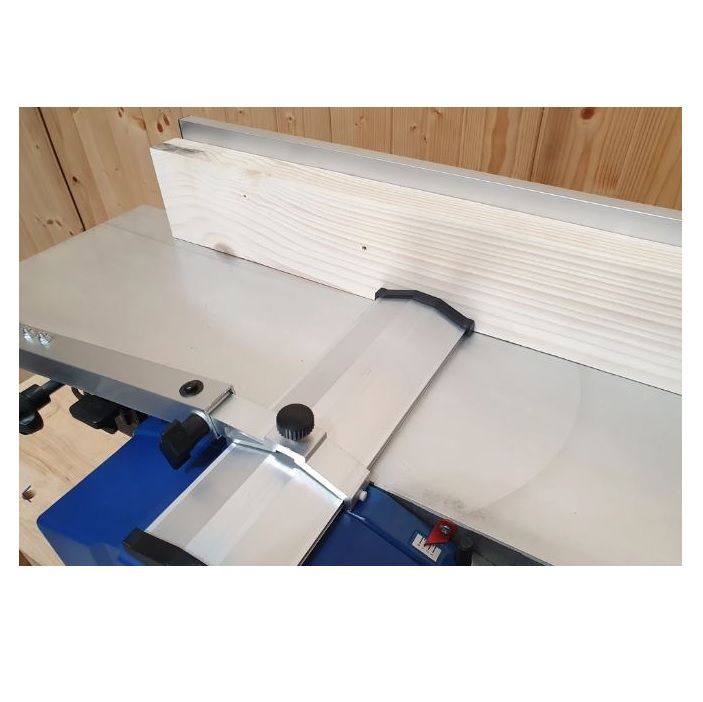

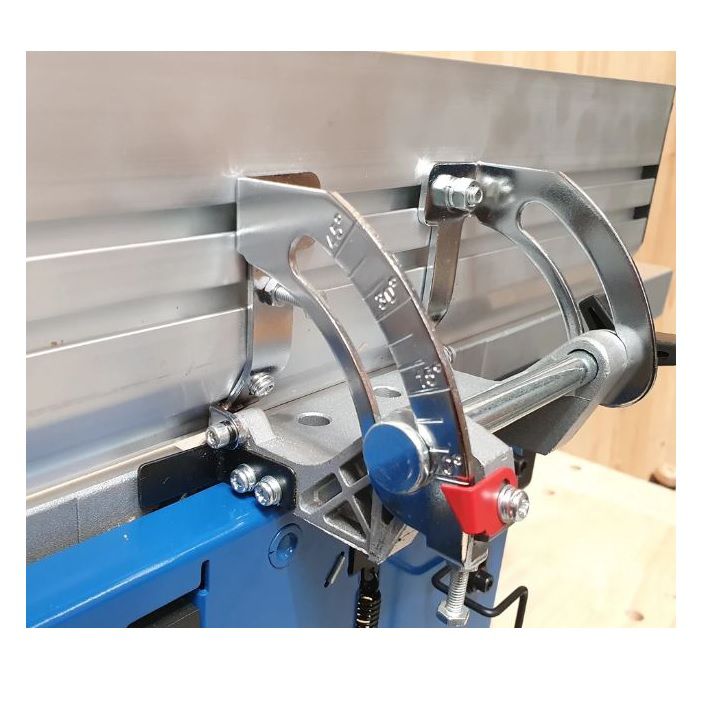

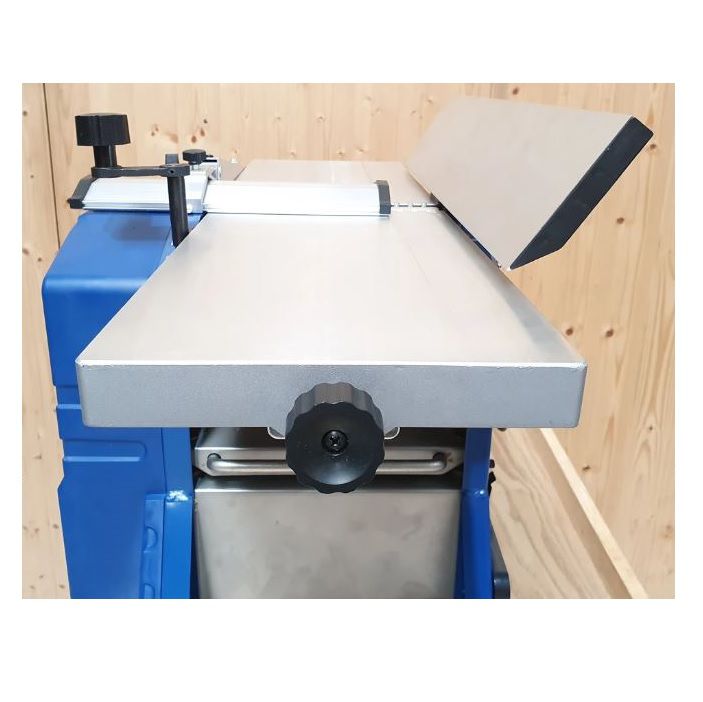

• The planing beds are precision ground aluminium and the guide fence is a rigid aluminium extrusion which can be tilted and locked at any angle up to 45 degrees when required.

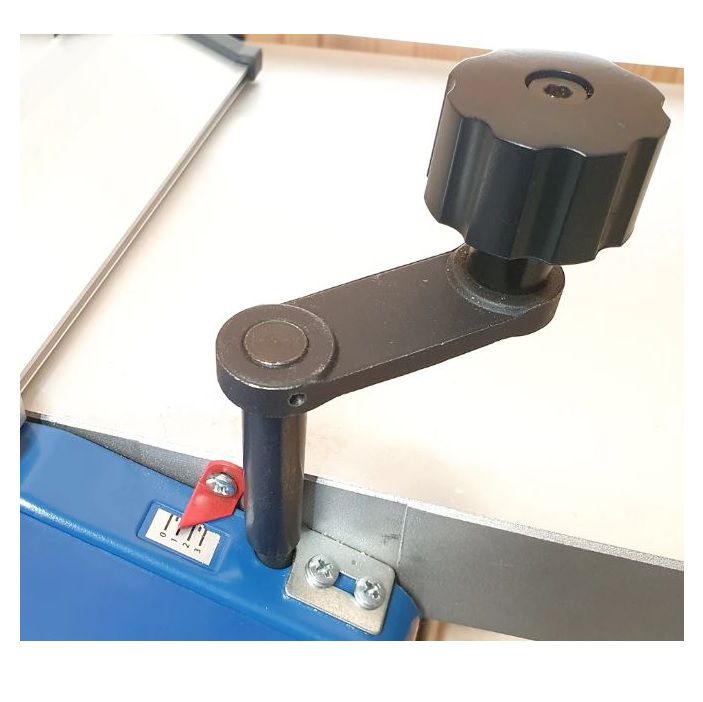

• The steel thicknessing bed has an extension arm on the outfeed side and is supported in each corner by chain driven adjusting screws. Once the height is set, rubber coated feed rollers pass the timber through the high speed cutter block leaving a beautiful finish with no roller marks.

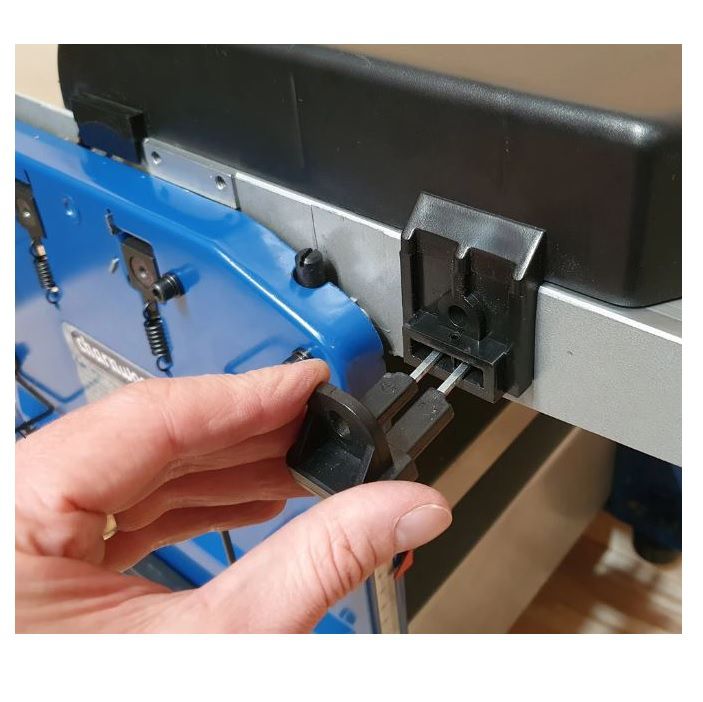

• The redesigned dust hood now has a quick action clamp to allow faster removal when changing between Planing and thicknessing modes. The hood fits onto the thicknessing bed during planing operations and is then moved over the top when thicknessing. As a safety feature a location sensor detects that the dust hood has been correctly fitted before allowing the motor to run.

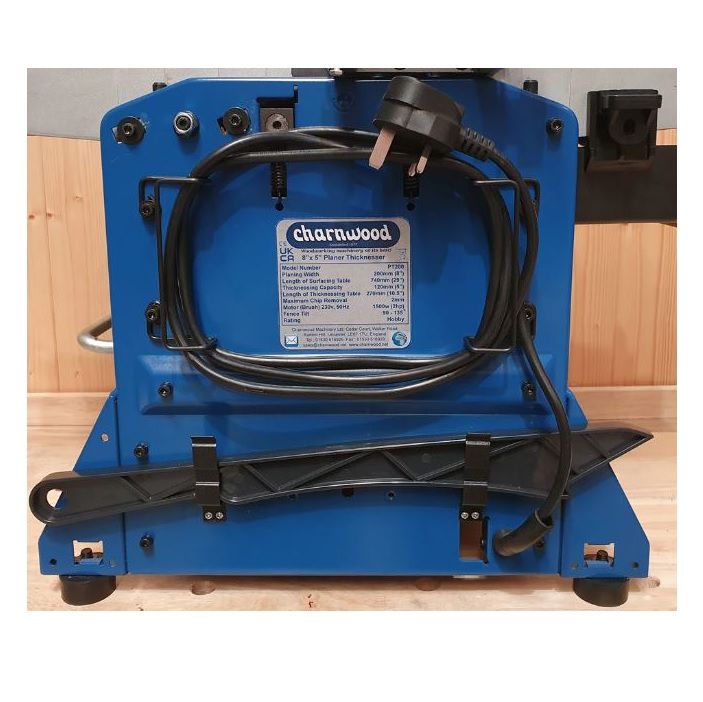

• Supplied with re-grindable knives, 100mm diameter dust extraction outlet, blade setting tool, 4 adjustable rubber feet, 2.0m power cable and UK 3 pin plug.

• Surfacing width: 204mm (8″)
• Length of surfacing tables: 740mm
• Maximum planing depth of cut: 2mm
• Fence tilt: 90 – 45
• Table height: 360mm
• Thicknessing capacity: 5 – 125mm (1/4″ – 5″)
• Length of thicknessing table: 270mm
• Feed speed: 8m/min
• Maximum depth of cut: 2mm
• Cutterblock speed: 9000rpm
• Number of knives: 2
• Motor (carbon brush): 1500w (2hp), 240v
• Dimensions (WxDxH): 830mm x 400mm x 460mm
• Weight: 28kg
• Assembly Time Required: 5 Minutes
• Rating: Hobby
• Product Guarantee: 5 Years

Please note: It is essential to use dust extraction with a planer thicknesser. The extractor removes all the dust and chips which will otherwise build up, causing a blockage and eventually damage to the machine. Using an extractor also increases the life of the knives.
