Charnwood PT250 10" x 5" Woodworking Planer Thicknesser

Charnwood PT250 10" x 5" Bench Top Planer Thicknesser

Large capacity, bench top planer thicknesser.

• 10'' Planing Capacity
• 10'' x 5'' Thicknessing Capacity
• Aluminium Tables To Minimise Weight
• Extruded Guide Fence For Accuracy
• Tilting Fence With Twin Guides
• Rubber Coated Feed Rollers

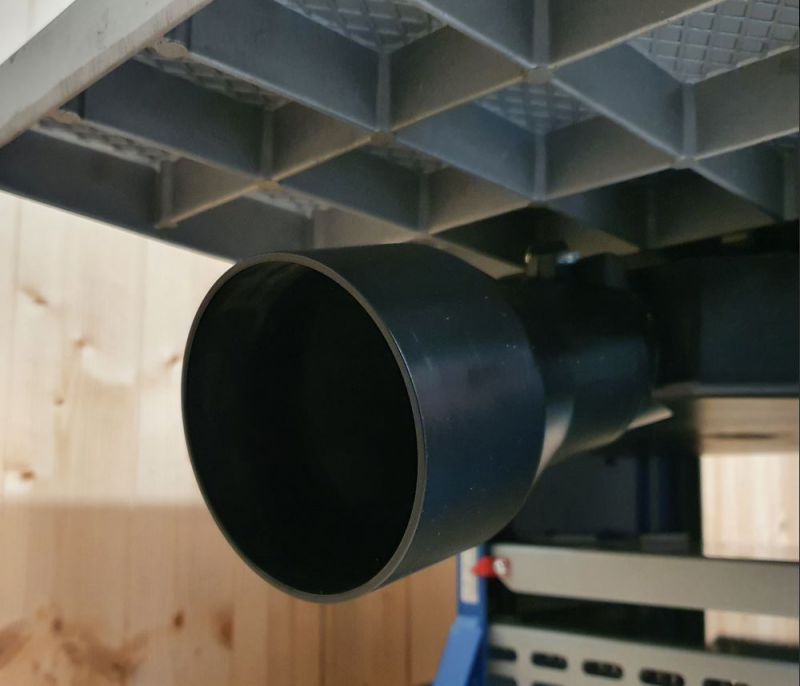

• 100mm Diameter Chip Extraction Outlet

The largest in our bench top machines, still light enough to move off the bench when not in use. The capacity is increased to allow 10" x 5" timber to be accurately dimensioned.

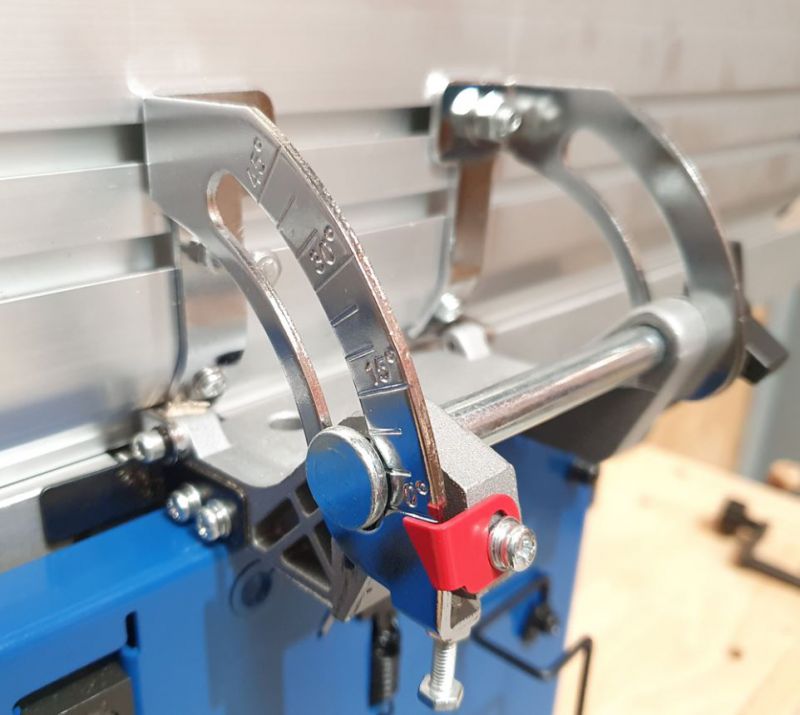

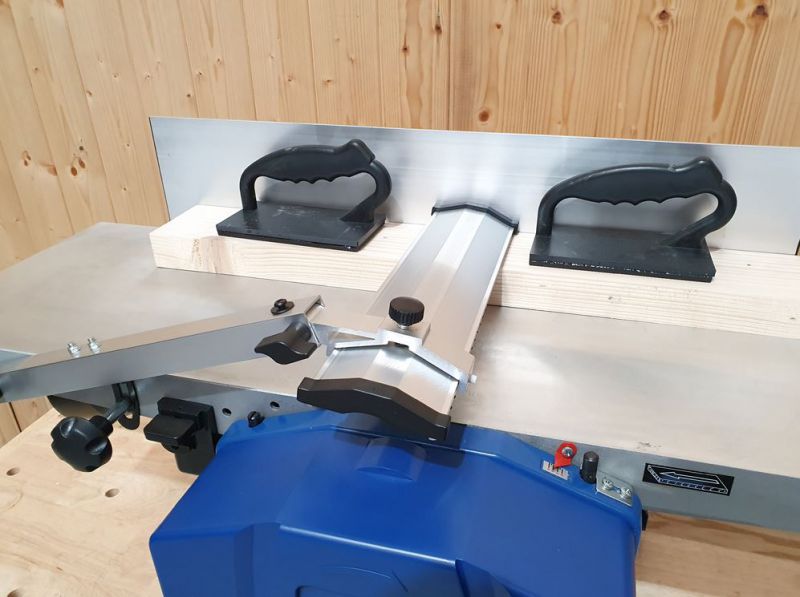

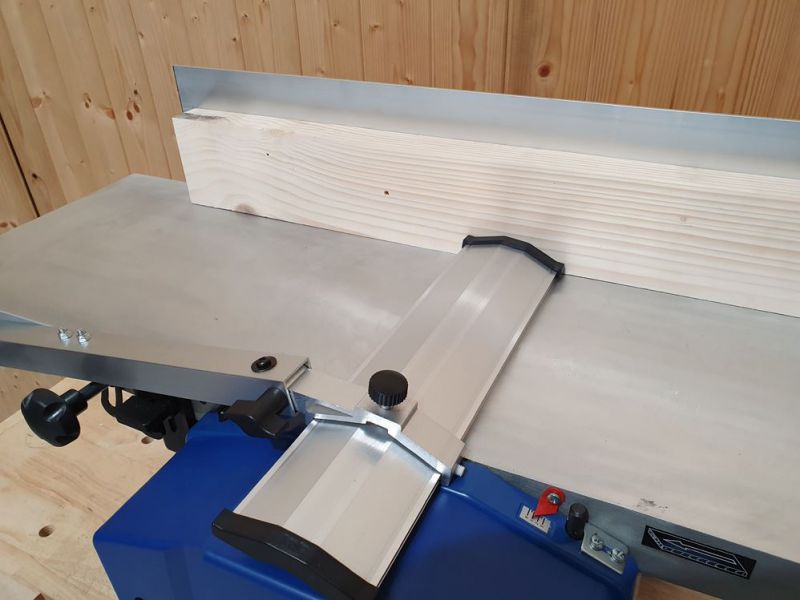

The planing beds are precision ground aluminium and the guide fence is a rigid aluminium extrusion which can be tilted and locked at any angle up to 45 degrees when required.

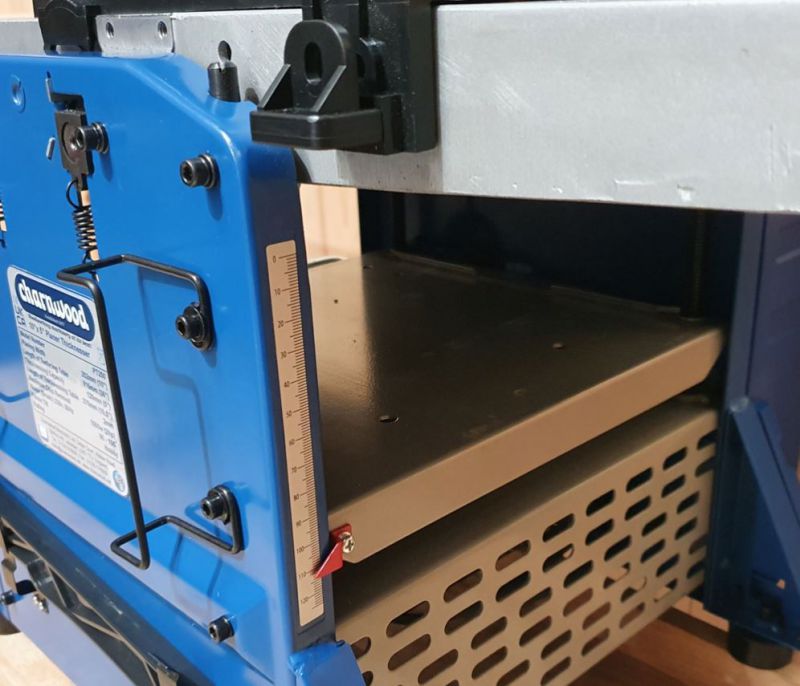

The steel thicknessing bed has an extension arm on the outfeed side and is supported in each corner by chain driven adjusting screws. Once the height is set, rubber coated feed rollers pass the timber through the high speed cutter block leaving a beautiful finish with no roller marks.

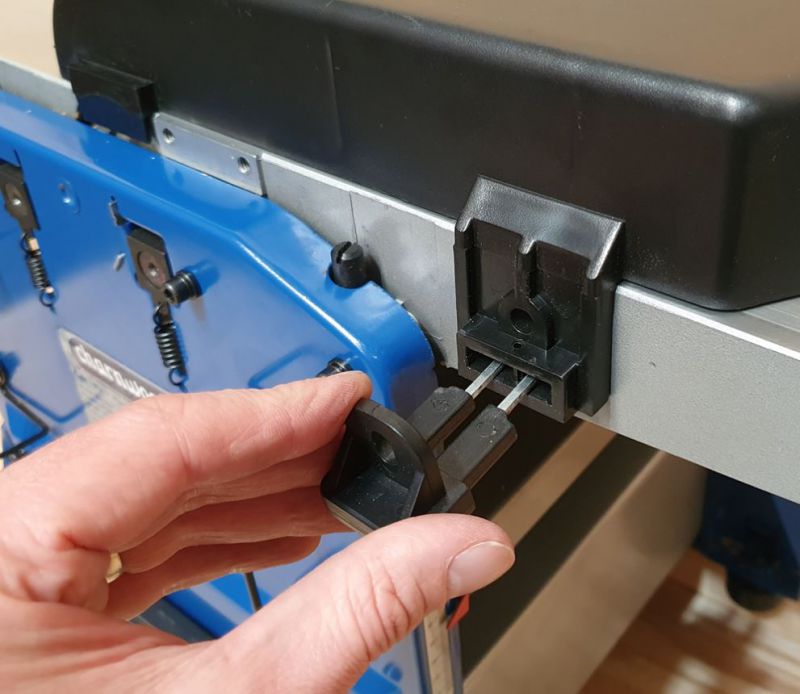

The redesigned dust hood now has a quick action clamp to allow faster removal when changing between Planing and thicknessing modes. The hood fits onto the thicknessing bed during planing operations and is then moved over the top when thicknessing. As a safety feature a location sensor detects that the dust hood has been correctly fitted before allowing the motor to run.

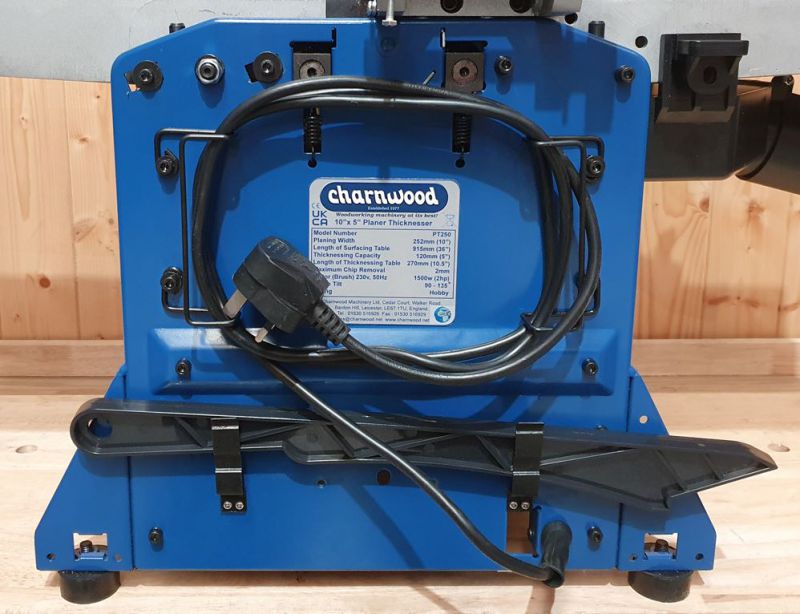

Supplied with re-grindable knives, 100mm diameter dust extraction outlet, blade setting tool, 4 adjustable rubber feet, 2.0m power cable and UK 3 pin plug.
