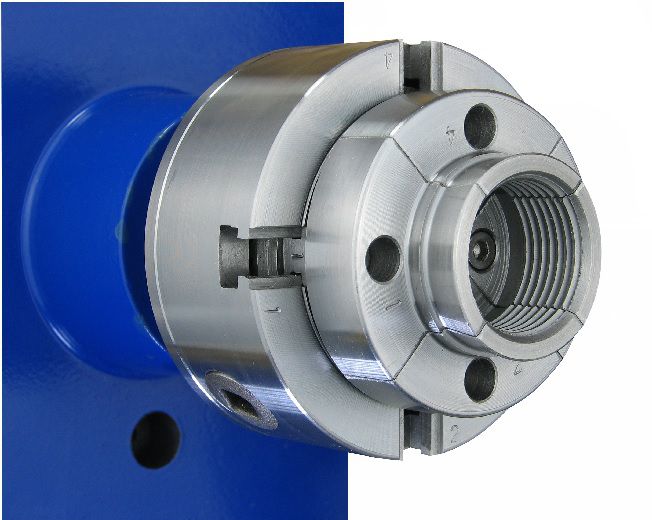

Charnwood V3DJ Dovetail Jaws, serrated inside for Viper3 Chuck

X
Product Code: CH/V3DJ
Brand: Charnwood
In Stock
£30.00 Inc. VAT
£25.00 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Charnwood

Charnwood V3DJ
Dovetail Jaws, serrated inside
for VIPER3 Chuck



Key Features

Dovetail Jaws, serrated inside for Viper3 Chuck.

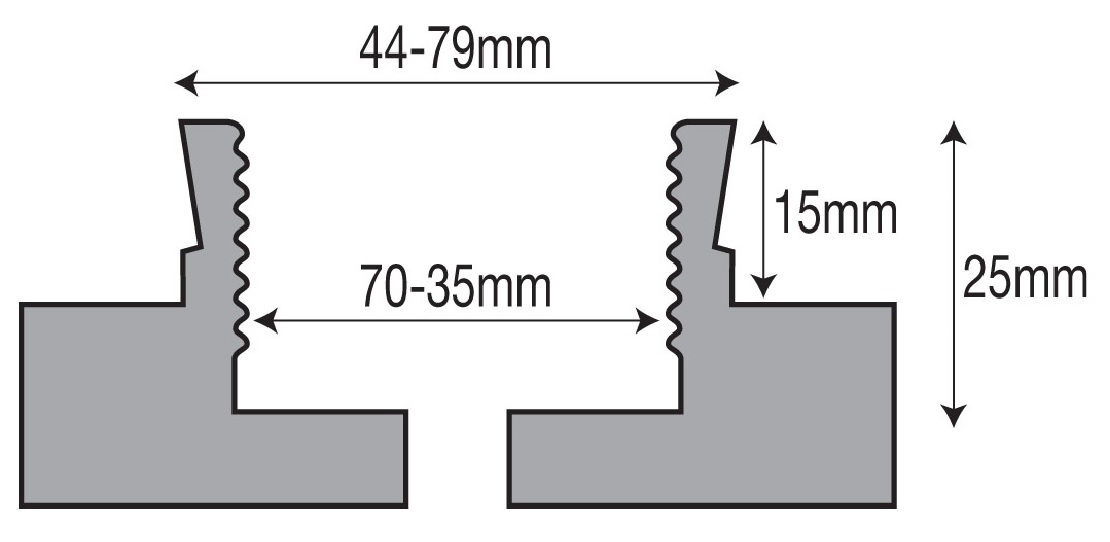

Set of 4 optional jaws for our Viper3 scroll chuck. These jaws are deeper than the standard dovetails jaws supplied with new chucks. The inside is parallel and serrated for maximum grip. The inside of the jaw is 25mm deep. The outside is dovetailed and projects 16mm from the base plate.

  • Expands from 44mm to 79mm
  • Contracts from 70mm to 35mm

 Jaws for the Viper3 are compatible with the following chucks:

  • Charnwood W836 (Requires V3JS jaw screw set)
  • Vicmark VM100  (Requires V3JS jaw screw set)
  • Record RP4000
  • Rutlands Dakota XT700
  • Warco 9405
  • Craft Supplies CS400
  • Fox FX4000
  • Versachuck (Requires VM100 Jaw Carriers)
  • Does not fit Axminster
