Charnwood VIPER 2 70mm Diameter 4 Jaw Geared Scoll Chuck

X
Product Code: CH/VIPER2
Brand: Charnwood
In Stock
£89.00 Inc. VAT
£74.17 Exc. VAT
✓ COLLECTION
✓ DELIVERY
Qty
Charnwood

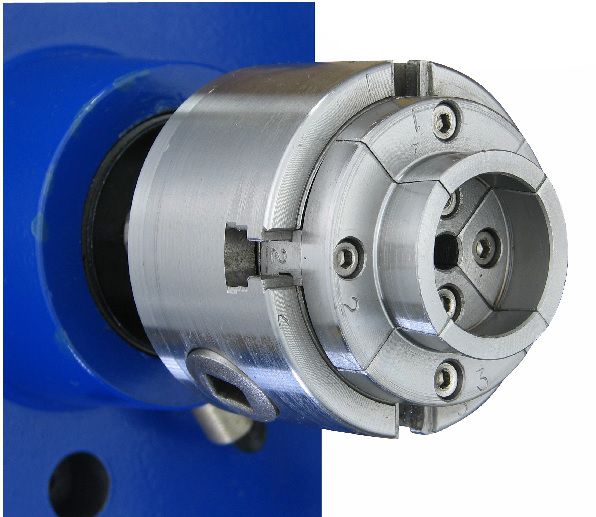

Charnwood 70mm Diameter 4 Jaw Geared Scroll Chuck - (Ref: VIPER 2)



Key Features

  • 4 Jaw scroll chuck for woodlathes.
  • Part of the new Viper range from Charnwood. A compact scroll chuck, with the jaws adjusted by a geared mechanism for simple one handed operation. Self centring, high precision design. Ideal for Mini and Midi sized lathes.
  • The standard dovetail jaws can grip the workpiece both internally or externally depending on the style and shape of the piece to be turned.
  • The chuck fits directly onto lathes with headstock thread size 1'' x 8tpi
  • We also include a wood screw which clamps into the centre of the chuck for the initial mounting of bowl blanks.
  • Supplied with dovetail jaws, wood screw, T-bar for locking the jaws, T-handled hex key for swapping the jaws
  • We have an extensive range of optional jaws and accessories available for the Viper range of chucks.



Specification

  • Chuck Body Diameter: 70mm
  • Depth of Thread: 30mm
  • Jaw Movement: 24mm
  • Standard Dovetail Jaw Expands from: 38mm to 62mm
  • Standard Dovetail Jaw Contracts from: 54mm to 30mm
  • Direct Thread: 1'' x 8tpi
  • Weight: 1050g
  • Rating: Hobby
  • Warranty: 1 Year



Viper2 Chuck on test Woodturning April 2013.pdf



Measuring A Lathe Headstock Thread Size.pdf
