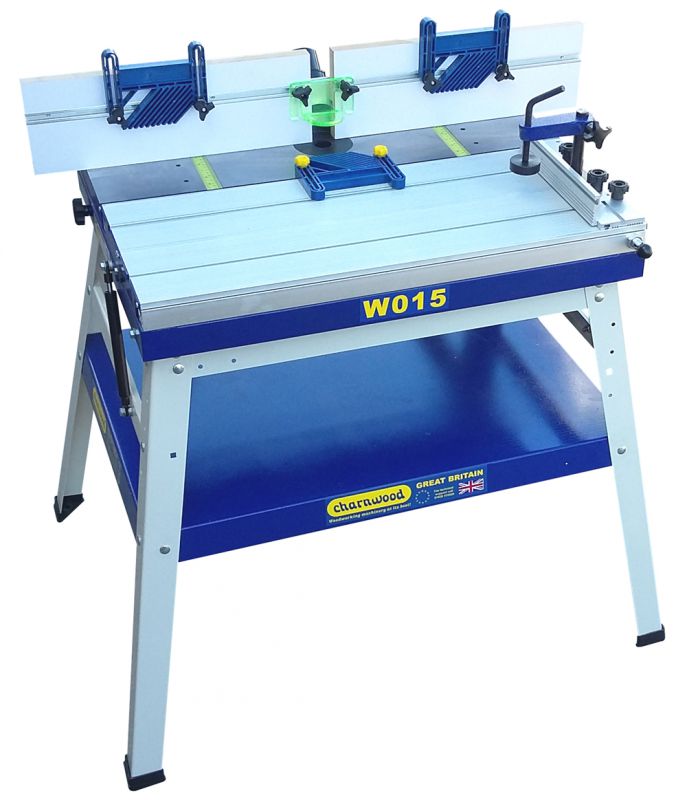

Charnwood W015 Cast Iron Floorstanding Router Table with Sliding Table

Charnwood W015 Floorstanding Cast Iron Router Table with Sliding Table with New Upgraded Fences

• A cast iron router table with a sliding bed. Ideal for cabinet makers and anyone cutting tenons.
• Cast Iron Main Table
• Cast Iron Cutter Hood
• Hinged Top with Gas Filled Springs
• Independently Adjustable Fences
• 2 Hold Down Spring Clamps
• Large Aluminium Sliding Table
• Fence and Work Clamp for Tenons
• 60mm Diameter Extraction Outlet
• Floorstand With Shelf Included
• Optional NVR Switch Available

• Our router table will convert any hand held router into a stationary machine offering several advantages such as quicker set up times, improved safety and the ability to use much larger diameter cutters than is possible when working freehand.

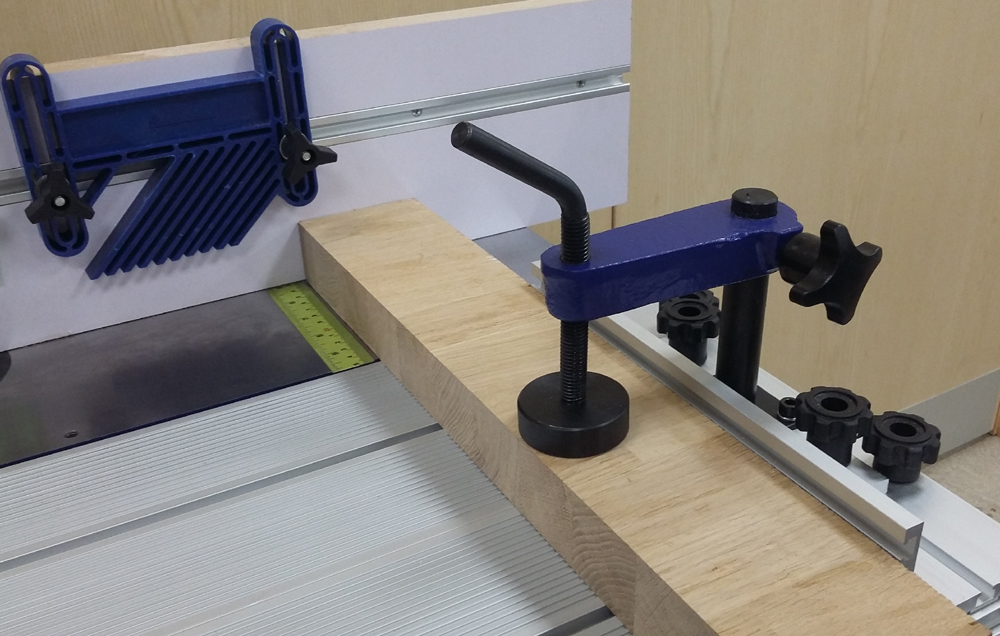

• W015 is a heavy duty routing table with a strong steel floorstand and a table top of cast iron. The front half of the table is actually a sliding bed and is fitted with a fence and work clamp to make short work of end grain cutting and tenons. This cross cut fence can be fitted anywhere along the length of the table and can also be locked in at 45 degrees.

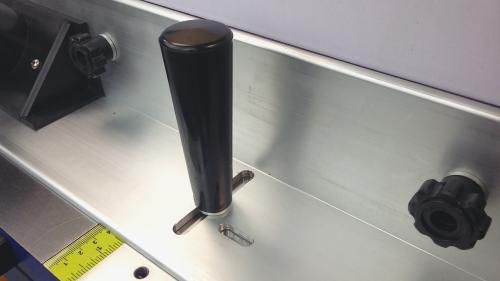

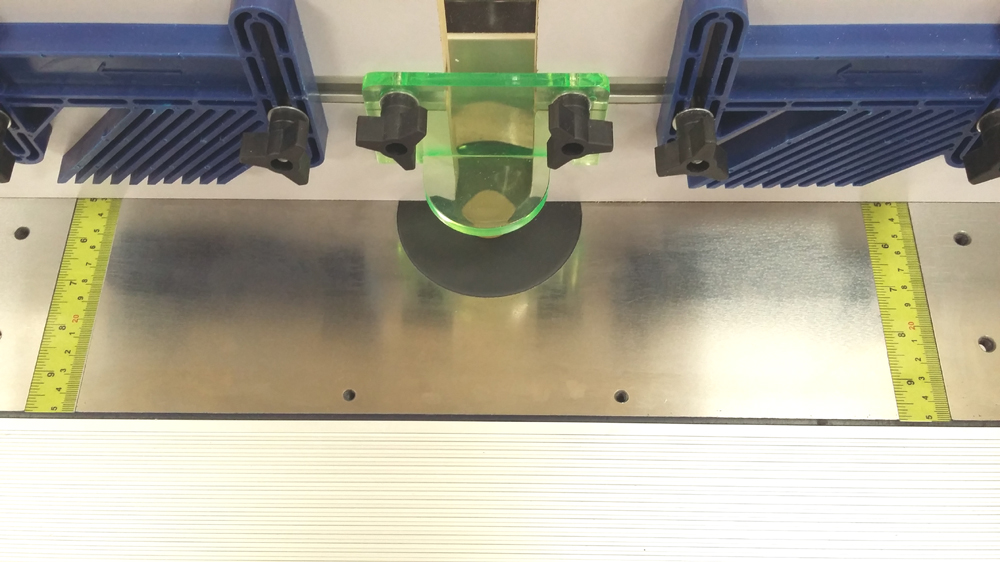

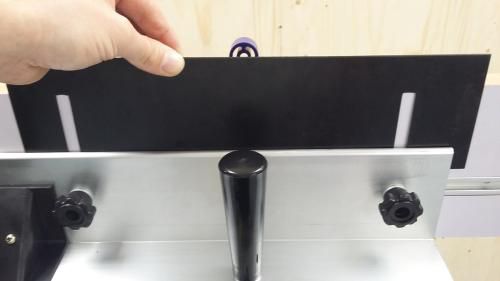

• The main fence used for edge moulding and trenching operations has independently adjustable infeed and outfeed fences, ideal for planing edges, and two spring clamps to hold the work piece down against the table.

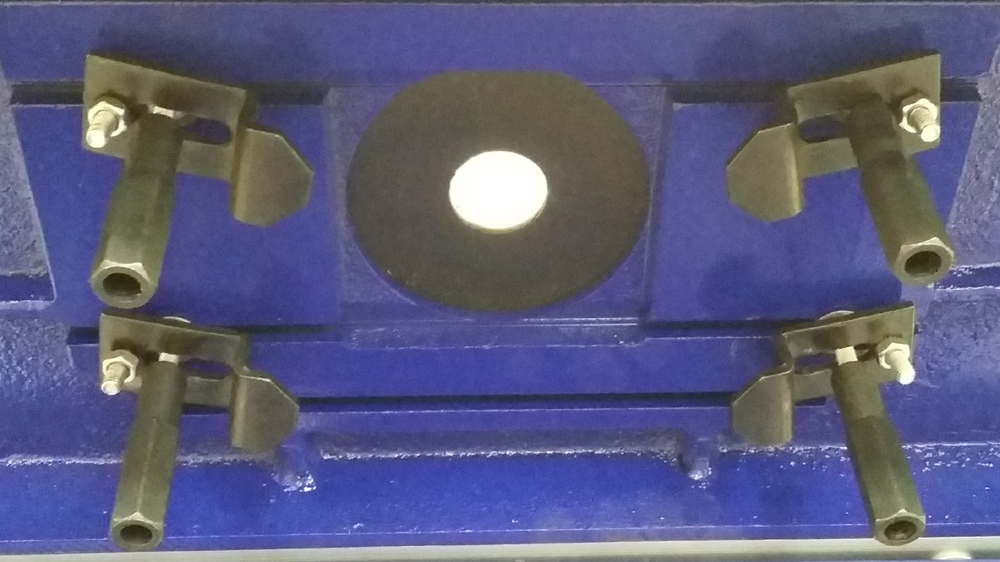

• Any sized router can be mounted to this table using the clamping set provided. To give easy access to the router when changing settings the whole table top is hinged and supported by gas filled struts to counteract the heavy weight of the cast iron top.

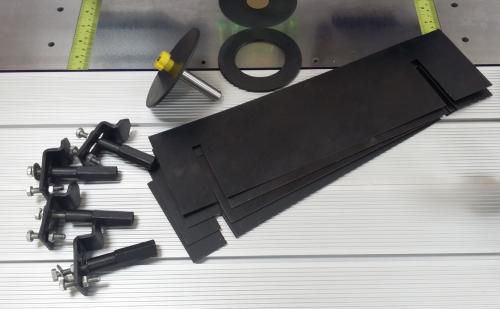

• Supplied with 2 removable insert rings, router mounting clamps and dust extraction outlet 60mm diameter.
• Use our reducer 100/67RC to convert for 100mm diameter hose extraction systems.

• Table size 790 x 570 mm
• Table height 860mm
• Table aperture 30, 60 & 100mm
• Sliding carriage stroke 900mm
• Dimensions (WxDxH) 1020 x 720 x 1110 mm
• Weight 61kg
• Rating Trade
• Warranty 1 Year

Charnwood W015 Owners Manual
