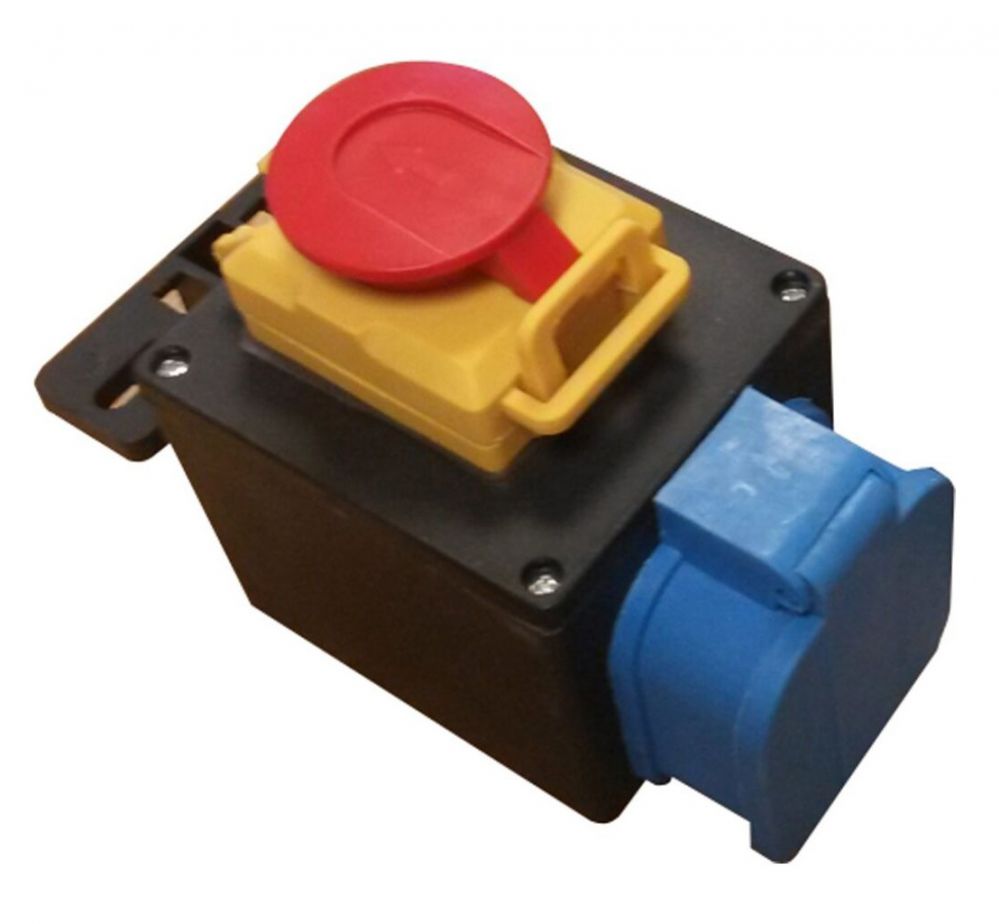

Charnwood W026 NVR Safety Switch 240v

Charnwood W026
NVR Safety Switch 240v

No Volt Release (NVR) Switch for Routers.

• For Any Power tools Up To 2200 watts
• Integral 3 Pin Socket

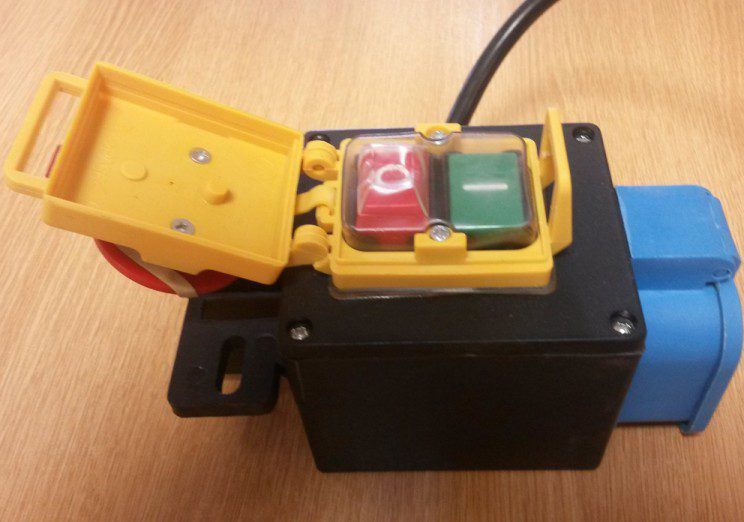

• Separate Start and Stop Buttons
• Cover Acts As Emergency Stop

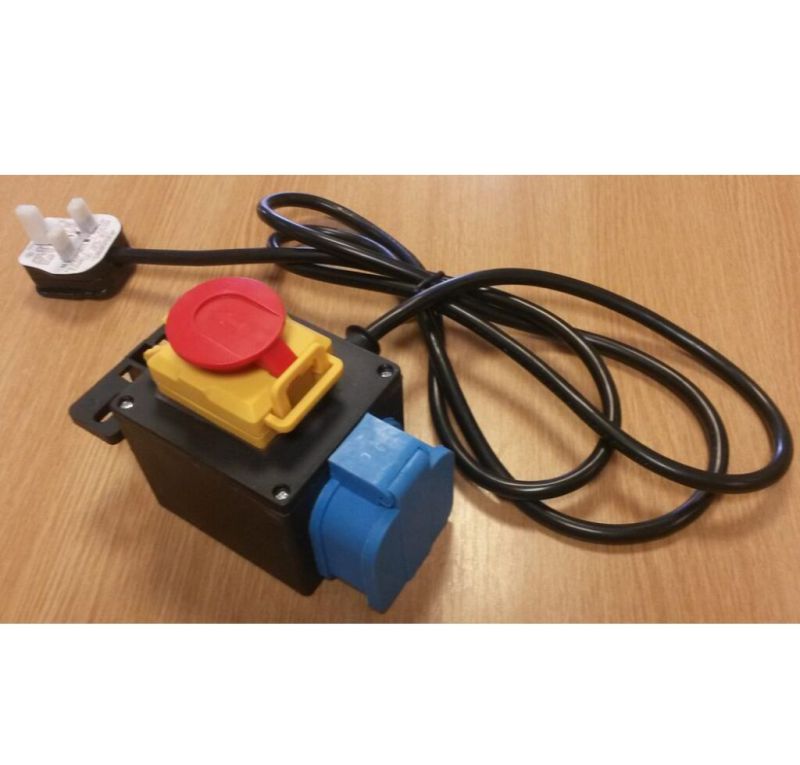

• Supplied With 2m Cable and Plug
• For use with 220v-240v power tools only

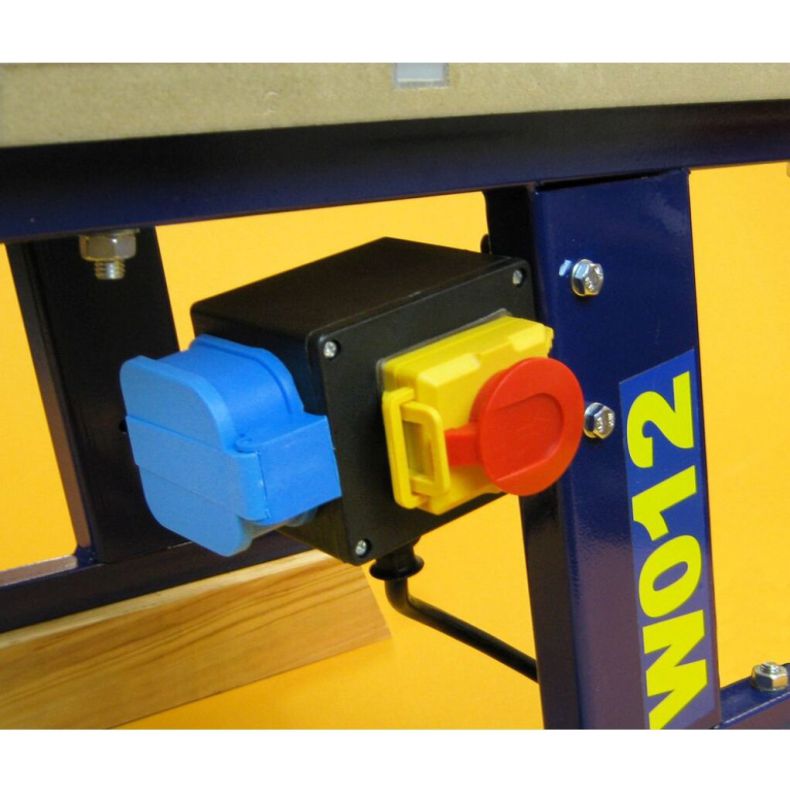

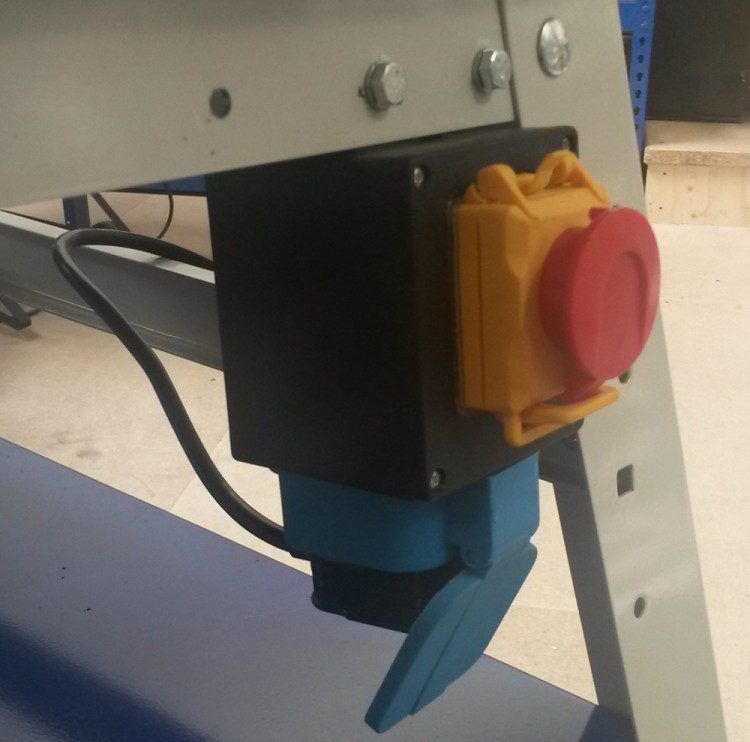

The switch can be mounted to the steel frame of any router table or mounted in any convenient location avoiding the user having to reach under the table to turn the router on and off. The switch also provides a handy emergency stop button.

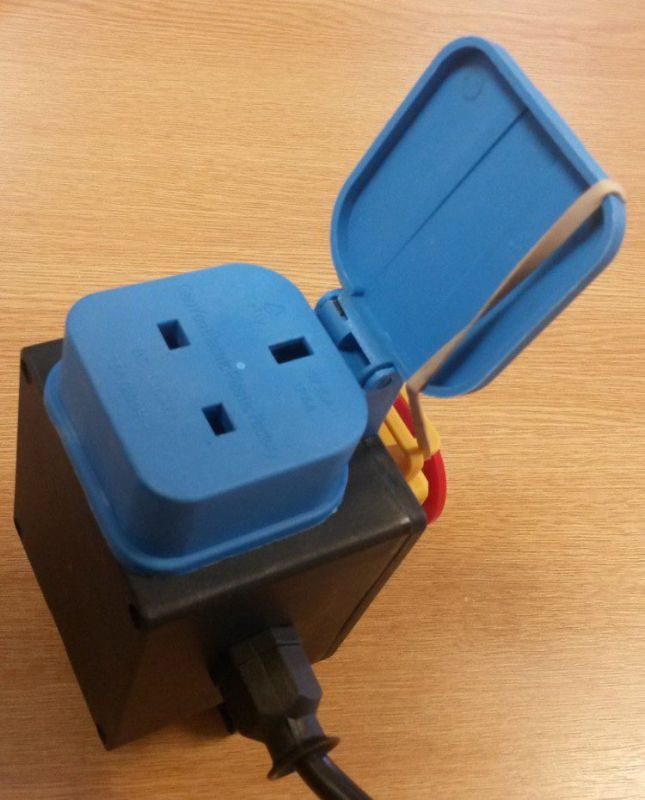

There is an integral socket built into the underside of the casing. Simply plug your powertool into the socket and connect the plug to your electric supply. 2 Slotted fixing points allow the switch to be used with any router table, commercial or home made.

In order to use a router with an NVR switch you need to be able to lock the router switch in the 'On' position, for hands free operation. If your router has a trigger type switch which cannot be locked on you will need to contact the manufacturer or their distributor to obtain a fastening clip. Some routers can also be rewired to bypass the router switch and use this NVR switch instead.

Mounting bracket hole centres 45mm - 70mm
Fixing bolts supplied M6 x 45mm

Supplied with integral socket, separate start and stop buttons, 2m cable, plug and fixing bolts. For use with any power tools up to 2200watts, 240volts.
