Charnwood W040P2 Spindle Moulder with Sliding Carriage Package Deal 2

Charnwood W040P2 Spindle Moulder
with Sliding Carriage
Package Deal 2

Charnwood W040P now discontinued please see
Charnwood W030 or Sturmer Holzstar TF 170 E

Spindle Moulder Package Deal 2

Package Includes;

• W040 Spindle Moulder with Sliding carriage
• W030RC 1/2'' Routing Collet
• CB9830 Cutterblock with Straight Knives & 6 Profiles
• W030SD Sanding Drum Kit with 3 Sizes of Drum
• W522: Universal Wheel Base

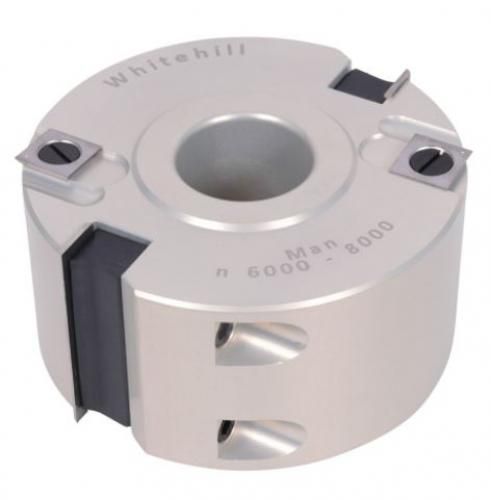

• Whitehill 100mm Rebate Block

Cast Iron Spindle Moulder.

• Cast Iron Main Table
• OFFER - FREE 1/2'' Routing Collet
• 100mm Diameter Extraction Outlet
• Independently Adjustable Fences
• Maximum Tooling Diameter 160mm
• 4 Speeds; Softwood, Hardwood, Routing, Sanding
• Cast Iron Cutter Hood
• Sliding Beam

This new addition to our range has all the features of our best selling W030 model plus the addition of a sliding beam carriage, ideal for panel work, cutting end grain or making tenons.

The beam runs on a set of bearings giving a smooth and precise action and can be locked in position when not required. The 24'' capacity is perfect for cabinet doors. The mitre fence can be adjusted from 90 degrees to 30 degrees each way and is also fitted with a work clamp and flip over stop.

A precision ground cast iron table, a steel base cabinet and a 2hp induction motor are the basic ingredients which make up this fantastic spindle moulder. The height of the spindle, which is a standard 30mm diameter, is controlled by the large hand wheel which can then be locked in position.

A simple belt change selects the correct spindle speed for the tooling. This 4 speed version provides even more versatility;

• 1500rpm - Drum Sanding *
• 8500rpm - Routing **
• 6500rpm - Moulding Softwoods
• 4500rpm - Moulding Hardwoods

The cutter hood is cast iron with a dust outlet at the centre providing efficient extraction for this machine which can produce a high volume of dust and chips. An extractor with 1000 cubic metres an hour airflow is recommended to cope.

The two aluminium fences are adjustable to set the width of the opening, to suit the cutters being used. The outfeed fence can also be stepped out, controlled by a fine pitch thread adjuster, for operations where the complete edge of the workpiece is being removed. Fully adjustable guards are connected to a hinged plate which can quickly be lifted to allow clear access to change the tooling.

SPECIAL OFFER: Order now and receive a FREE Routing adaptor to allow 1/2" shank router bits to be used. Worth £49!!

Supplied with sliding beam, Set of spindle shims, 4 adjustable height rubber feet, cable and plug.
Runs off any standard 13amp, 240v electric supply.

• Motor (induction): 1500w, 240v
• Main table size: 600mm x 400mm
• Sliding table size: 1000mm x 200mm
• Sliding carriage stroke: 620mm
• Spindle diameter: 30mm
• Speeds: 4 (1500, 4500, 6500 & 8500rpm)
• Vertical stroke: 110mm
• Table aperture diameter: 160mm
• Table aperture depth: 50mm
• Table height: 870mm
• Fence size: 125mm x 700mm
• Dust extraction outlet: 100mm
• Dimensions (WxDxH): 1000mm x 1070mm x 1280mm
• Weight: 103kg
• Rating: Light trade
• Warranty: 5 Years
