Charnwood W325P Morticer and Chisel Package

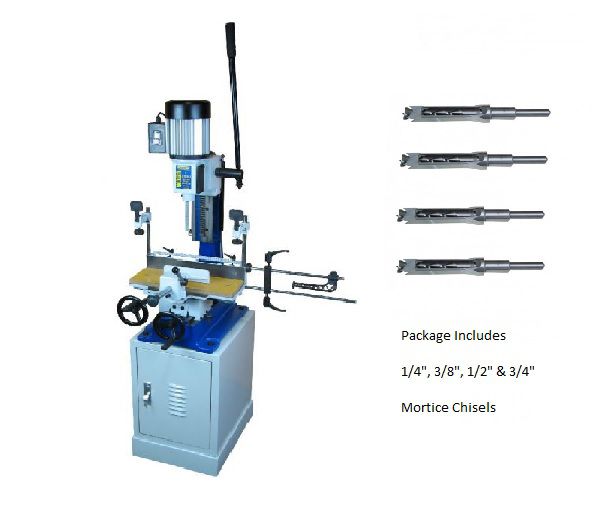

Charnwood W325 - Floorstanding Morticer & Chisels Package Deal

PACKAGE DEAL - SAVE £43!! When compared to buying seperate items.

• W325 Floorstanding Morticer
• MCT2 1/4" Professional Quality Chisel & Bit
• MCT3 3/8" Professional Quality Chisel & Bit
• MCT4 1/2" Professional Quality Chisel & Bit
• MCT6 3/4" Professional Quality Chisel & Bit

• Table Moves Through X and Y Axis
• Cast Iron Body, For Strength & Stability
• Cast Iron Table, Hard Wearing For A Long Life
• Cast Iron Work Clamp with Quick Action Lock
• Welded Cabinet Stand with Storage Space
• Plunging Head Controlled by Gas Filled Spring
• Quite Induction Motor Delivers The Power

• This floorstanding hollow chisel mortiser has a huge timber capacity of 8" x 6" and can cut to the full depth of the chisel.
• Extensive use of cast iron gives the entire machine strength and solidity allowing larger sizes of chisels to be used without flexing. The down feed handle can be adjusted so that a comfortable starting position can always be found. When cutting mortices in smaller timber the head can be lowered, so that the starting point of the chisel is just above the timber, which speeds up cutting.
• When working with this machine the timber is held in place by a front clamp with a quick action lock and two further cam lock clamps which hold the timber firmly down against the table, to prevent lifting when raising the chisel.
• There are then two separate controls for moving the table. Firstly the operator winds the table forwards or back until the chisel is aligned with the back edge of the mortice. The second hand wheel is turned to move the table left or right until the chisel is positioned at one end of the mortice.
• The motor has been specially produced to run at a lower rpm than standard motors, which gives a better cut, with less chance of burning.
• The cabinet style base, included as standard, has a lockable hinged door on the front with a large storage area inside, perfect for keeping your chisels and service tools safe. 4 adjustable rubber feet ensure that levelling on an uneven floor is simple.
• For anyone involved in component production, and wanting to make a series of identical cuts there are stops fitted to the table travel to set the width of the mortice.
• Supplied with, chuck key, mortice depth stop, handle return stop, Left and Right table stops, Length stop, 3/4" chisel bush, adjustable rubber feet, cable and plug.

• From Chisel Bush to Table: 315mm (12″)
• Maximum timber height with a 1/2″ Chisel: 205mm (8″)
• Maximum clamping width: 145mm (6”)
• Chisel capacity: 1/4″ to 3/4″ (8mm to 18mm)
• Vertical Chisel Stroke (1 Stroke / Total Travel): 110mm (6″) / 230mm (9”)
• Accepts chisel shank size: 3/4″
• Optional chisel shank size (Requires optional bush): 13/16″
• Table travel (left to right): 165mm (6.5”)
• Table travel (front to back): 150mm (6”)
• From Back Fence to Chisel Centre: 0mm to 150mm
• Length Stop Capacity: 730mm (29″)
• Motor (induction): 750w (1hp), 240v
• Motor Speed: 1400rpm
• Dimensions (WxDxH): 820mm x 720mm x 1800mm
• Weight: 120kg
• Assembly Time Required: 20 Minutes (Needs 2 People)
• Rating: Trade
• Product Warranty: 5 Years
