Charnwood W510-B-PAIR of Roller Stands with Bearing Kits

Charnwood W510-B-PAIR
Pair of Roller Stands with Bearing Kits

A choice of two types of roller support stand, indispensable when handling large materials single handed.

• Chrome Finished Roller
• Bearings for Smooth Running
• Height Adjustable
• Folding Rear Leg
• Welded Feet For Extra Stability

W510 has a single chromed roller and is ideal for applications where a straight feed is required, such as a planer or thicknesser. The feet of the stand are welded to give extra strength and rigidity. The rear leg is hinged and folds flat so that the roller stand can be hung on the wall when not in use. A lever handle sets the height of the stand to suit your application.

The bearing line has 8 independent bearings which allow travel in any direction and are excellent for large sheet handling applications. The bearing head simply fits onto the same stand giving a dual function stand which can be changed from roller to bearing in a matter of seconds with no tools required. As a useful additional feature the bearing line can be flipped over so that the stand can be used as a length stop. To purchase this, search under W510B.

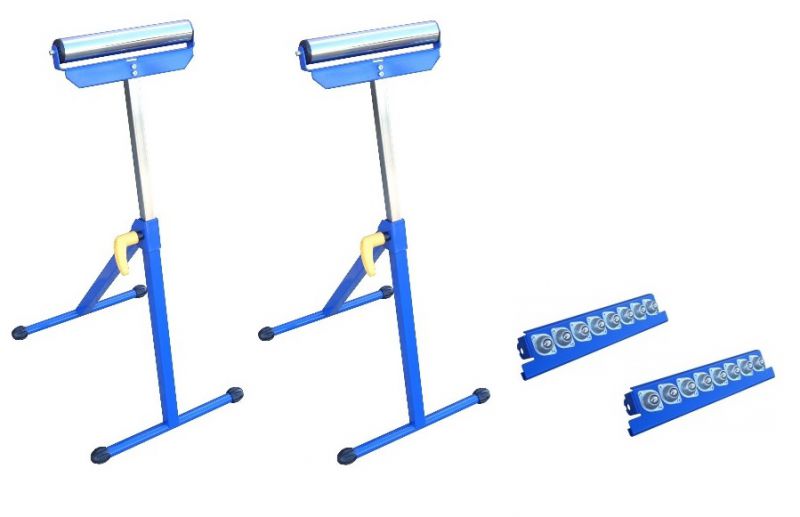

2 rollers and 2 bearing lines supplied.

• Roller Width; 280mm
• Height Adjustable; From 660mm to 1100mm
• Column size: 25mm
• Dimensions (WxDxH): 430mm x 500mm x 1100mm
• Weight: 4kg
• Rating: Hobby
• Warranty: 1 Year

Charnwood W510 Assembly and Fitting Instructions
