Charnwood W619 8'' Cast Iron Table Saw

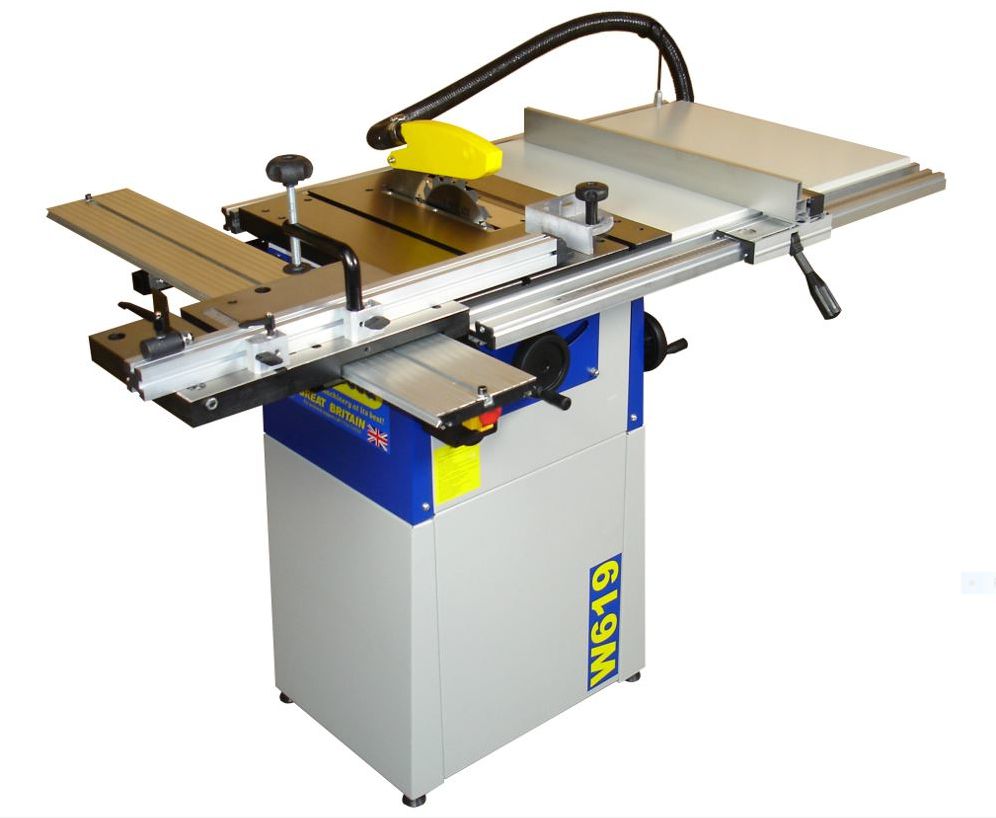

Charnwood W619 - 8" Table Saw with Cast Iron Sliding Table

• A compact, high quality table saw with a quiet induction motor. The main table is precision ground cast iron, and has 2 fabricated side extension tables to give impressive cutting capacities, perfect for the smaller workshop. The induction motor turns the blade via a drive belt which reduces noise and increases accuracy. Blade height and blade angle are controlled using 2 separate handwheels. The sliding carriage, included as standard, is a joy to use with a cast iron bed travelling on 4 bearing guides. Any angle can be set on the long support fence. A screw clamp holds the work secure and a flip over length stop is fitted for repeat cuts.
• Supplied with 20 tooth TCT sawblade, sliding carriage, extension tables, floorstand, adjustable feet, cable and plug.
• For storage the right hand extension and sliding carriage can be removed in less than a minute and rebuilt in 2 1/2 minutes with no setting up required.

• Quiet Induction Motor
• Cast Iron Precision Ground Table
• Extension Tables as Standard Equipment
• Sliding Carriage as Standard Equipment
• Separate Handwheels for Blade Adjustment
• 100mm Dust Extraction Outlet
• Solid Floorstand Base Included
• Optional Wheel Kit (not included)

• Main Table Size: 530mm x 1000mm
• Maximum Ripping Width Using Fence: 720mm
• Crosscut Table Size: 400mm x 180mm
• Maximum Crosscutting Width: 600mm (700mm Using Reverse Table)
• Blade Tilt: 90 - 45 degrees
• Cutting Depth at 90 degrees: 60mm
• Cutting Depth at 45 degrees: 40mm
• Blade Diameter: 200mm
• Blade Bore: 30mm
• Work Table Height: 910mm
• Motor (induction): 1100w (1.5hp) / 240v
• No-Load Blade Speed: 4700 rpm
• Dimensions: (WxDxH) 1460mm x 1010mm x 1030mm
• Weight: 90Kg
• Rating: Light Trade
• Warranty: 5 Years
