Charnwood W691CF - 2HP Single Bag Dust Extractor with Cartridge Filter Package

Charnwood W691CF - 2HP Single Bag Dust Extractor with Cartridge Filter Package

A larger extractor aimed at workshops where extraction is not continuously needed.

• Powerful & Quiet 2hp Induction Motor
• 2 Inlets For Simultaneous Extraction
• Quick Action Metal Bag Straps
• Transparent Heavy Duty Collection Bag
• 1 micron Cartridge Filter
• 16amp, 240v Electric Supply Required

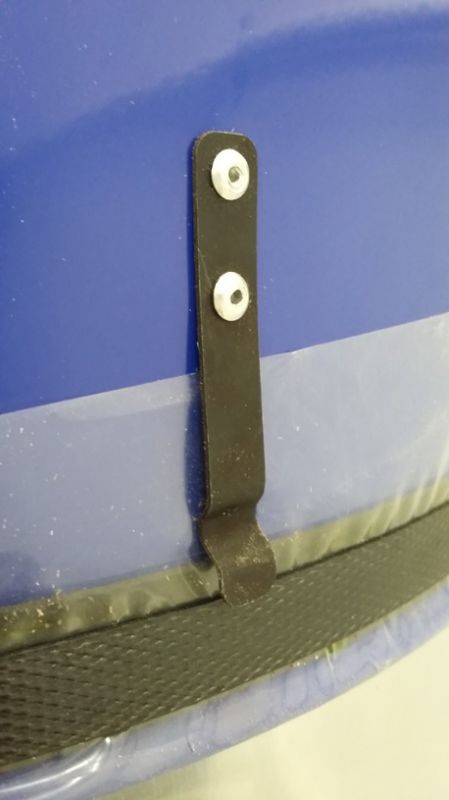

• Drum Bag Clips to make easy work of changing the collection bag
• Rubber Band on the Drum to give a better seal

The standard cloth filtration bag is replaced with a cartridge to increase the filtration performance down to a super fine, 1 micron particle size. The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.

This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range.  The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders.

To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handles after each use, moves the internal paddles which clean the inside of the filter and prevent clogging.

Supplied with transparent collection bag, durable steel fan, NVR switch, wheels, quick release metal straps, Y branch and 1.6m power cable (No plug).

A 16amp fixed electric supply is required to run this machine. We recommend using a 16amp plug.

Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre. This machine is intended for Light Trade use which means it has a maximum continuous running time of 2 hours, after which the motor must be rested and left to cool.

• Motor (induction): 1500w (2hp), 240v
• Flowrate (cubic metres per hour): 2000m3/hour
• Inlet Diameter: 1 x 125mm or 2 x 100mm
• Bag capacity: 148 Litres
• Maximum continuous run time: 2 hours
• Dimensions (WxDxH): 900mm x 560mm x 1950mm
• Weight: 47kg
• Rating: Hobby / Light trade
• Warranty: 5 Years

We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.
