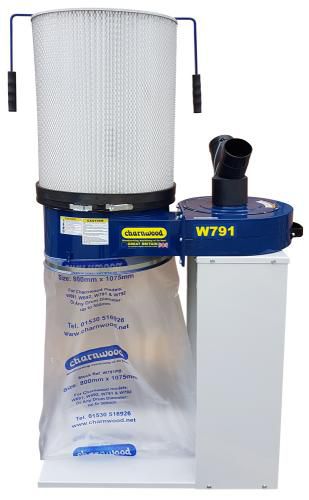

Charnwood W791CF Professional Dust Extractor & Fine Filter Package 1500w, 240v

Charnwood W791CF 2hp Professional Dust Extractor 1500w, 240v with Cartridge Filter Package

A powerful professional dust extractor with ample flow rate to extract from two machines at the same time.

• Quiet Induction Motor
• Up to 8 hours Continual Running
• Super Fine 2 micron Filter
• Transparent Collection Bag
• Wheels Included For Portability

These larger collectors are ideal for locations where the extractor will be cited a long way from the dust source. The higher flowrate also allows a small system of branch lines to be fitted around the workshop to allow extraction from a variety of machines. Maximum recommended total hose length is 7 metres. We now fit as standard a super fine 2 micron filter making the unit suitable even for MDF dust. Maximum recommended total hose length is 7 metres.

The standard cloth filtration bag is replaced with a cartridge filter to increase the filtration performance down to a super fine, 1 micron particle size. The extra deep pleats in the filter material, increase the surface area of the filter so that there is no loss in air flow compared to the original cloth filter.

This allows the extractor to be used for operations which produce very fine dust such as sanding and cutting MDF. The particle size of fine woodworking dust is generally between 2 and 3 microns. Research shows 99% of wood dust, produced by machining softwood, hardwood or MDF, is within that range.  The extractor can still be used with all the normal workshop machines which produce dust and chips, such as: bandsaws, table saws, planers, thicknessers and spindle moulders.

To ensure a long life without any deterioration in performance the filter includes an internal cleaning device. Gently rotating the handles after each use, moves the internal paddles which clean the inside of the filter and prevent clogging.

Supplied with transparent collection bag, durable steel fan, NVR switch, rubber wheels, quick release metal straps and Y branch. A 16 amp, 240v electric supply is required to run this machine.

Hose is not supplied as standard, our 100mm diameter transparent hose is recommended, sold by the metre.

• Motor (Induction): 1500w (2hp)
• Voltage: 240v, 50hz
• Airflow (Without Bag): 2130 m3/hour (1600CFM)
• Max. Static Pressure: 183mmAq (7.2 InH2O)
• Impellor Size: 305mm (12")
• Inlet Dimensions: 1 x 124mm or 2 x 100m
• Bag Capacity: 148 Litres
• Filtration Level: 1 micron
• Noise Level (@3m): 81dB
• Dimensions (WxDxH): 880mm x 550mm x 1920mm
• Weight: 60 Kg
• Assembly Time Required: 60 Minutes (Needs 2 People)
• Rating: Industrial
• Warranty: 5 Years

We also have a large range of accessories available for connecting your dust extractor to the dust producing machinery. Reducers to join the 100mm diameter hose to the smaller diameter outlets usually found on bench top machinery. Hoods to collect dust from machinery with no purpose made collection points.
