Charnwood W813P Floorstanding Lathe and VIPER3R Chuck Package

X
Product Code: CH/W813P-PK1
Brand: Charnwood
Low Stock - Please Call For Availability
Was £778.00 Inc. VAT
Now £679.00!
£565.83 Exc. VAT
✗ COLLECTION
✗ DELIVERY
Please call to check stock availability for larger quantities
Qty
Charnwood

Charnwood W813P - Floorstanding Woodturning Lathe &
VIPER3R Chuck - CH/W813P-PK1


Key Features

Package Deal - Save when compared to buying separate items.

Package consists of:

  • W813 12" x 36" Variable Speed Lathe
  • VIPER3:  4 Jaw Geared Scroll Chuck

W813: An excellent all rounder which makes a very good first lathe. Although the overall design has not changed for many years we have recently given this lathe a make over and uprated many of the components.

  • New 550w (3/4hp) Induction Motor
  • New Toolrest Design
  • New Easy-Operation Camlock Design

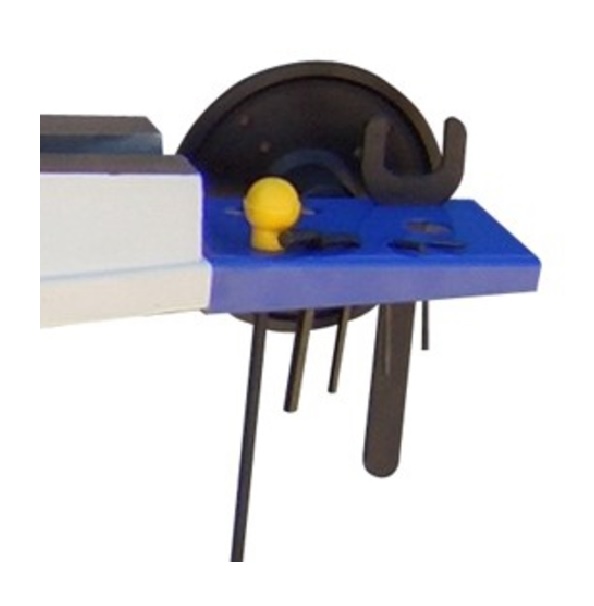

  • New Accessories Holder
  • 12" Bowl Turning Capacity
  • 36" Spindle Turning Capacity
  • Mechanical Variable Speed
  • Digital RPM Speed Display
  • Hollow Head and Tail Stocks
  • Rotating Headstock for Maximum 15" Diameter x 3" Depth Bowls using the Faceplate
  • Sturdy Floorstand with Shelf Included

Cast iron construction, precision machining and great value for money are the key features of this woodturning lathe.

This new version has an upgraded, more powerful, induction motor and a digital speed readout to accurately display the rpm speed of the spindle.

Spindles of up to 12" diameter and 36" in length can be precisely turned over the bed using the cam-lock sliding toolrest. The sliding tail stock also uses a cam-lock for quick adjustments. The rotating headstock design allows for larger diameter work, such as bowl turning, of up to 15" in diameter, to be turned over the front of the machine. Obtaining the correct speed for cutting is no problem with the variable speed controller with 10 locator stops, which operates at the turn of a lever. When using the headstock rotated to the front, the extendable toolrest can be positioned on the left hand side using the extension bed supplied.

Supplied with hollow headstock and tailstock suitable for long hole boring, floorstand, NVR switch, 225mm long toolrest with 25mm shank, 4 prong drive centre 2MT, revolving tail centre 2MT, 6" diameter faceplate, knock out bar, cable and plug.

The optional wheelbase is an excellent addition for anybody who needs to move this lathe around the workshop.



Specification

W813

  • Distance between centres: 900mm (36")
  • Distance over bed: 310mm (12")
  • Motor (Induction): 550w
  • Speed ranges:10 (500 - 2000RPM)
  • Spindle thread size: M33 x 3.5
  • Spindle tapers:2MT
  • Dimensions (WxDxH): 1500mm x 450mm x 1120mm
  • Weight: 82kg
  • Rating: Hobby
  • Warranty: 5 Years

Charnwood Machinery Five Year Guarantee


Specification

VIPER3

  • Direct Mounting Thread M33 x 3.5
  • Chuck Body Diameter: 95mm
  • Standard Jaws Expand from: 550w
  • Standard Jaws Contract from: 69mm to 32mm
  • Weight: 1.9kg
  • Rating: Hobby
  • Warranty 1 Year



Charnwood W813 Owners Manual and Parts List

Product Videos
Items Included
Click For Bigger Image

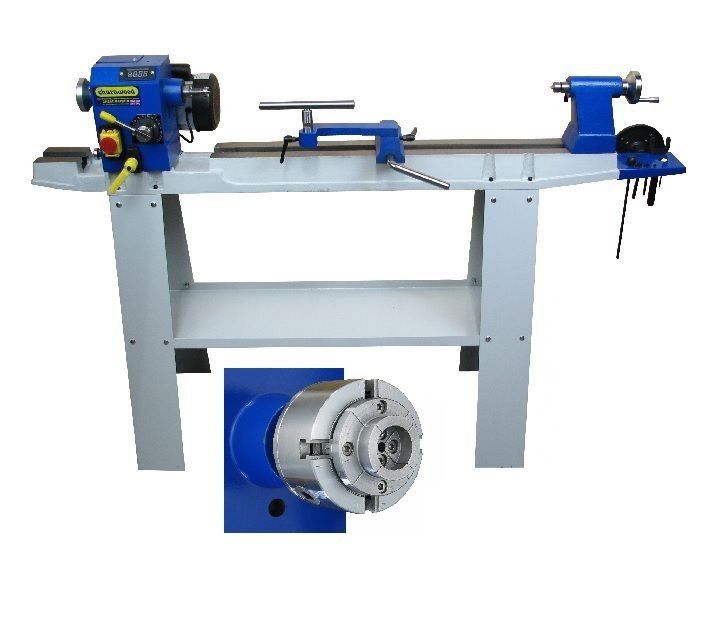

1 X Charnwood W813 Floorstanding Woodturning Lathe
Click For Bigger Image

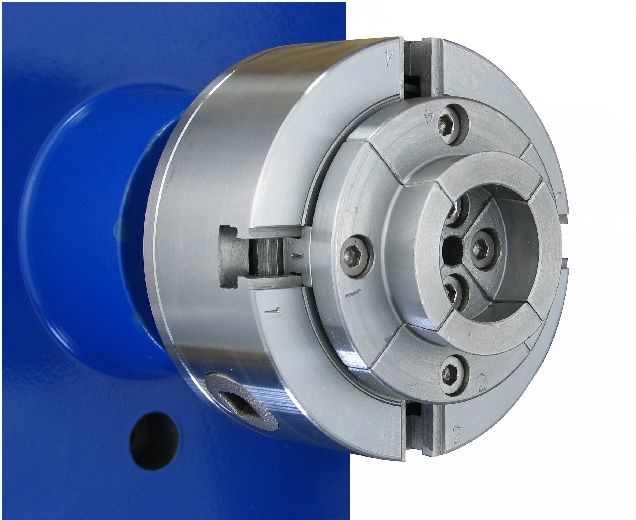

1 X Charnwood VIPER3R 95mm diameter, 4 Jaw Geared Scroll Chuck
