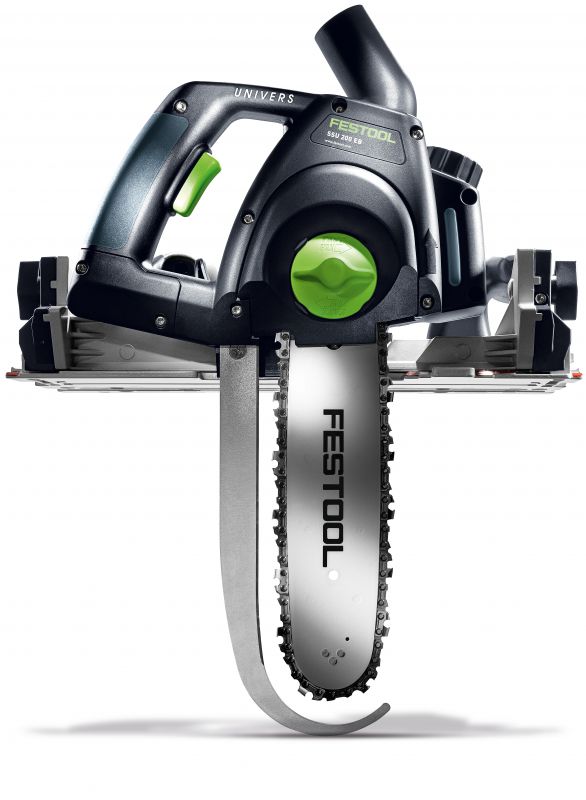

Festool 576564 Sword Saw UNIVERS SSU 200 EB-Plus 240V

Festool 576564 Sword Saw UNIVERS SSU 200 EB-Plus 240V

Replaces item 575981

Small handy machine with 200 mm cutting depth

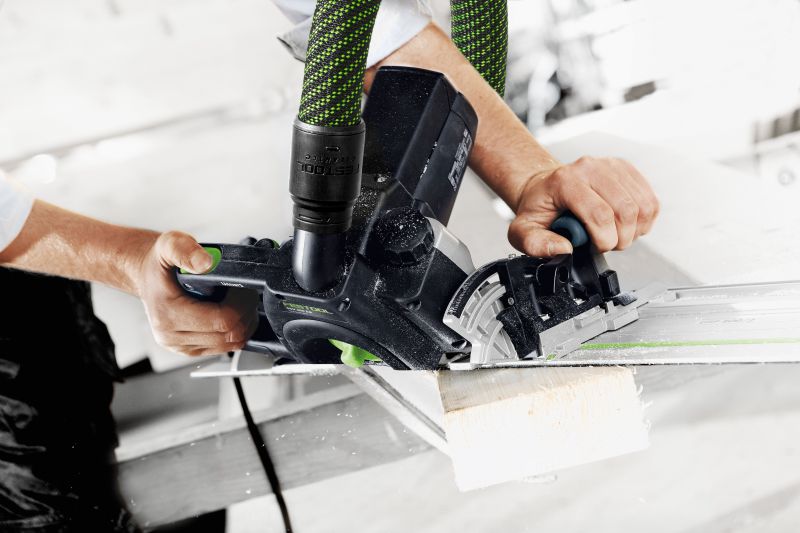

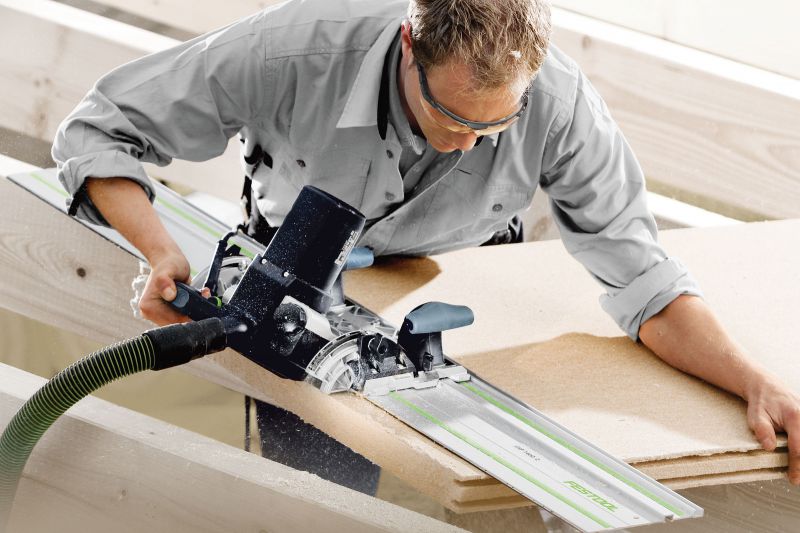

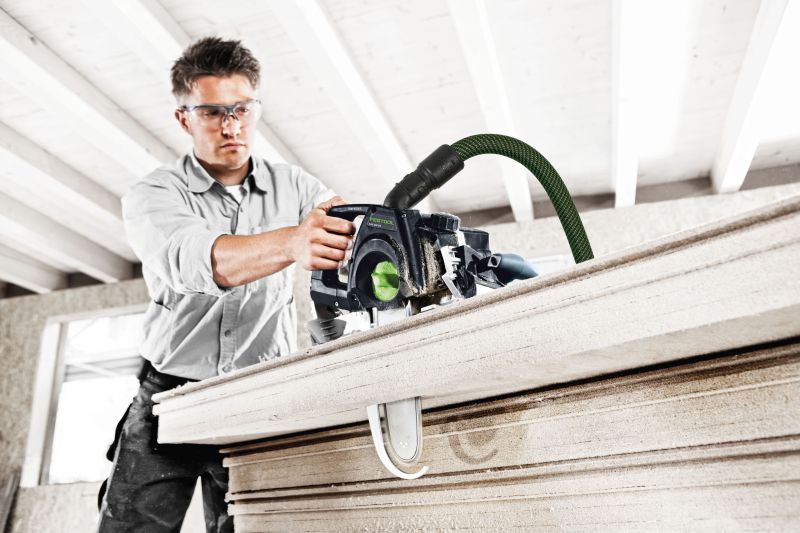

Whether you are working with wood or insulating materials, the Festool UNIVERS SSU 200 sword saw cuts all materials common in construction up to 200 mm thick. The guide rail ensures straight, splinter-free trimming, longitudinal, mitre and compound cutting with ease. The special feature: The Festool UNIVERS weighs just 6.5 kg – for effortless work.

• 200 mm cutting depth and 6.5 kg weight
• Integrated guide slot in the aluminium die cast base plate for accurate cuts using the guide rail
• Wide application range for mitre cuts up to 60°
• Chain changed and tensioned without using tools
• Rotary dust-extraction attachment for connecting an extractor
• Drawing cut for rapid, jolt-free operation and an outstanding cutting quality
• Efficient electronics for constant pressure during sawing
• Different chain cutters for a wide range of cuts

• Cutting pressure-resistant insulating materials such as wooden fibreboards, PUR, polystyrene, etc.

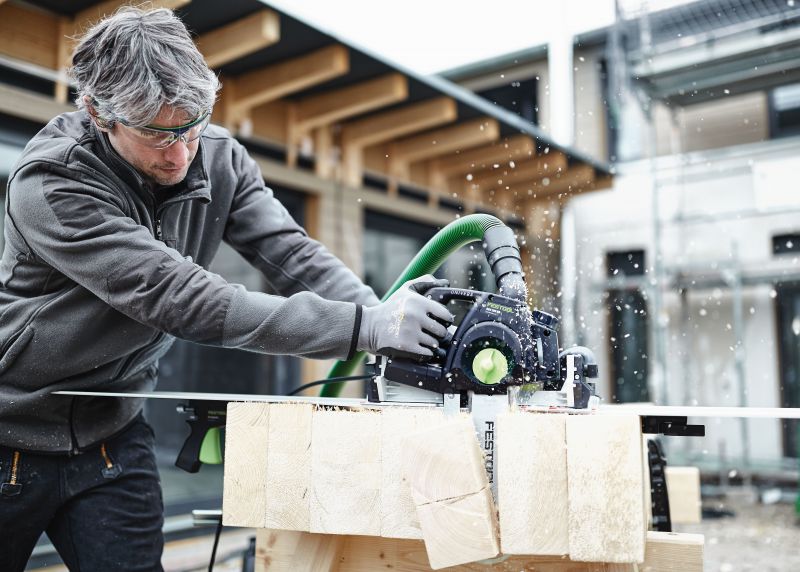

• Chop, mitre, rip and jack-rafter cuts in wood.

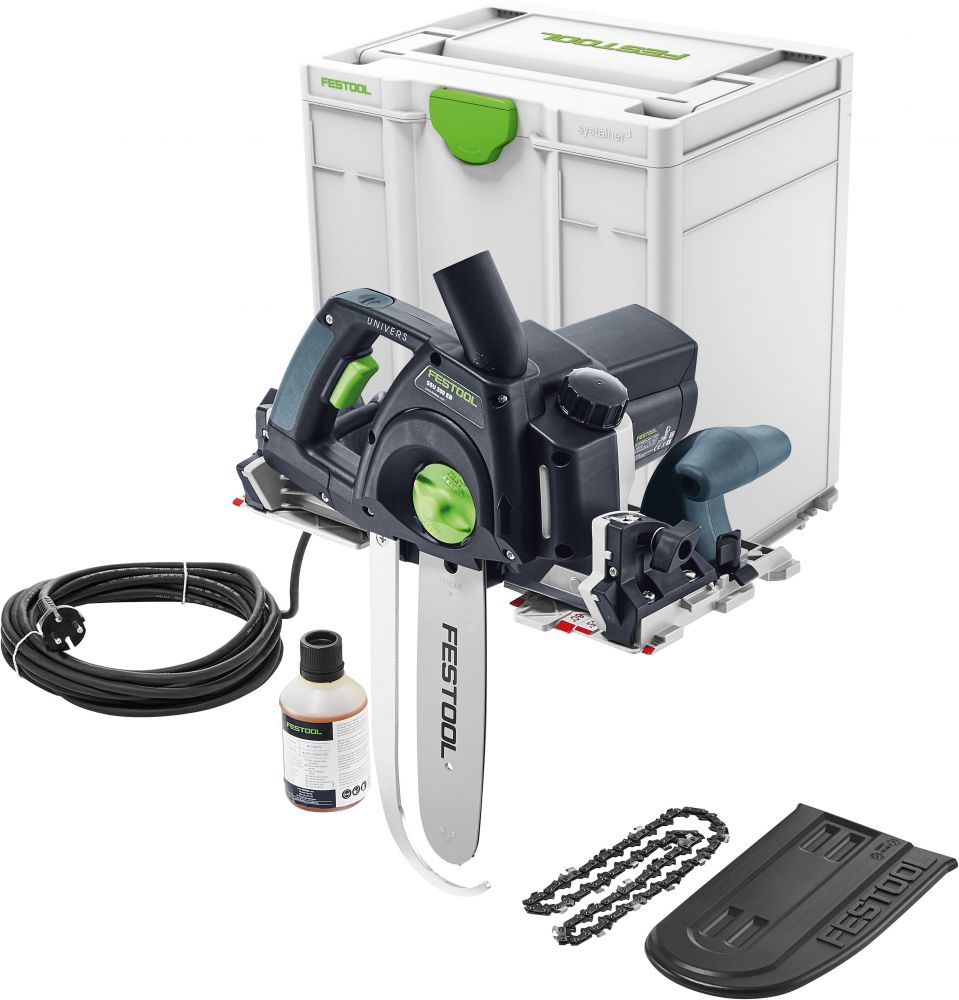

• universal saw chain SC 3/8" 91 U-39E
• chain oil 250 ml
• 7.5 m power cord
• protective cover
• Systainer3

• Power consumption 1600 W
• Idle engine speed 4600 min?¹
• Cutting depth 0°, 90°/45°/60° 200/140/100 mm
• Mitre cuts 0 - 60 °
• Cutting speed (idling) 10.6 m/s
• Blade position 0 - 10 °
• Weight 6.5 kg
• Sawing: Total vibration average, Ah 3.4 m/s²
• Sawing: Uncertainty (noise) K 3 dB
• Sawing: Uncertainty (vibration) K 1.5 m/s²
• Sawing: A-weighted sound pressure level, LpA 92 dB(A)
• Sawing: A-weighted sound power level, LWA 103 dB(A)
