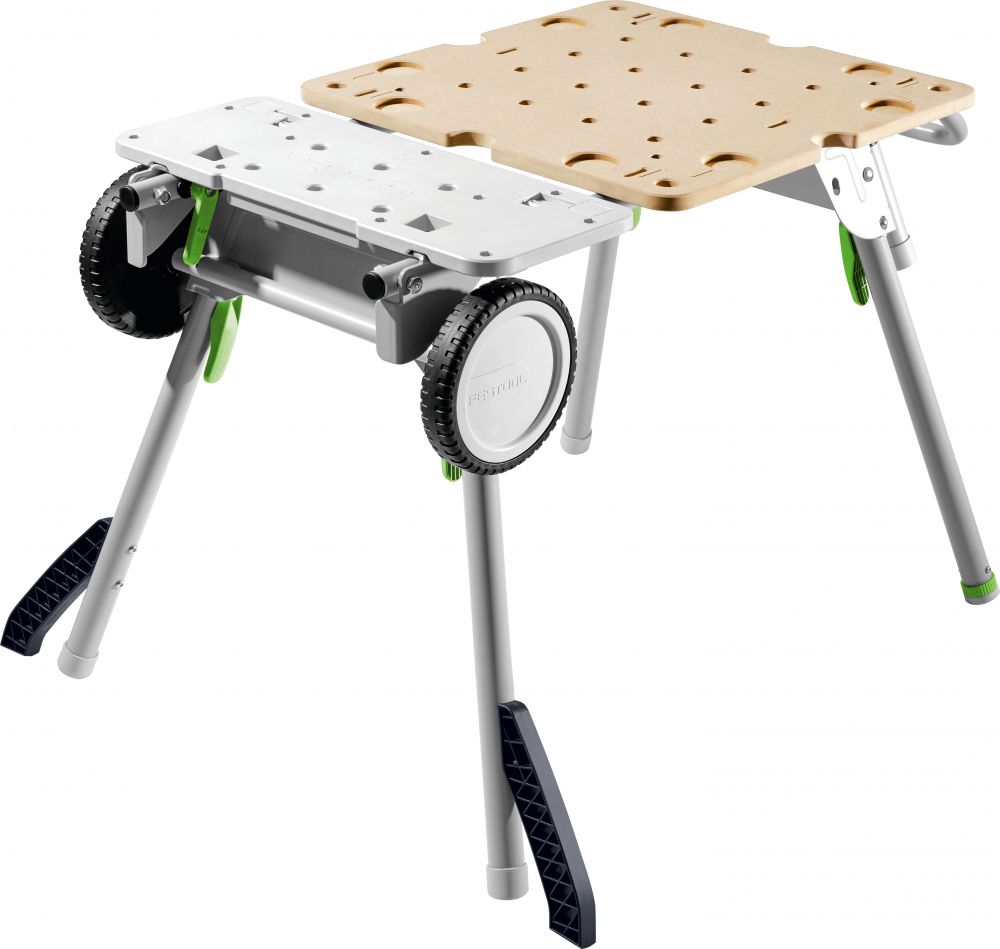

Festool 577001 Underframe UG-CSC-SYS

The UG-CSC-SYS underframe is the ideal 3-in-1 solution for your assembly jobs. It acts as a hand cart for transport from the vehicle to the point of use – allowing you to easily roll an entire tower of Systainers of up to 80 kg to the construction site. The foldaway legs are folded out in an instant, giving you a worktable of 58 x 58 cm in size; a practical alternative to trestles. Workpieces are securely clamped on the surface via the perforated top. However, the underframe demonstrates its full ability in combination with the CSC SYS 50 cordless table saw. This is securely positioned in the holes of the work space – and already you're working at an ergonomic height of 90 cm. The legs simply remain folded in when using the CSC SYS 50 cordless table saw close to the ground, e.g. when laying a floor. The "shovel" that just served as a transport surface for the Systainers is now set up as an ideal support for long workpieces for all rip cuts, cross cuts and angled cuts.

• Versatile: Transport aid, worktable and underframe for the CSC SYS 50 cordless table saw in one
• Resilient: Transport a Systainer tower up to 80 kg. The Systainers engage securely on the base plate. Additional fixing possible with a lashing strap
• Saves space: Folded together, the underframe takes up barely any space in the vehicle
• Practical: The foldaway legs are folded out in an instant. Unevenness in the floor is compensated for by a foot compensation on one of the foldaway legs
• Stable support: The typical Festool hole pattern of the worktop allows secure clamping of workpieces with clamp clips and lever clamps
• A perfect fit: The ideal combination with the CSC SYS 50 cordless table saw. Creates a working height of 90 cm, offers a stable support for long workpieces. The legs remain folded in when working close to the ground (working height 24.5 cm)
• puts the CSC SYS 50 cordless table saw at a working height of 90 cm (with legs folded out)

• Made for mobility. Needs barely any space. In its role as a hand cart, it effortlessly transports not just the CSC SYS 50 cordless table saw but also all your Systainers to the point of use. This saves time, journeys and power. Folded together, it takes up barely any space in the vehicle – so you always have this clever assistant on board!
• A worktable in an instant. A work space of 58 x 58 cm is available to you in an instant; quickly set up thanks to convenient foldaway legs. Workpieces can be securely clamped onto it using a perforated top and clamps. The UG-CSC-SYS underframe is thus an ideal alternative to trestles on the construction site.

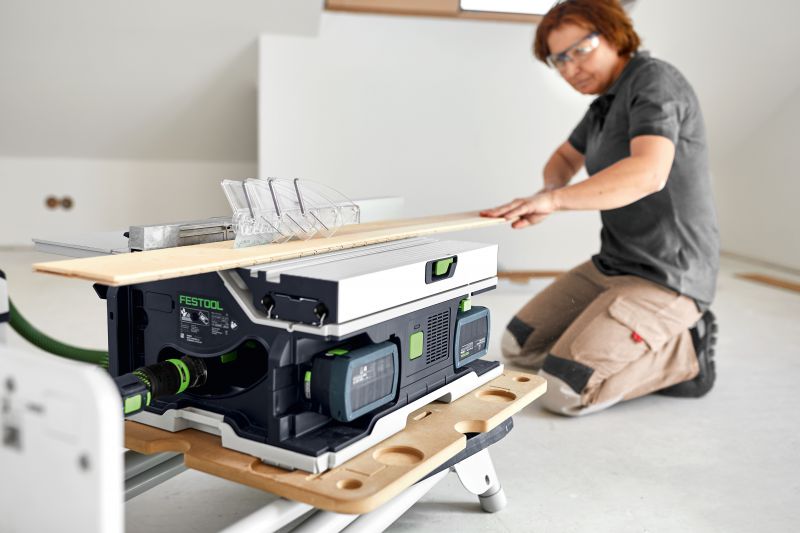

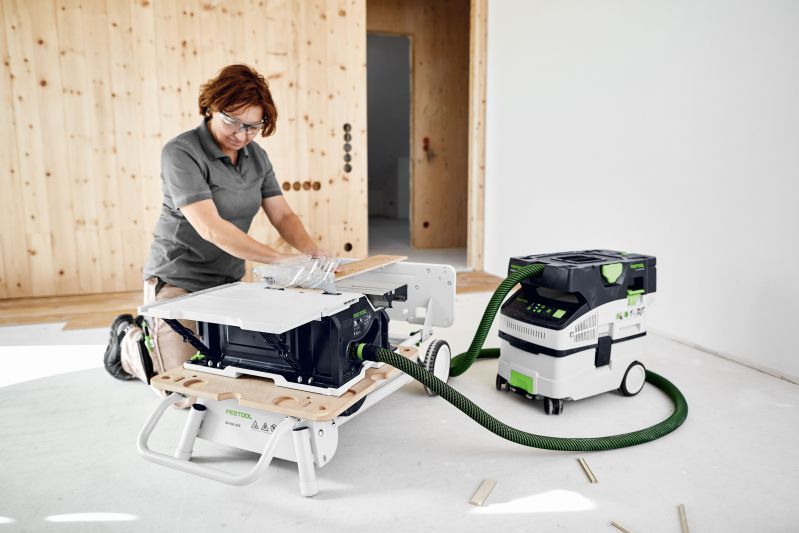

• The perfect pair: Underframe and CSC SYS 50 cordless table saw. The UG-CSC-SYS underframe is ideally tailored to use with the CSC SYS 50 cordless table saw. You position the CSC SYS 50 securely on the worktop via suitable holes – and raise it to an ergonomic working height of 90 cm. The "shovel" of the underframe offers a secure contact surface for rip and cross-cuts (especially for long workpieces).

• Ideal underframe for CSC SYS table saw installation
• Suitable for transporting Systainers in the tower in its role as a hand cart, the blade bears 80 kg
• Suitable as a mobile worktable with a load of 100 kg
