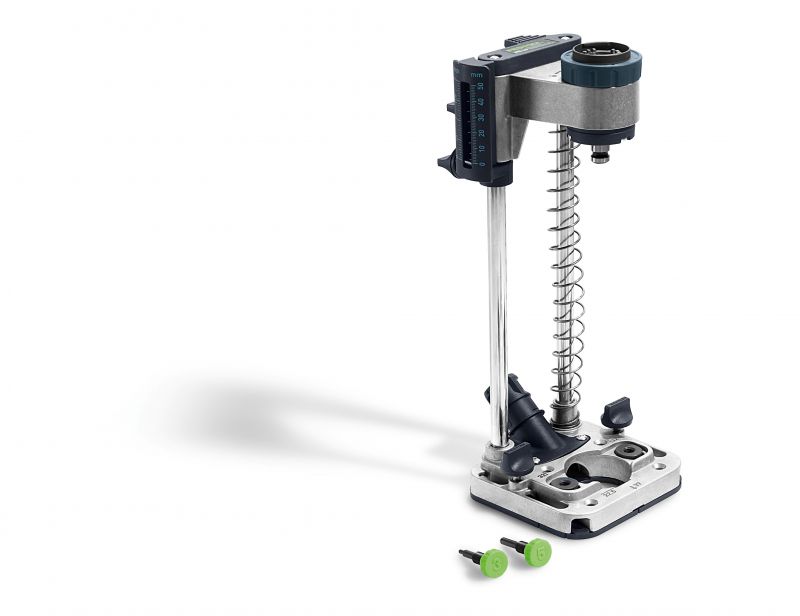

Festool 577970 Mobile Drilling Attachment MB 40

Festool 577970 Mobile Drilling Attachment MB 40

The attachment for straight drilling. Anywhere.

The MB 40 mobile drilling attachment is your companion when precision is required. As a compact drilling aid, it enables you to drill at right angles with pinpoint accuracy and repeat accuracy, no matter where you are working. Versatile stops and exact depth adjustment are available as options, so that you can drill vertical holes, end face holes and a series of holes. For a good view of the drilling point, you can couple the dust extraction directly with the base plate. As a further FastFix attachment, it is ideally suited to your drilling applications in wood, metal and plastic, thus expanding the range of possible uses for your Festool cordless drills.

• Precise: Built to be robust and stable – for exact holes.
• Exact depth adjustment: With zero position and readable drilling depth up to 50 mm. Display in mm and inches.
• Exceptional: With hole series function for holes in the 32-type system.
• Compatible: The tool chuck can be fitted quickly and without tools. The CENTROTEC chuck also enables quick insertion and replacement of drilling tools.Integrated: Chip extraction for extractors from dust class M and hose diameter D 27.

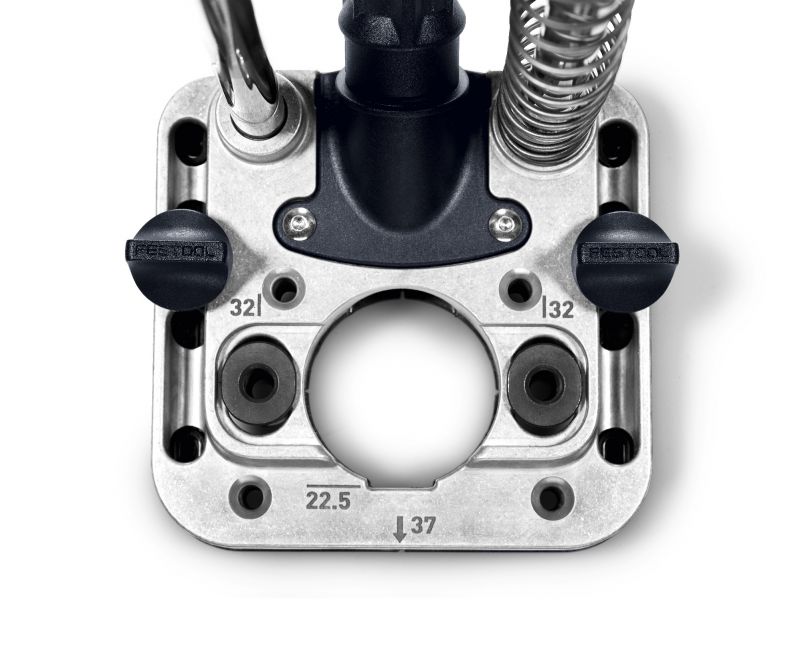

• Easy positioning: Markings on the base plate simplify exact alignment on the workpiece.
• Sturdy: Rubberised base for precise alignment without slipping.

• hole series pin 5 mm
• hole series pin 3 mm

• When precision is required - Do you want holes drilled at right angles with pinpoint accuracy and repeat accuracy? The MB 40 mobile drilling attachment is made for exactly this: Solid and stable construction, with depth adjustment via a scale and a variety of stops and adapters.

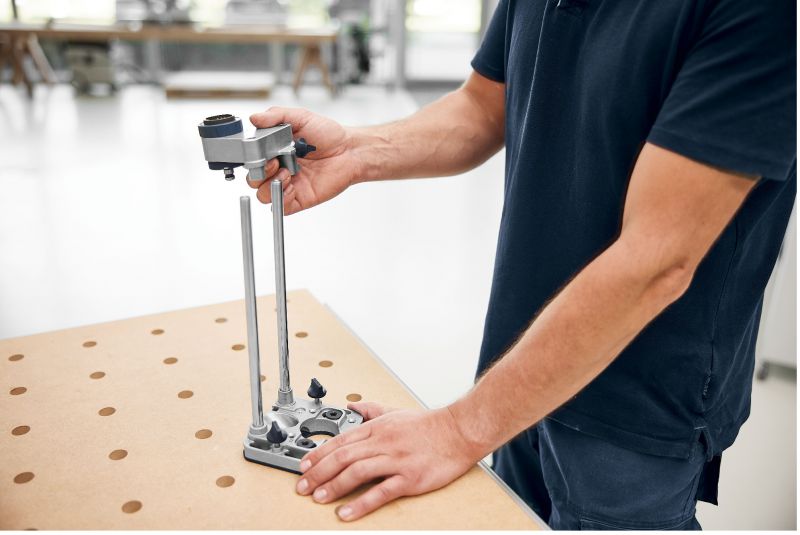

• Ready for use everywhere - The mobile drilling attachment comes to the workpiece and not the other way round. It is handy and compact, so you can easily take it with you wherever you go.

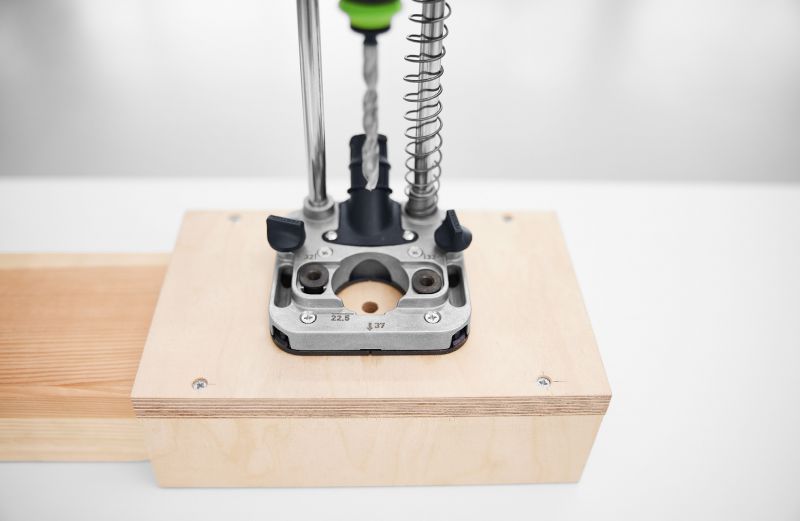

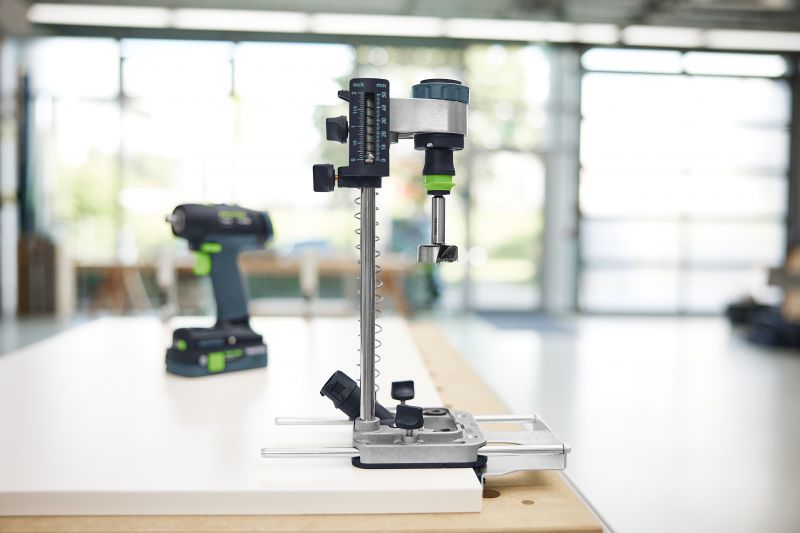

• Suitable for your application - The FastFix attachment, which you can customise to your individual needs: It can be quickly converted for drilling holes in workpiece edges and, here as well, it guarantees you the precision that you need.

• Creating holes at a 90° angle

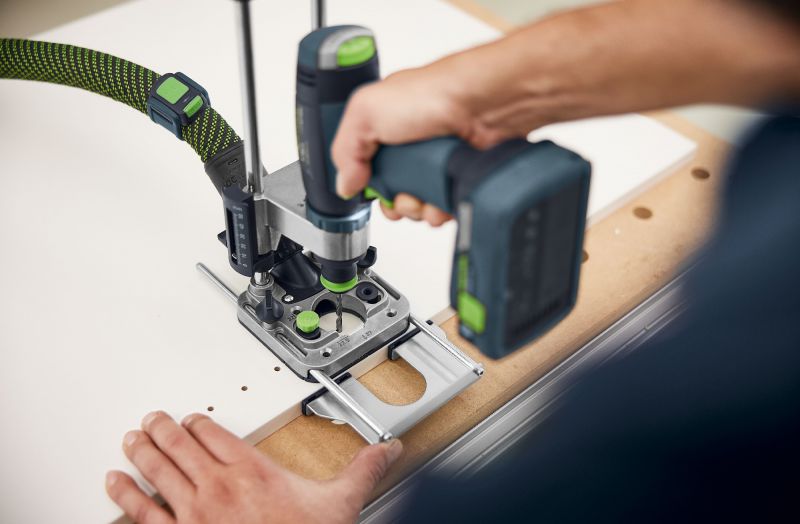

• Drilling series of holes in system 32

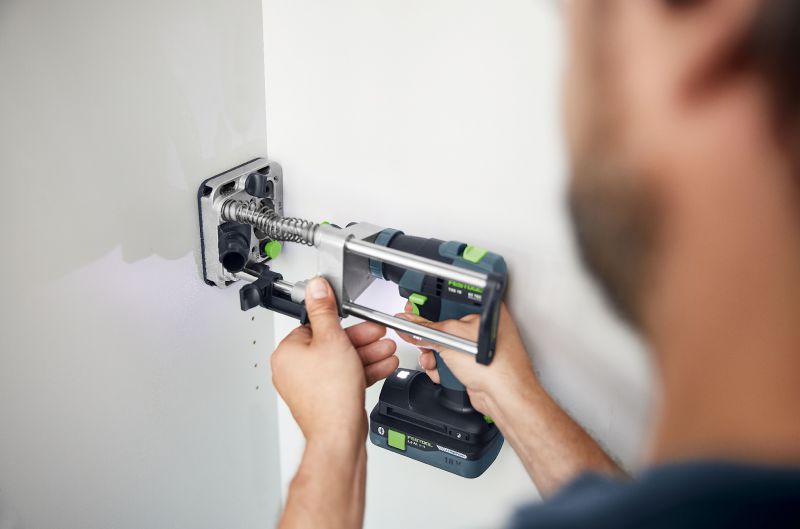

• Holes for fittings such as cupboard hinges
• Holes for shelf support
• Drilling in wood, metal and plastic
• Drilling knot holes
• Assembly work
• Kitchen fitting
• Furniture manufacture

• Holder FastFix;
• Max. drilling diameter for softwood (Forstner drill bit) 40.00 mm;
• Max. drilling diameter for softwood (auger bit) 16.00 mm;
• BASE 110 x 114.00 mm;
• Height 312.00 mm;
• Setting range of depth stop 0.00 - 50.00 mm;
• Max. screw diameter (templates/fixtures) 4.00 mm;
• Stroke with depth stop, incl. spring 187.00 mm;
• Stroke without depth stop, without spring 203.00 mm;
• Dust extraction connection diameter 27 mm;
• Product weight without accessories 1.40 kg
