Holzmann TS250F 254mm Cast Iron Panel Saw with Sliding Table 230v
Product Code: HOL/TS250F-230v
Brand: Holzmann
Stock Available
Delivery typically 3-4 days
£2,459.99 Inc. VAT
£2,049.99 Exc. VAT
✗ COLLECTION
✓ DELIVERY

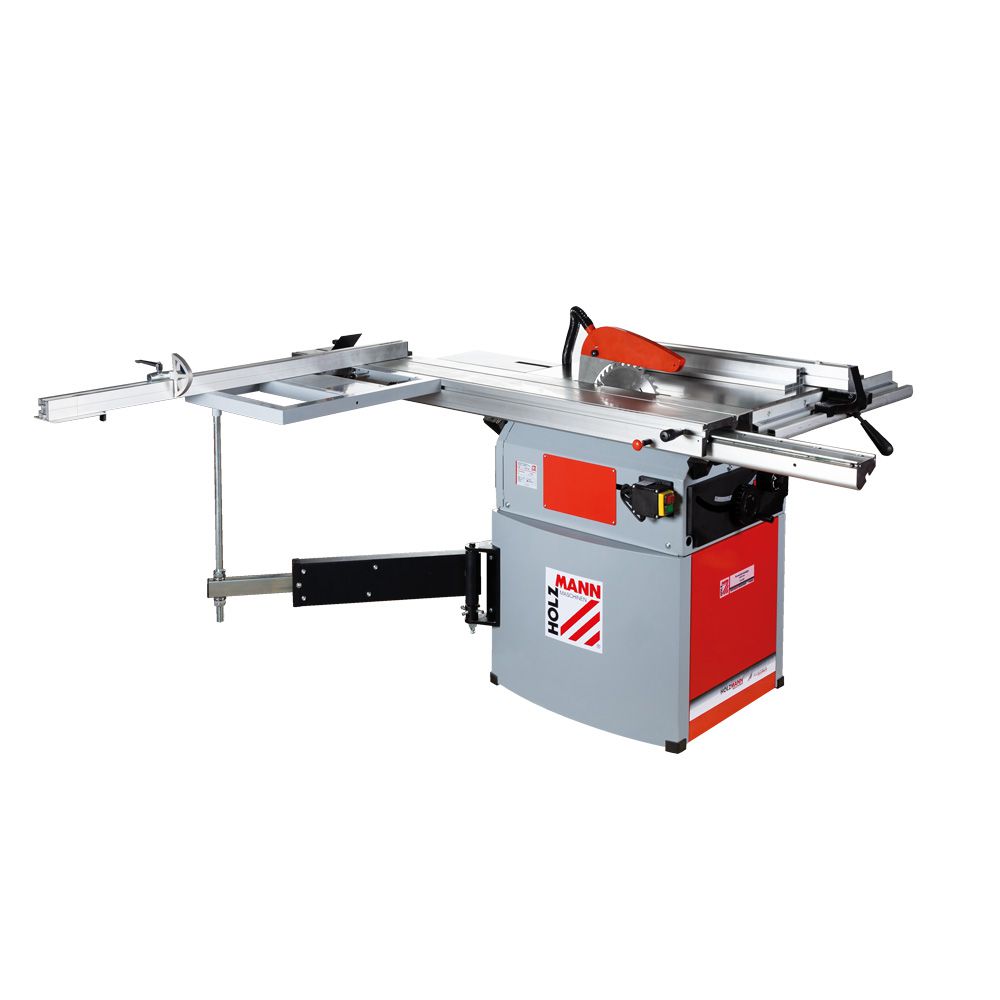

Holzmann TS250F 254mm Cast Iron Panel Saw with Sliding Table 230v
The Holzmann TS250F professional table saw / panel saw package. 16 AMP.
Key Features
- with format slide
- very robust and precise execution
- Professional aluminum format sliding carriage
- large boom supported by swivel arms on the sliding table

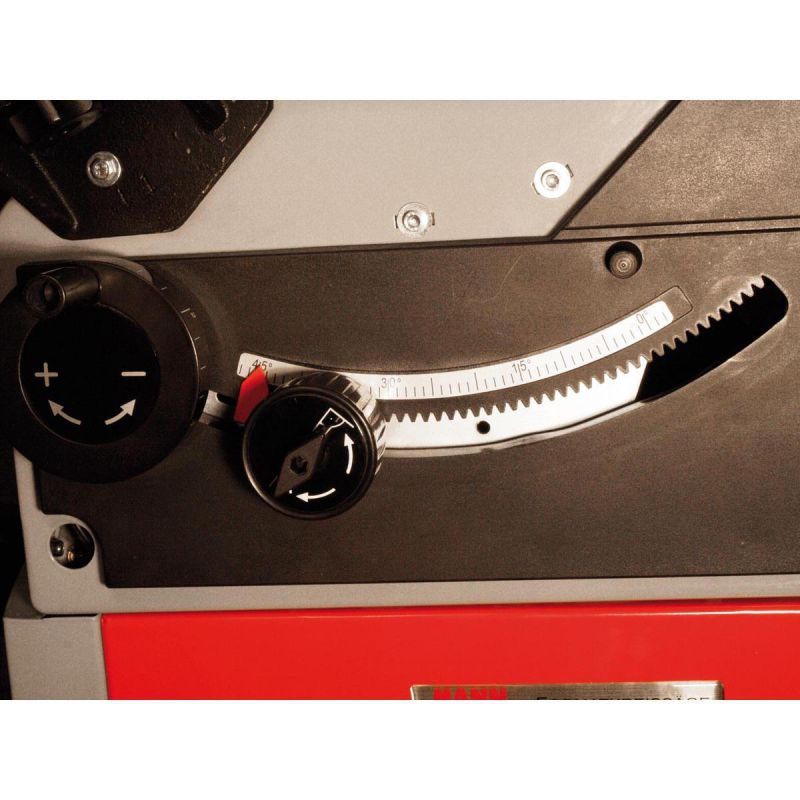

- Absolutely smooth and precise saw blade height and angle adjustment
- Up to 45 ° (left / right) swiveling and extendable crosscut fence (1230 / 2275mm) with a folding fence
- large stable gray cast iron table including table extension

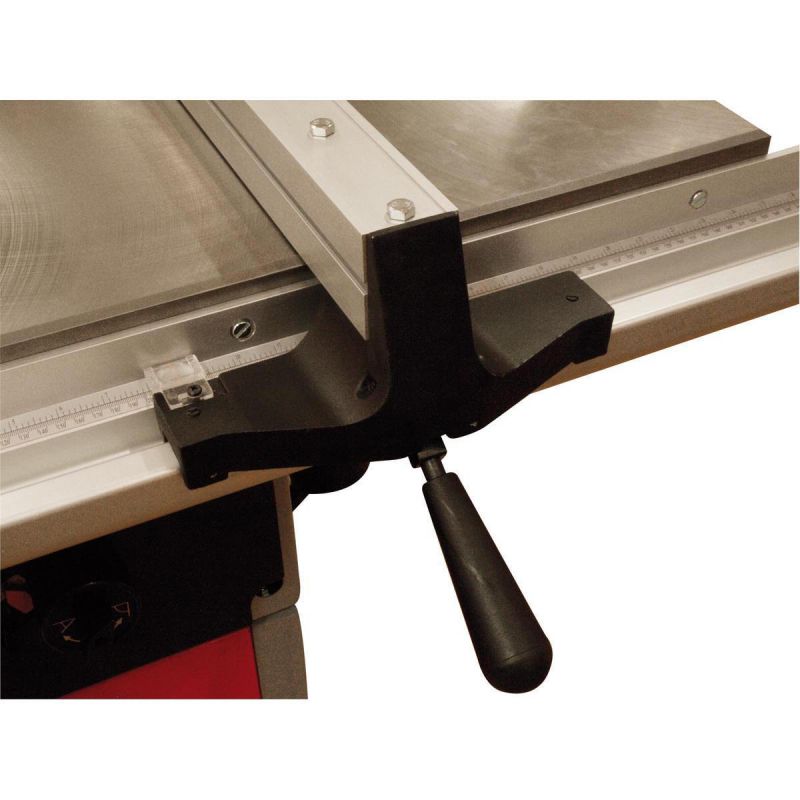

- Rip fence with quick fixing function
- Saw blade inclination (90-45 °)
- 83 x 590mm depth/width of cut
- 1.6m integral sliding table
- sliding table carriage
- telescopic arm
- cast iron table
- table width extension
- no scoring unit
- 2100W (S1) motor
- 230v
- No scoring unit on this machine
- 16 amp supply required with 'C' or 'D' rated breaker
Items included
- HM circular saw blade Ø254x30x3 36 teeth
- format sliding table
- outrigger table
- table extension
- extendable crosscut fence including folding fence
- rip fence
- trimming shoe
Technical details
- Motor power S6 in W 2900
- Motor power S1 in W 2100
- tension 230V / 50Hz
- Table size in mm 800 x 350
- Table height in mm 900
- Extraction connection in mm Ø 100 (Ø30)
- Format sliding table in mm 1650 x 250
- Outrigger table in mm 595 x 460
- Table extension in mm 405 x 210
- Table extension in mm 800 x 320
- Installation dimension in mm 2180 (-3225) x 2930 x 1150
- Max.cutting height 90 ° in mm 80
- max.trimming length in mm 1250
- max.cutting height 45 ° in mm 50
- Cutting width at the rip fence in mm 640
- Saw blade (/ hole) in mm 254 (/ 30)
- Saw blade speed in min-1 4000
- Sound power level in dB (A) 95.7
- Sound pressure level in dB (A) 86.5
- Net weight in kg 190
- Gross weight in kg 233
- Packaging height in mm 1,035
- Packaging width in mm 760
- Packaging length in mm 970
